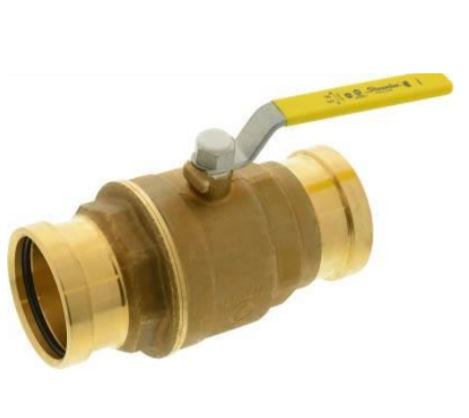

Mueller 107-730PV Streamline 3-in Press Ball Valve

Product Description

The Mueller 107-730PV is a three-inch press ball valve designed for both plumbing and mechanical applications. This valve is compatible with ASTM B88 hard-drawn copper tubes and utilizes press x press connections. It is constructed with lead-free brass that ensures safe usage for potable water systems.

• Lead-free brass construction for safe use
• Press x Press connections for easy installation
• Compatible with common pressing tools

Product Highlights

This ball valve features a double o-ring design that provides superior sealing capabilities, suitable for various applications including hydronic heating, chilled water, and compressed air systems.

Product Information

Standard Information

• Brand: Mueller
• MPN: 107-730PV

Technical Specifications

• Body Material: Lead-Free Forged Brass (CW509L)
• Ball Material: Chrome-plated Lead-Free forged brass (CW510L)
• Nominal Size: 3 in
• Temperature Range: 0 to 230 deg F
• Working Pressure: 200 psi CWP max
• Application: Potable water, hydronic heating with glycol, chilled water, compressed air (200 psi max)
• O-rings: EPDM
• Anti-Friction Washer: PTFE
