Mte RLW-002103 Line Reactor 21 A (3-Phase)

Product Description

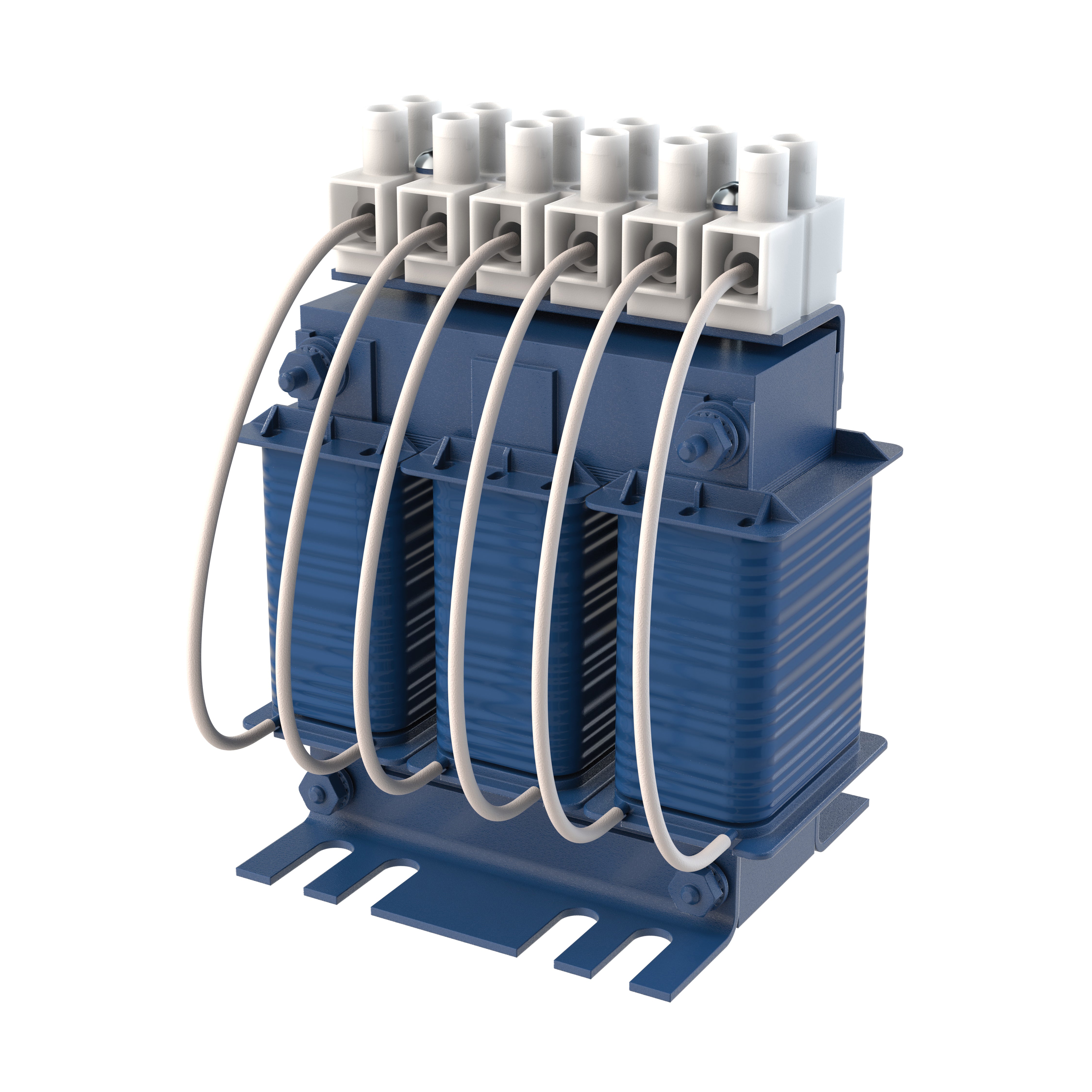

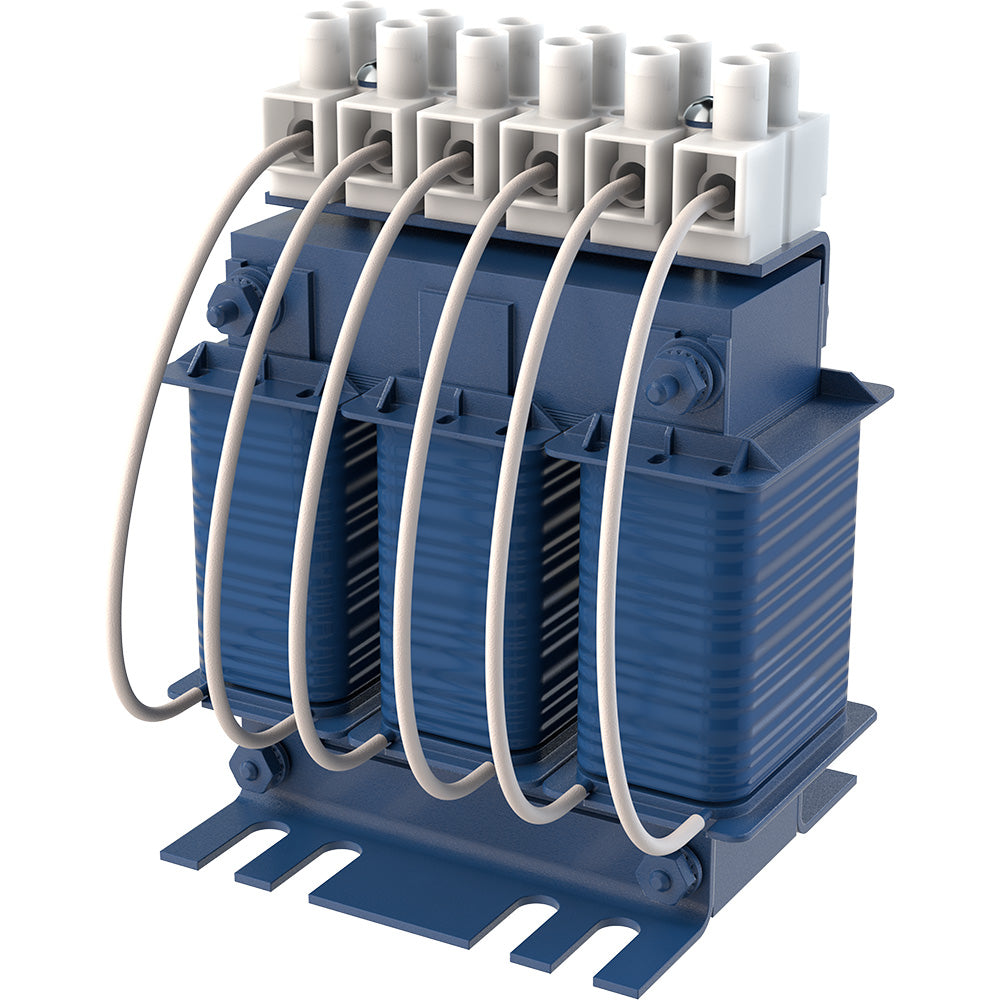

Mte RLW-002103 is a three-phase line/load reactor rated 21 A with 1.1 mH inductance, designed for power conditioning and transient protection in motor drive and rectifier applications. The open, epoxy-impregnated unit supports 208 to 690 V AC operation and mounts to a surface with terminal block connections. It is RoHS and REACH compliant and carries CE and UL approvals.

• Three-phase open reactor rated 21 A, inductance 1.1 mH, suitable for 208–690 V AC and 50–60 Hz
• Surface mounting with terminal block connections; epoxy impregnated to reduce audible noise and improve moisture resistance
• Designed for line-side or load-side installation to reduce harmonic distortion, nuisance tripping, and long-lead effects

Product Highlights

Three-phase, 21 A line/load reactor; 1.1 mH inductance; 208–690 V AC; epoxy impregnated; terminal block; RoHS, REACH, CE, UL

Product Information

Standard Information

• Brand: MTE
• Manufacturer Part Number: RLW-002103

Technical Specifications

• Manufacturer: MTE
• MPN: RLW-002103
• Series: RLW
• Product Type: Line/load reactor
• Phase: 3
• Current Rating: 21 A
• Inductance: 1.1 mH
• Voltage Range: 208-690 V AC
• Frequency: 50-60 Hz
• Enclosure Type: Open
• Terminals: Terminal block
• Mounting Type: Surface mount
• Impedance: 3% or 5%
• Approvals: CE; UL; cUL; cULus; UL 506; UL 508A; CSA 22.2 #66-1988
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Net Weight: 7.2 lbs
• Gross Weight: 8.25 lbs
• Dimensions (H x W x D): 6.1 in x 6 in x 2.9 in
