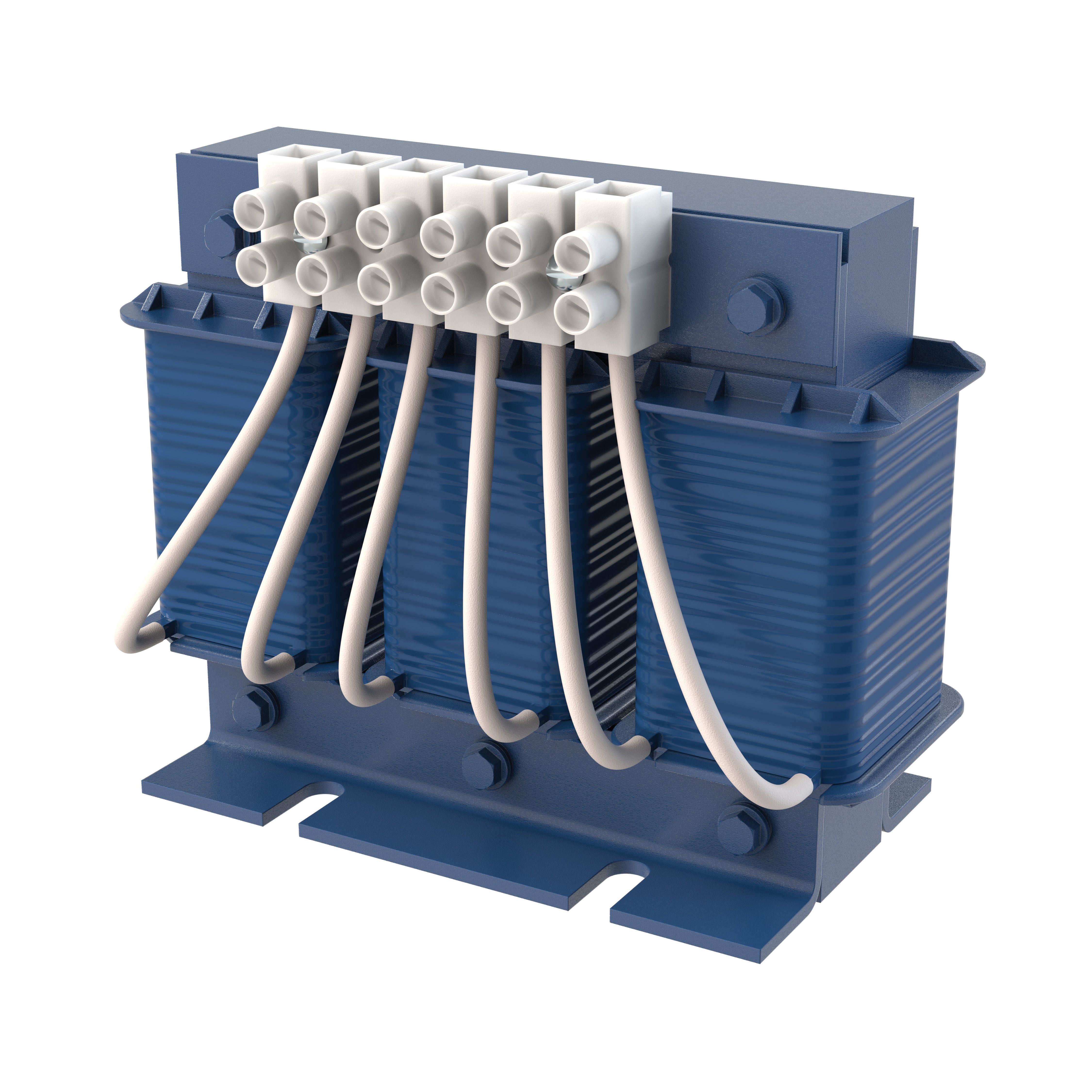

MTE RL-02502 Line/Load Reactor - 25A, 1.2mH, 208-690V

Product Description

The MTE RL-02502 is a reliable line/load reactor ideal for reducing harmonic distortion in three-phase applications. This reactor operates effectively at a current rating of twenty-five amps and supports a voltage range from two hundred eight to six hundred ninety volts. Its inductance is measured at one point two millihenries and it is specifically designed to enhance the performance of electrical systems.

• Reduces line side harmonic distortion to 30-35%
• Supports surface mounting with an open-type design
• Features line/load interchangeability without derating

Product Highlights

This reactor enhances the stability of motor performance and improves overall system efficiency by minimizing audible noise and operating temperature.

Product Information

Standard Information

• Brand: MTE
• Model: RL-02502

Technical Specifications

• Amperage Rating: 25 A
• Enclosure Type: Open
• Horsepower: 5 to 30 hp, 3 to 10 hp
• Inductance: 1.2 mH
• Voltage Rating: 208 to 690 VAC
• Heat Loss: 52 W
• Weight: 14 lbs
• Dimensions: Depth 3.4 in, Height 5.8 in, Width 7.1 in
• Warranty: 5 Years
