Mte RL-02501 Line Reactor 25A 0.500mH

Product Description

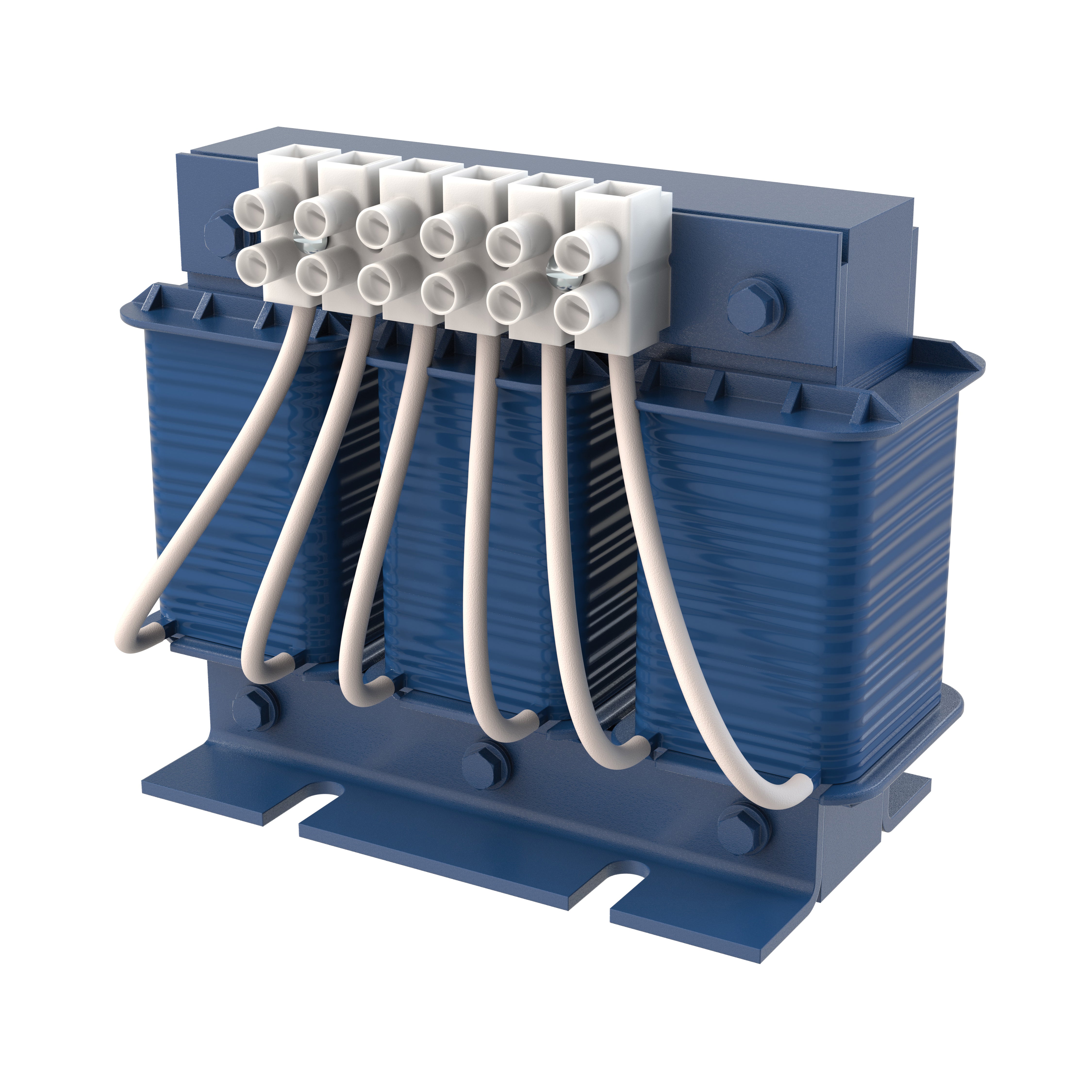

The MTE RL-02501 line reactor protects motors from long lead effects and reduces output voltage dv/dt. It virtually eliminates nuisance tripping and extends semiconductor life. This reactor reduces harmonic distortion and surge currents, lowering motor temperature and audible noise, while improving true power factor. It is a 25A, 0.500mH, 3PH open reactor.

• Protects motors from long lead effects
• Reduces output voltage dv/dt
• Virtually eliminates nuisance tripping

Product Highlights

This line reactor enhances power quality, productivity, and provides users with complete peace of mind.

Product Information

Standard Information

• Brand: MTE
• Manufacturer Part Number: RL-02501

Technical Specifications

• Manufacturer Part Number: RL-02501
• Manufacturer: MTE
• Product Series: RL
• Family Series: MTE Line Reactors, RL Series
• Description: Reactor, 25A, 0.500mH, 3PH, Open 25 AMPS/0.5 mH
• Phase: 3
• Enclosed: No
• Current Rating: 25 A
• Inductance: 0.0005 H
• Terminals: Terminal Block
• Mounting: Surface
• Approvals: CE, CSA, UL, UR
• Horsepower: 5 to 7-1/2 hp, 1-1/2 to 5 hp
• Impedance: 3 and 5 %

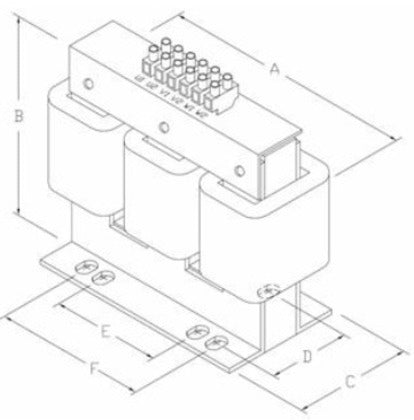

• Depth: 3.4 in
• Height: 5.7 in
• Width: 7.1 in
• Manufacturer Name: MTE Corporation
• UNSPSC: 39121015
• Volts AC Range: 208 - 690
