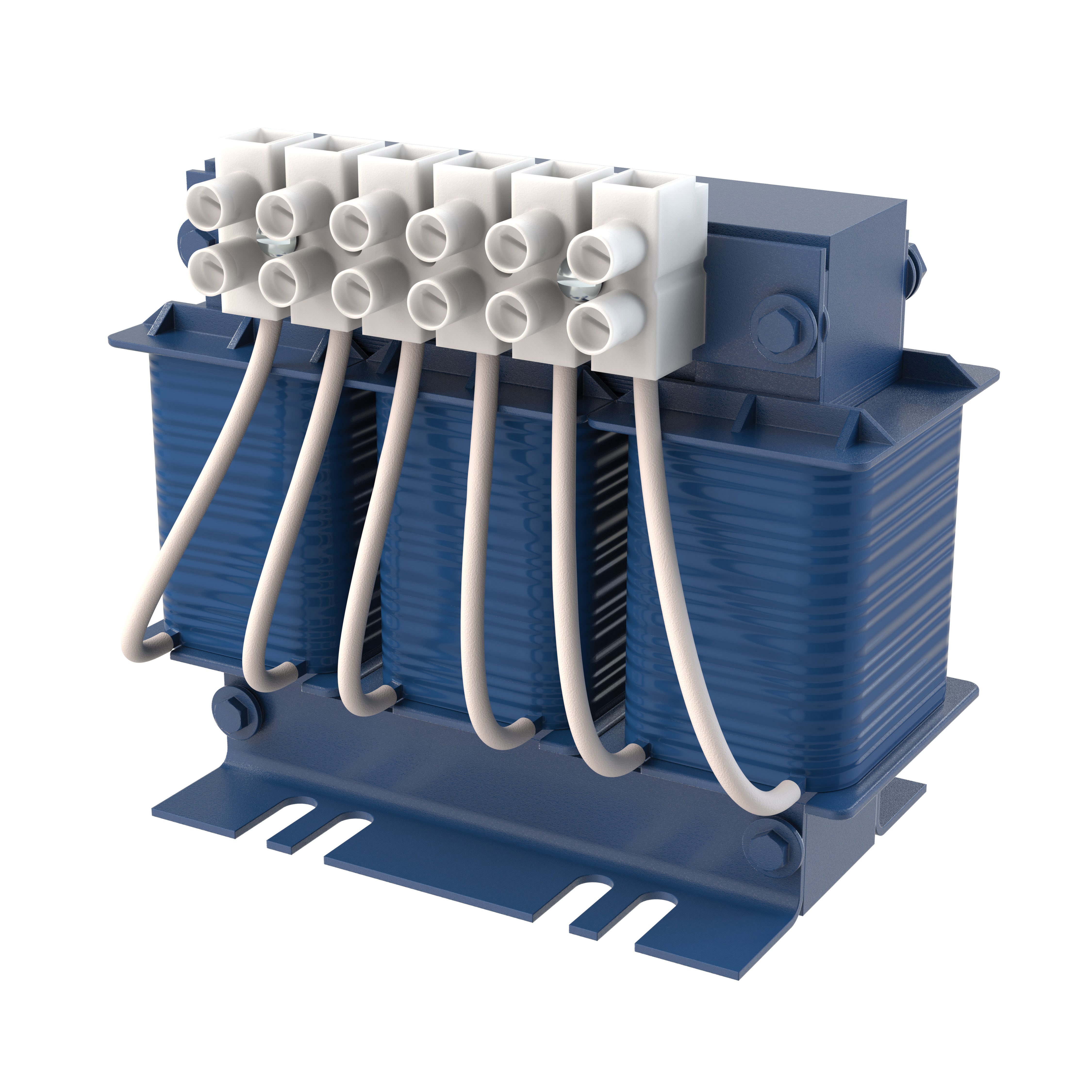

MTE RL-01802 Line/Load Reactor - 18A, 1.5mH

Product Description

The MTE RL-01802 is a line/load reactor suitable for use with variable frequency drives and sensitive equipment. It operates within a voltage range of two hundred eight to six hundred ninety VAC, with a capacity of eighteen amps. This three-phase reactor supports power ratings from three to twenty horsepower, and one and a half to two horsepower in single-phase applications.

• Continuous overload capacity of 150%
• Interchangeable for line/load without derating
• Reduces line side harmonic distortion between thirty and thirty-five percent

Product Highlights

The reactor is designed for surface mounting, featuring an open chassis. The dimensions are five point one inches in height, five point nine inches in width, and three point five inches in depth. The reactor weighs approximately twelve pounds and has an inductance of one point five millihenries.

Product Information

Standard Information

• Brand: MTE
• Model: RL-01802

Technical Specifications

• Series: RL Series
• Voltage Rating: 208 to 690 VAC
• Amperage Rating: 18 A
• Horsepower: 3 to 20 hp, 1-1/2 to 2 hp
• Phase: Three Phase
• Height: 5.1 inches
• Width: 5.9 inches
• Depth: 3.5 inches
• Enclosure Type: Open
• Mounting Type: Surface
• Chassis Weight: 12 lbs
• Inductance: 1.5 mH
• Heat Loss: 43 W
• Minimum Ambient Temperature: -0°C
• Maximum Ambient Temperature: 50°C
