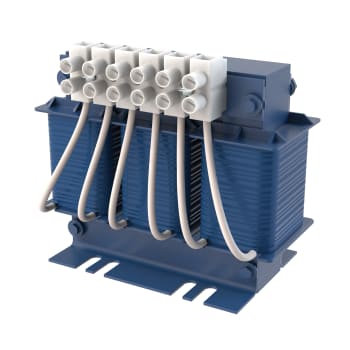

MTE RL-00402 Line/Load Reactor 208 to 690 VAC

Product Description

The MTE RL-00402 is a line/load reactor suitable for use with voltages from two hundred eight to six hundred ninety VAC. It works with both single-phase and three-phase systems. This reactor is rated for four amps and provides an inductance of six point five millihenries with impedance configurations of two, three, and five percent. It is ideal for applications ranging from one-fourth horsepower to three horsepower, depending on phase and voltage.

• Reduces line side harmonic distortion to thirty to thirty-five percent.
• Minimizes load side dv/dt rate and motor peak terminal voltage.
• Enhances waveform integrity for improved motor performance.

Product Highlights

The open-style enclosure allows for surface mounting in tight spaces. This reactor features a continuous overload capacity of one hundred fifty percent and offers line/load interchangeability without derating.

Product Information

Standard Information

• Brand: MTE
• Series: RL Series

Technical Specifications

• Voltage Rating: 208 to 690 VAC
• Amperage Rating: 4 A
• Horsepower: 1/4 to 3 hp
• Phase: 1 or 3
• Inductance: 6.5 mH
• Impedance: 2, 3, and 5 %
• Height: 4 in
• Width: 4.2 in
• Depth: 2.6 in
• Enclosure Type: Open
• Mounting Type: Surface
