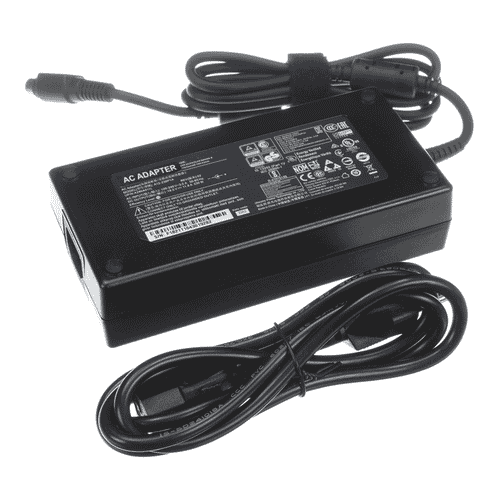

Msi s93-0409180-d04 230W External Power Supply Adapter

Product Description

The MSI s93-0409180-d04 is an external AC-DC power supply adapter rated at 230 watts output, designed for high-demand MSI computing systems. It accepts a wide input voltage range of 90 to 265 volts AC, making it compatible with both domestic and international power standards. Output is 19.5 volts DC at up to 11.8 amps. The unit is manufactured by Delta (model ADP-230EB TH) and connects via a 4-pin plug. It is a direct OEM replacement part for technicians servicing supported MSI hardware platforms.

This adapter is specified for use with the MSI MS-1781 system. The wide input voltage range suits installations where line voltage consistency cannot be guaranteed. The external form factor keeps heat load outside the chassis, which is relevant in dense or thermally constrained service environments. Installation and replacement are handled by qualified computer hardware technicians or authorized MSI service personnel.

Key Features

• 230W continuous output supports high-performance MSI system power requirements
• Wide input range of 90 to 265 volts AC accommodates varying power environments
• 19.5V DC output at 11.8A delivered through a 4-pin plug connector
• Manufactured by Delta Electronics (ADP-230EB TH) to OEM specification
• External adapter design isolates heat generation from the host chassis

Compatibility

Specified for use with the MSI MS-1781 system as an OEM replacement power adapter.

Installation Notes

Replacement should be performed by a qualified technician familiar with MSI hardware. Power down and disconnect the host system completely before removing or installing the adapter. Verify output voltage and connector type match system requirements before powering on. Inspect the cable and connector for damage prior to installation.

Technical Specifications

• Output Power: 230W
• Input Voltage: 90 to 265 volts AC
• Output Voltage: 19.5 volts DC
• Output Current: 11.8 amps
• Connector Type: 4-pin plug
• OEM Manufacturer: Delta Electronics
• OEM Model: ADP-230EB TH
• Adapter Type: External AC-DC

Standard Information

• Brand: MSI
• Manufacturer Part Number: s93-0409180-d04
