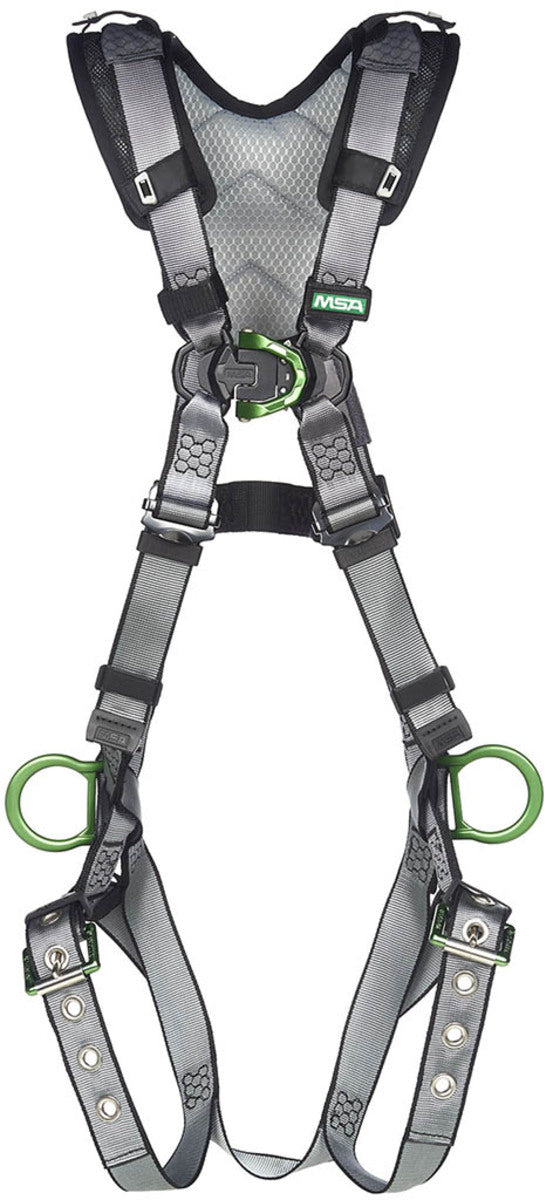

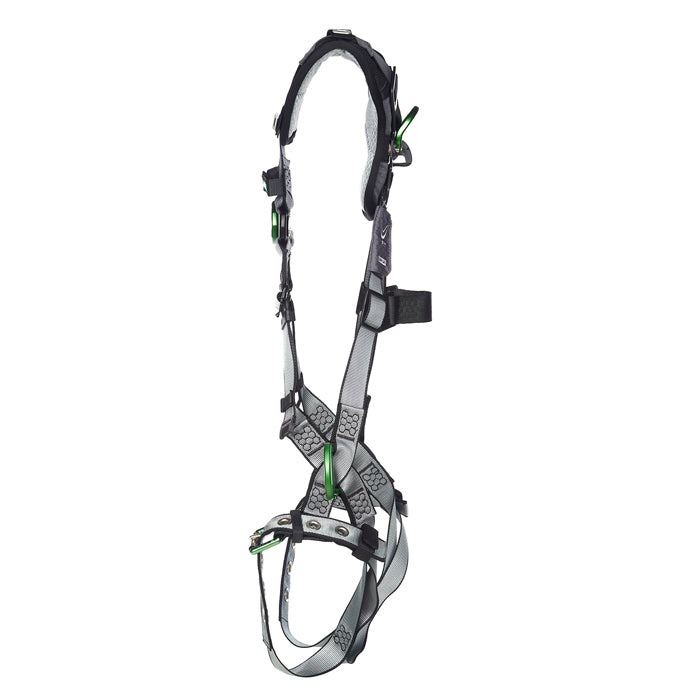

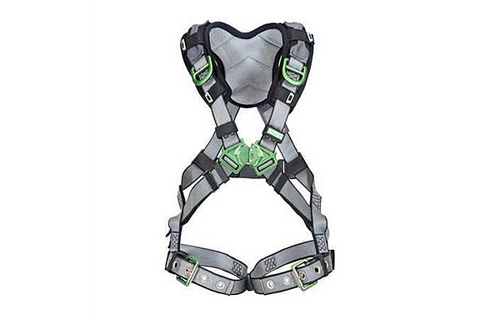

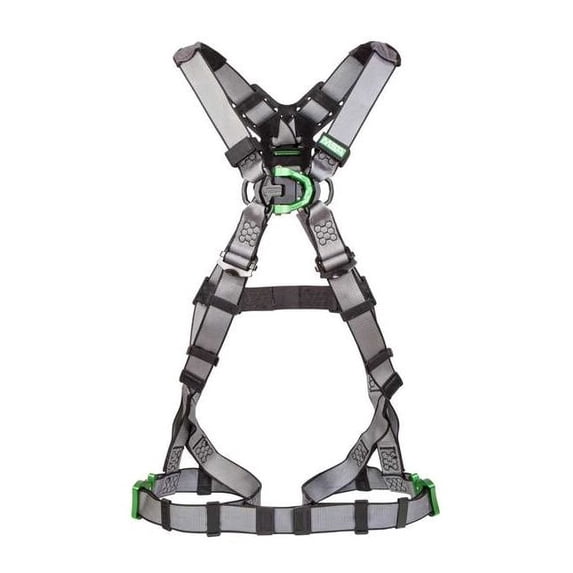

Msa Saftey 10194897 V-Fit™ Safety Harness Standard Back, Chest & Hip D-Rings

Product Description

The MSA SAFTEY 10194897 V-FIT™ Safety Harness features back, chest, and hip D-rings and tongue buckle leg straps, with shoulder padding. The RaceFLEX™ buckle eliminates bulky chest straps for a comfortable fit. Its athletic cut improves upper torso movement, while soft shoulder padding reduces pressure points. Includes lanyard keepers and a PFL tunnel.

• Patent-pending RaceFLEX™ buckle eliminates bulky chest straps for a close and comfortable fit.
• Athletic cut contours to the body, improving upper torso movement.
• Soft shoulder padding helps eliminate pressure points and chafing for all-day comfort.

Product Highlights

The V-FIT harness allows focus on the job with its comfortable fit and enhanced mobility, suitable for climbing and positioning applications.

Product Information

Standard Information

• Brand: MSA SAFTEY
• Manufacturer Part Number: 10194897
• Country of Origin: Mexico

Technical Specifications

• Approvals / Standards: ANSI/ASSP Z359.11-2021 CSA Z259.10
• Hardware Material: ALUMINUM
• Harness Belt Included: NO
• Harness Chest Connection Material: ALUMINUM
• Harness Chest Connection Type: QUICK-CONNECT
• Harness D-Ring Location(s): BACK CHEST HIPS
• Harness D-Ring Material: Stainless Steel
• Harness Lanyard Keepers Included: YES
• Harness Leg Connection Material: ALUMINUM
• Harness Leg Connection Type: TONGUE-BUCKLE
• Harness Number of D-Rings: 4
• Harness PFL Tunnel Included: YES
• Harness Padding Locations: SHOULDER
• Harness Saddle: NONE
• Harness Safety Straps Included: NO
• Harness Style: VEST
• Harness Torso Adjustment: NO
• Harness Webbing Material: POLYESTER
• RFID: YES
• Weight Capacity: 400 lb
• Meets ANSI: Z359.11, OSHA and CSA Z259.10
• Applications: Working at Heights
• Product Type: Harness
• Trade Name: V-FIT™
• Weight Limit: 400 lbs
• Harness Size: Medium - Large
• Buckle Type: Tongue Buckle
• Harness Material: Polyester
• Composit: "POLYESTER, ALUMINUM"
• Dangerous Goods: No
• Hazardous Material: No
• Lead Content: No
• Liquid: No
• Liquid Item: No
• Mercury Content: No
• Sds: No
• Shelf Life: NO
• Tempature Sensitive: No
• Textile Or Wool: Yes
• Unspsc: 46182306
• Size: STANDARD
• Type: 10194897, HARN, V-FIT, STD, BK CHST HIP D, TBLS, SH PAD
• Unit of Measure: EA
• Safety harness type: Full Body Harnesses
• Features: Cushioned
• Brand: MSA Safety
• Standards: ANSI Z359.11-2014
• Series: V-FIT
• Harness Application: Climbing; Positioning
• Harness Sizing: M
• Buckles (Chest/Leg): Quick-Connect / Tongue
• Torso Adjustment: Friction
• Includes Padding: Yes
• CAPACITY ANSI Z359.11: 130–310 lbs. (59–140 kg)
• OSHA / CSA Z259.10: 400 lbs. (180 kg)
• SIZES: Extra Small, Standard, Extra Large, Super Extra Large
• D-RING LOCATIONS: Dorsal (back), hips (optional), shoulders (optional), chest (optional)
• LEG STRAP BUCKLE OPTIONS: Quick connect, tongue buckle
• PADDING LOCATIONS: Shoulder, waist (construction), legs (optional)
• THREAD / STITCHING: Polyester
• WEB: Polyester, nano-technology treated
• WEB KEEPER: Polyester, hook and loop closure
• LEG BUCKLES: Anodized forged aluminum, stainless steel tabs and adjuster
• CHEST BUCKLE: Anodized forged aluminum, stainless steel tabs and adjuster
• D-RING: Anodized forged aluminum
• PFL ADAPTER: Integrated polymer dedicated PFL attachment point
• PADDING: Breathable spacer mesh and foam
• PRODUCT STYLES: Racing style
