MRCOOL PTAC09335 Packaged Terminal Air Conditioner with Electric Heat Kit

Product Description

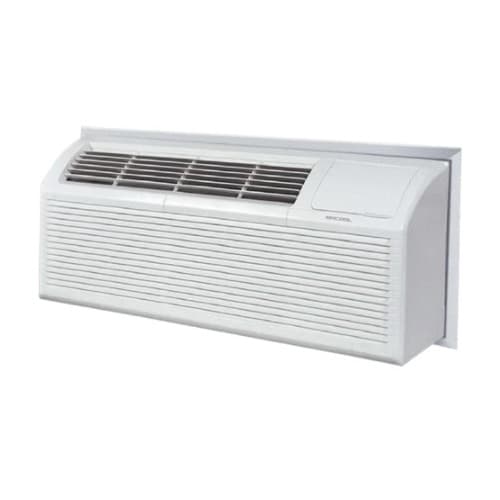

The MRCOOL PTAC09335 is a packaged terminal air conditioner built for efficient single-zone temperature control. This wall-mounted unit offers both cooling and heating functions, powered by a three point five kW electric heat kit. It comes with an electronic control for easy temperature selection and operates quietly. The air conditioner uses R-410A refrigerant and is equipped with a removable fresh air filter for better air quality. An auto restart function allows the unit to continue operating after power outages. The Gold Fin coating on the condenser enhances its resistance to corrosion.

• Provides cooling and heating with a three point five kW electric heat kit.
• Features a Gold Fin corrosion-resistant condenser.
• Equipped with an auto restart function.

Product Highlights

The MRCOOL PTAC09335 is ideal for environments requiring reliable temperature control, ensuring comfort all year round.

Product Information

Standard Information

• Model: PTAC09335
• Total BTU: 9,000 BTU

Technical Specifications

• Voltage: 208/230 Volts
• Wattage: 3.5 Kilowatts
• EER: 11.3
• Refrigerant Type: R-410A
• Hertz: 60 Hz
• Phase: 1 Phase
• Mounting Style: Wall Mounted
• Product Height: 16 inches
• Product Length: 21 inches
• Product Width: 42 inches
• Weight: 105 lbs
• Max Overcurrent Protection: 20 amps
• Warranty: 2 Year
• Minimum Circuit: 20A
• Rated Voltage: 230V-208V
• Connection Wiring: 12AWGx3 connection wiring
• Air Filter: Fresh air filter included
• Plug Type: LCDI 6-20P plug type
