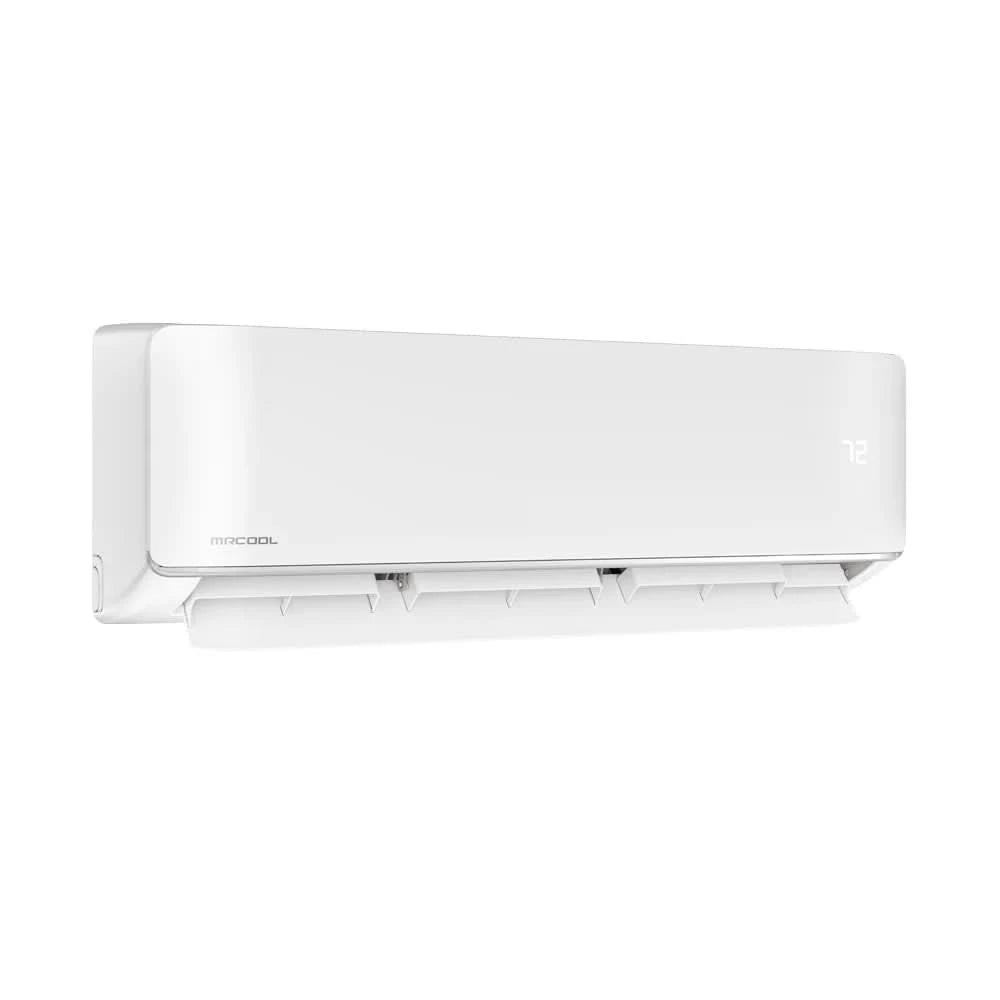

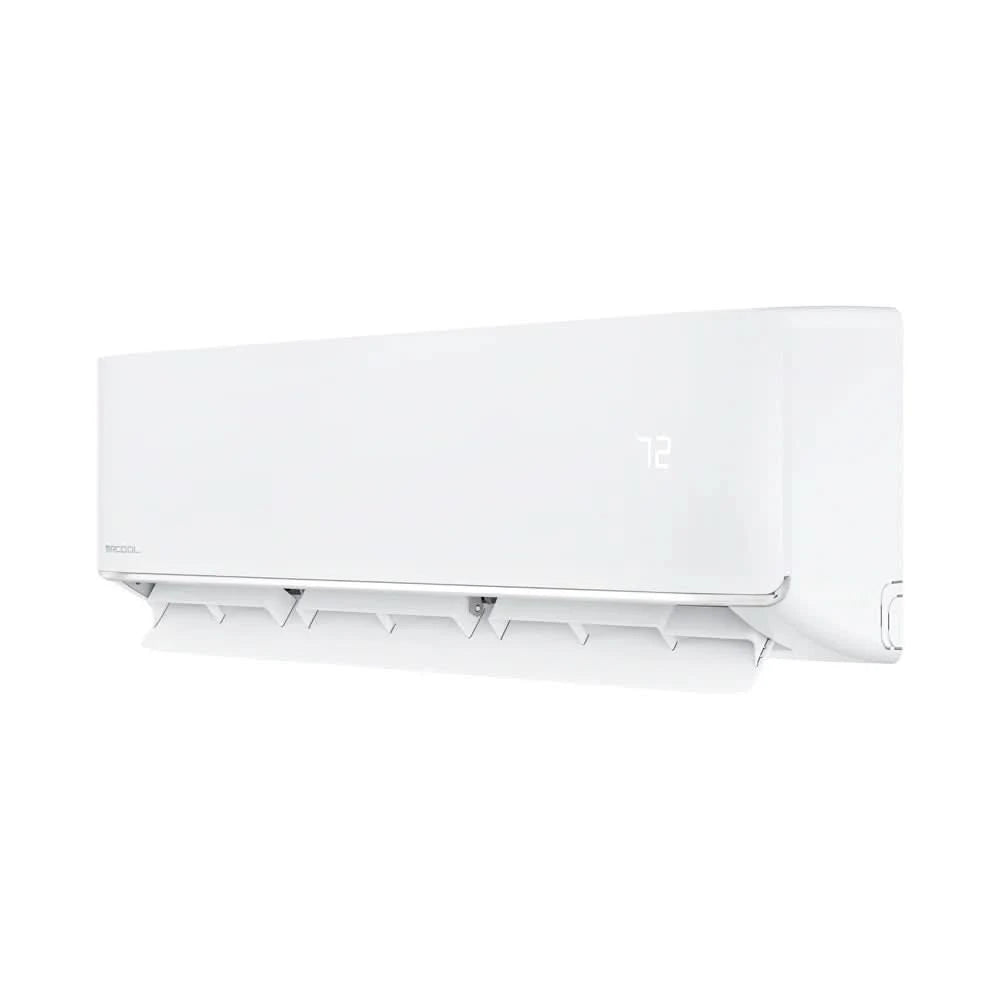

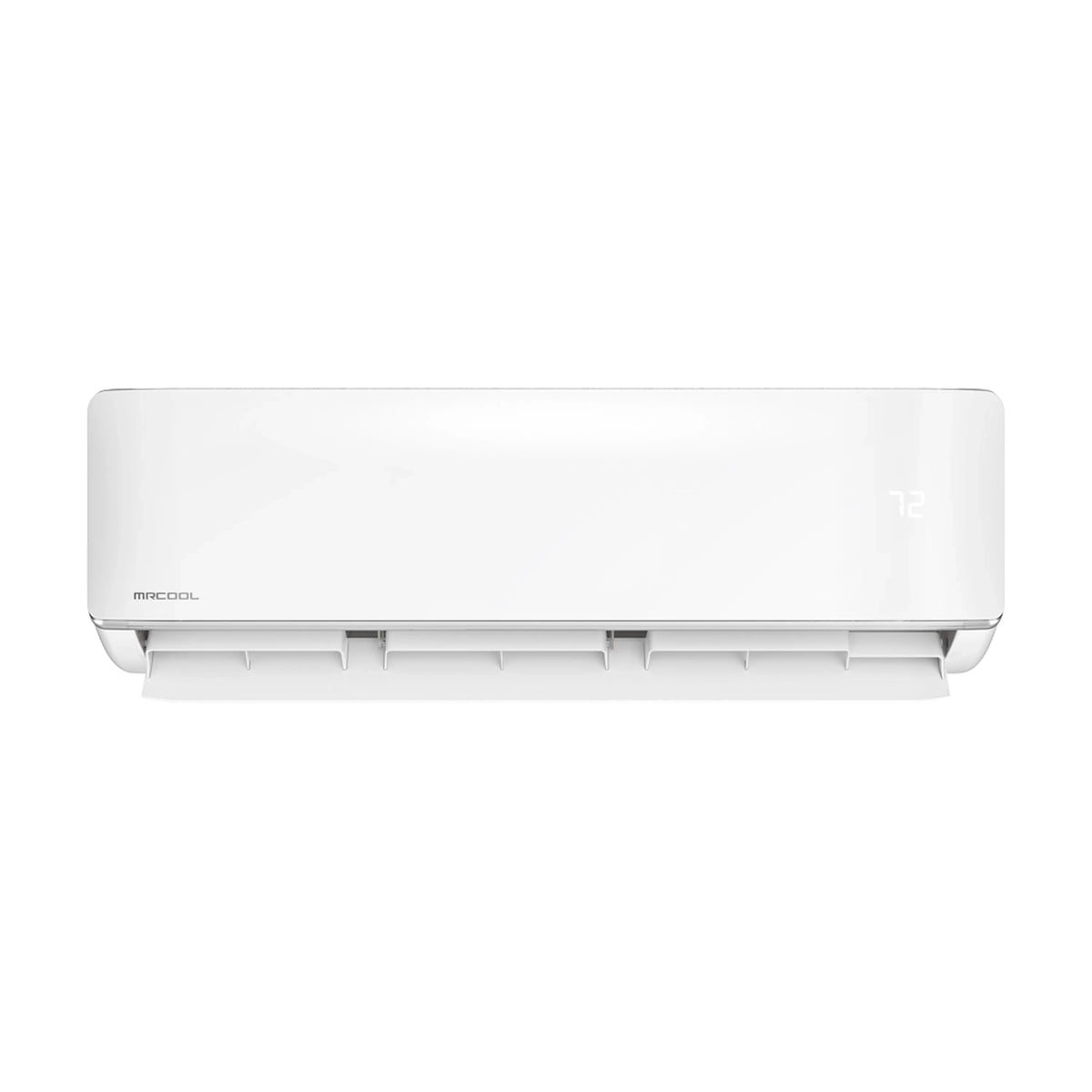

Mrcool DIY-06-HP-WMAH-230D25-O 6k DIY 5th Generation Mini-Split Air Handler 230v

MRCOOL
Brand: MRCOOL
SKU: DIY-06-HP-WMAH-230D25-O
Availability: In Stock

Ships via freight in 1-3 business days
$425.60
$425.60
LTL Delivery

This product weighs 39 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

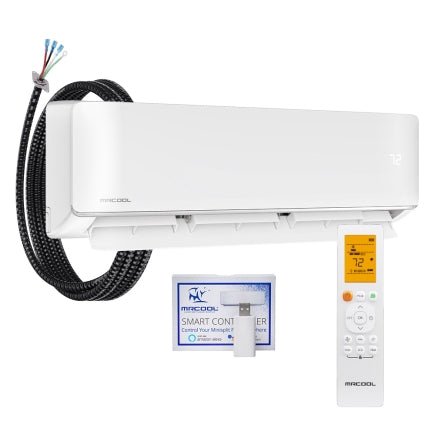

The MRCOOL DIY-06-HP-WMAH-230D25-O 6k DIY 5th Generation Mini-Split Air Handler 230v offers efficient and customizable climate control. Designed for easy, tool-free setup, this compact indoor unit delivers year-round heating and cooling. It pairs with any compatible 5th Gen DIY Multi-Zone Condenser and includes everything needed for a quick and simple installation.

  • DIY Installation: Designed for easy, tool-free setup—even without prior HVAC experience
  • QuickConnect® Line Set Compatible: Pre-charged with eco-friendly R-454B refrigerant, allowing vacuum-free hookup
  • Environmentally Friendly: R-454B refrigerant offers lower Global Warming Potential than R-410A, reducing environmental impact

Product Highlights

This mini-split air handler is ideal for small rooms up to 200 sq. ft. Operate via included remote, the SmartHVAC app, or voice control with Amazon Alexa & Google Assistant.

Product Information

Standard Information

  • Brand: MRCOOL
  • Manufacturer Part Number: DIY-06-HP-WMAH-230D25-O
Technical Specifications
Model Number
DIY-06-HP-WMAH-230D25-O
Cooling Capacity
6,000 BTU/h
Heating Capacity
6,000 BTU/h
Recommended Coverage Area
Up to 200 sq. ft.
Power Supply
208–230V, 60Hz, 1 Phase
Minimum Circuit Ampacity
3 A (est.)
Maximum Fuse
15 A (est.)
Refrigerant Type
R-454B
Line Set Size
1/4" Liquid x 3/8" Gas
Communication Cable Included
Yes, 4-conductor
Wireless Control
Remote, SmartHVAC App, Alexa, Google Assistant
Remote Sensor (Follow Me)
Yes
Dry Mode Function
Yes
Mounting Type
Wall-Mounted
Dimensions (WxDxH)
Approx. 31.5" x 7.5" x 11.75"
Net Weight
Approx. 18 – 20 lbs
UPC
840255587013
Product Height (in)
11.7
Configuration
Wall Mounted
Product Length (in)
7.4
Air Flow Direction
Horizontal
Product Width (in)
31.6
Blower Motor
Variable Speed
Electrical Phase
1-Phase
Line Set Connection Type
Quick Connect
Liquid Line Size
1/4 inch
Series
DIY
Special Features
Alexa, Google Assistant, WiFi Capable
Suction Line Size
3/8 inch
System Application Type
Ductless Split Systems
Voltage
208/230
Warranty
Lifetime, 5 Year Parts, 7 Year Compressor
Phase
1
Cycle
60
Mount Type
Wall
Max Coverage Area
200 sqft
Oscillation
Yes
Filter Type
Reusable
Auxiliary Heater Included
No
Auxiliary Heater Available
No
Fan Only Option
Yes
Quiet Mode
Yes
Auto Cool
Yes
WIFI Compatibility
Yes
APP Compatibility
Yes
Works with IOS
Yes
Works with Android
Yes
Remote Control Included
Yes
UL Listed
Yes
AHRI Certified
Yes
Refrigerant Pipe Connection Method
Quick-Connect
Room Size
200 Sq Ft
Has Batteries
Yes
Contains Electronics
Yes
Contains Chemicals
Yes
Contains Aerosol
Yes
Contains Compressed Gas
Yes
Proposition 65 Warning
Yes
