Product Description

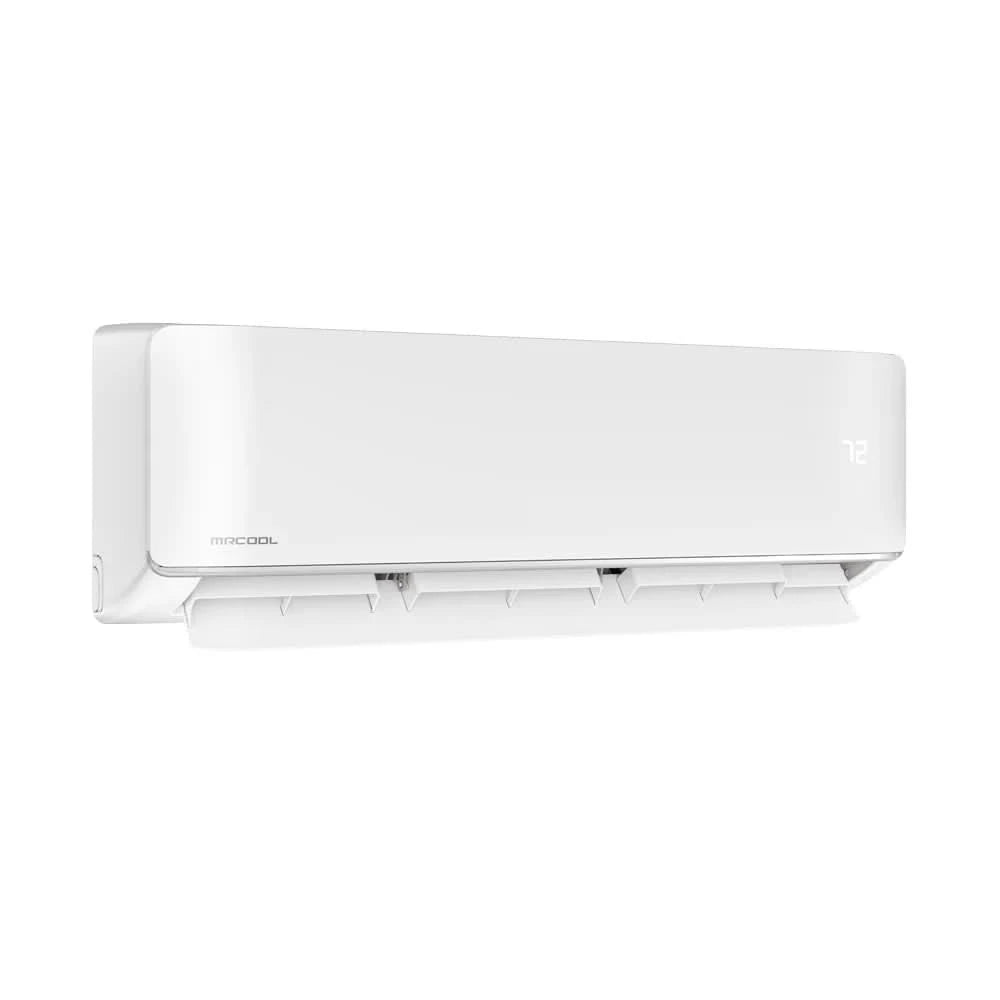

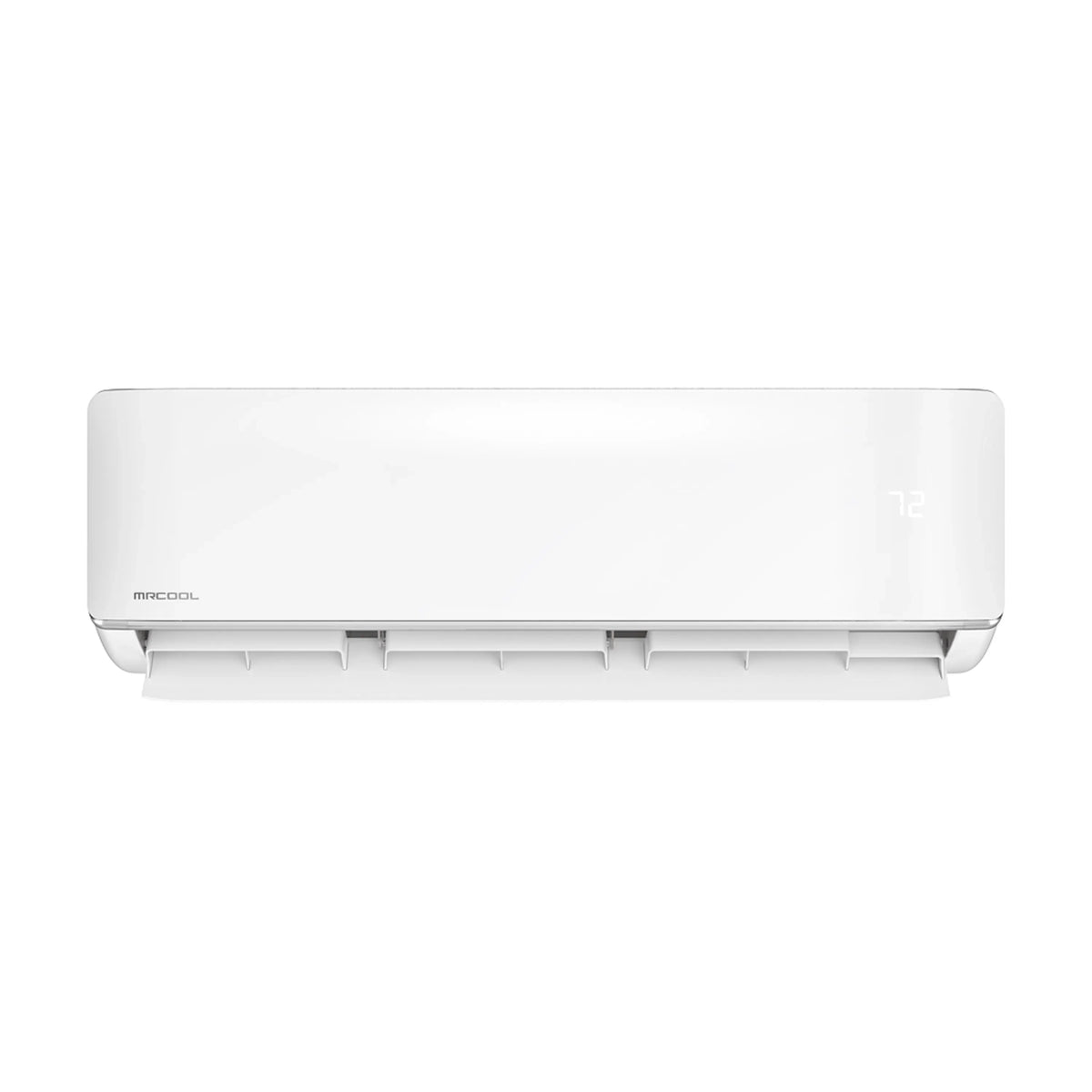

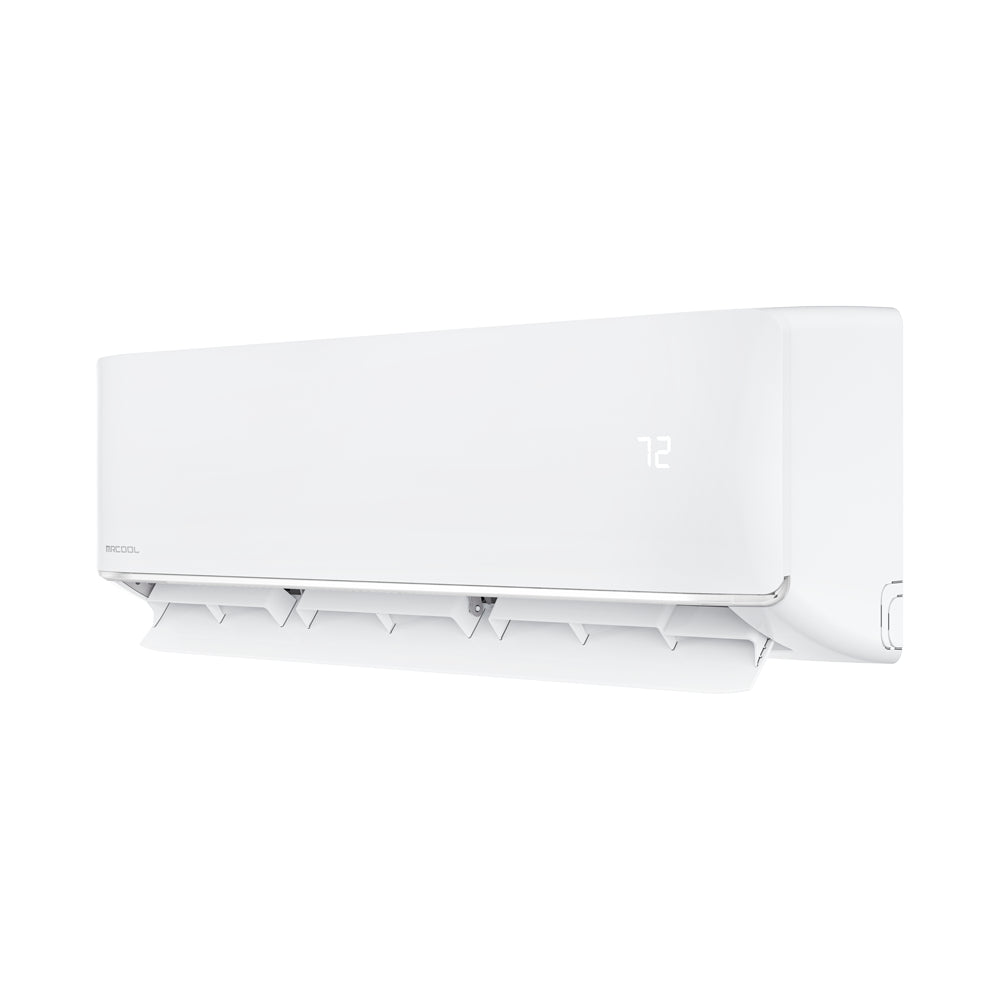

The MRCOOL DIY-09-HP-WMAH-230D25-O 9k DIY 5th Generation Mini-Split Air Handler operates on 230V. Designed for easy DIY installation, this unit provides both heating and cooling for spaces up to 400 sq. ft. It features smart technology and energy-efficient operation in a compact, wall-mounted design, and is compatible with MRCOOL 5th Gen DIY Multi-Zone Condensers.
- Easy, tool-free DIY installation without special skills or HVAC licensing.

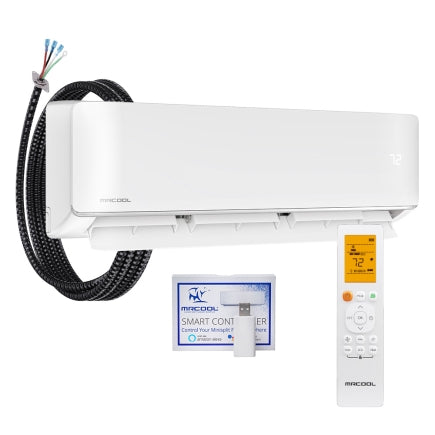

- Compatible with QuickConnect® line sets and includes a pre-charged R-454B line set for no-vacuum installation.
- Offers smart control via remote, SmartHVAC app, Alexa, or Google Assistant.
Product Highlights
This MRCOOL mini-split air handler features DIY installation, smart controls, and is designed for efficient heating and cooling.
Product Information
Standard Information
-
Brand: MRCOOL
-
Manufacturer Part Number: DIY-09-HP-WMAH-230D25-O
Technical Specifications
-
Brand: MRCOOL
-
MPN: DIY-09-HP-WMAH-230D25-O
-
UPC: 840255587020
-
Model Number: DIY-09-HP-WMAH-230D25-O
-
Cooling Capacity: Less than 1 Ton
-
Heating Capacity: 9,000 BTU/h
-
Recommended Coverage Area: Up to 400 sq. ft.
-
Power Supply: 208–230V, 60Hz, 1 Phase
-
Minimum Circuit Ampacity: 3 A (est.)
-
Maximum Fuse: 15 A (est.)
-
Refrigerant Type: R-454B
-
Line Set Size: 1/4" Liquid x 3/8" Gas
-
Communication Cable Included: Yes, 4-conductor
-
Wireless Control: Remote, SmartHVAC App, Alexa, Google Assistant
-
Remote Sensor (Follow Me): Yes
-
Dry Mode Function: Yes
-
Mounting Type: Wall-Mounted
-
Dimensions (WxDxH): Approx. 31.5" x 7.5" x 11.75"
-
Net Weight: Approx. 18 – 20 lbs
-
Product Height (in): 11.7
-
Product Length (in): 7.4
-
Air Flow Direction: Horizontal
-
Product Width (in): 31.6
-
Blower Motor: Variable Speed
-
Electrical Phase: 1-Phase
-
Line Set Connection Type: Quick Connect
-
Liquid Line Size: 1/4 inch
-
Series: DIY
-
Special Features: Alexa, Google Assistant, WiFi Capable
-
Suction Line Size: 3/8 inch
-
System Application Type: Ductless Split Systems
-
Voltage: 208/230
-
Warranty: Lifetime, 5 Year Parts, 7 Year Compressor
-
Phase: 1
-
Cycle: 60
-
Mount Type: Wall
-
Max Coverage Area: 400 sqft
-
Oscillation: Yes
-
Filter Type: Reusable
-
Auxiliary Heater Included: No
-
Auxiliary Heater Available: No
-
Fan Only Option: Yes
-
Quiet Mode: Yes
-
Auto Cool: Yes
-
WIFI Compatibility: Yes
-
APP Compatibility: Yes
-
Works with IOS: Yes
-
Works with Android: Yes
-
Remote Control Included: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
AHRI Certified: Yes
-
Registered Warranty: Extended Limited Lifetime*
-
Base Parts Warranty: 5
-
Base Compressor Warranty: 7
-
Has Batteries: Yes
-
Contains Electronics: Yes
-
Contains Chemicals: Yes
-
Contains Aerosol: Yes
-
Contains Compressed Gas: Yes
-
Proposition 65 Warning: Yes
