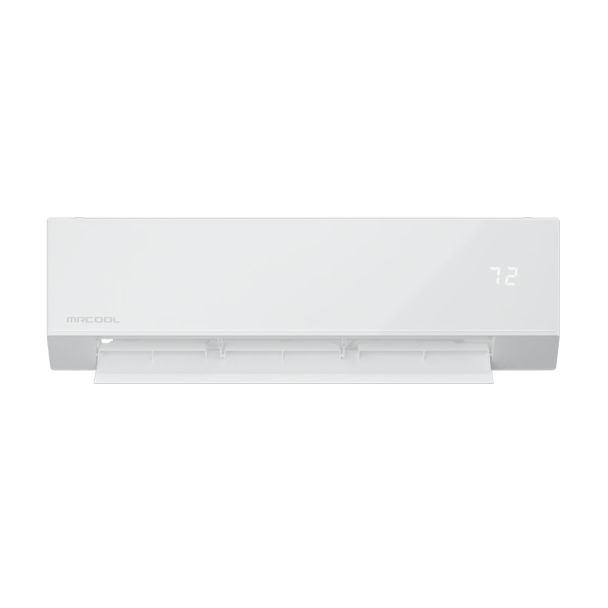

MRCOOL O-MULTI12HP-WMAH-230 Ductless Mini-Split Wall Mount Air Handler

Product Description

The MRCOOL Olympus Series O-MULTI12HP-WMAH-230 is a ductless mini-split wall-mounted air handler designed for both heating and cooling applications. This versatile unit pairs with a compatible condenser, sold separately, to provide efficient climate control. Users can select from modes including auto cool, sleep mode, and fan-only operation. Equipped with a removable and washable filter, this air handler ensures optimal air quality. With a utilization of R-410A refrigerant, it operates on a 208-230V electrical connection.

• Wall-mounted design for efficient space usage
• Includes auto swing and louver detection memory
• Compatible with SmartHVAC app for remote management

Product Highlights

This air handler is ideal for residential and light commercial spaces, providing efficient heating and cooling. The advanced features enhance user convenience and improve overall energy efficiency.

Product Information

Standard Information

• Brand: MRCOOL
• Model: O-MULTI12HP-WMAH-230

Technical Specifications

• UPC: 856536005800
• Total BTU: 12000 BTU
• Cooling Capacity: 1 Ton
• Heating BTU: 12000 BTU
• Refrigerant: R410A
• Input Voltage: 208-230 Volts
• Electrical Phase: 1 Phase
• Hertz: 60 Hz
• Max Overcurrent Protection: 15 amps
• Max Breaker Size: 15 amps
• Min. Breaker Size: 9 amps
• Mounting Style: Wall Mounted
• Air Flow Direction: Horizontal
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch
• Height: 11 inches
• Width: 33 inches
• Length: 8 inches
• Weight: 20 lbs
• Series: Olympus
• System Application Type: Ductless Split Systems
• Blower Motor: Variable Speed
• Features: Energy Star Qualified, WiFi Enabled
• Plug Type: Hardwire
• Range: 1,000 Square Feet
• Warranty: 5-year Parts, 7-year Compressor, 1-year Remote
