MRCOOL O-ES-24-HP-230B MRCOOL Olympus Ductless Mini-Split Heat Pump System

Product Description

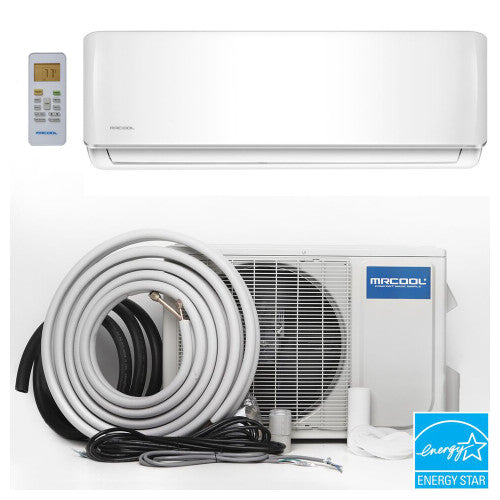

The MRCOOL Olympus O-ES-24-HP-230B is a ductless mini-split heat pump system with versatile heating and cooling capabilities. It operates using R-410A refrigerant and meets Energy Star standards for efficiency. The system is designed for professional installation and includes both an air handler and an outdoor condenser.

• Cools and warms effectively with a cooling capacity of twenty-four thousand BTU/H and heating capacity of twenty-five thousand BTU/H.
• Features energy efficiency with up to twenty-two SEER rating.
• Operates on 208/230V power, ensuring compatibility with standard electrical systems.

Product Highlights

This system includes convenient modes such as auto restart, timer, and sleep mode, providing flexibility for temperature control.

Product Information

Standard Information

• Model: O-ES-24-HP-C-230B
• MPN: O-ES-24-HP-230B

Technical Specifications

• Cooling Capacity: 24000 BTU/H
• Heating Capacity: 25000 BTU/H
• Efficiency: 20.5 SEER
• Voltage: 208V/230V
• EER: 12.5
• Refrigerant Type: R410A
• Low Ambient Cooling: 5°F
• Indoor Unit: O-ES-24-HP-WMAH-230
• Outdoor Unit: O-ES-24-HP-C-230
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Electrical Phase: 1 Ph
• Max Overcurrent Protection: 30 amps
• Weight: 134.92 lbs
• Warranty: 7 Years
• Certificate: Energy Star, ETL Listed
• AHRI Number: 208552817
• Product Height: 31.89 inches
• Product Length: 16.14 inches
• Product Width: 37.24 inches
• Compressor: Inverter
• Heat Pump Efficiency: 10 HSPF
• Line Set Connection Type: Flared
• Region Compatibility: Nationwide
• Maximum Amperage: 30 Amps
