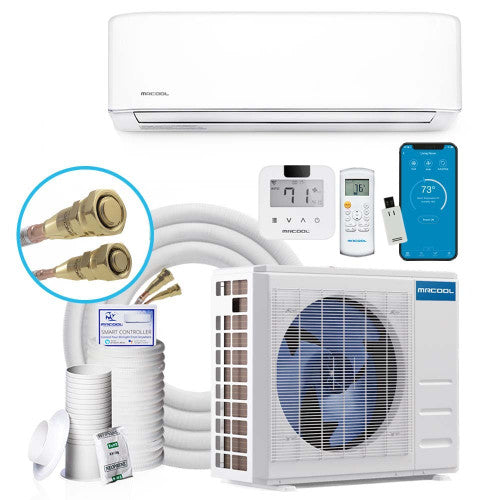

MRCOOL O-24-HP-WMAH-230B Ductless Mini-Split Heat Pump Air Handler

Product Description

The MRCOOL O-24-HP-WMAH-230B is a ductless mini-split heat pump air handler designed for wall mounting. This twenty-four thousand BTU unit provides effective heating and cooling for spaces up to one thousand square feet. It operates with the Smart HVAC app for convenient remote control and includes features like auto restart and refrigerant leakage detection.

• Provides both heating and cooling.
• Compatible with Smart HVAC app for remote control.
• Includes refrigerant leakage detection and louver position memory.

Product Highlights

This air handler operates efficiently to maintain comfortable temperatures in various indoor settings. It supports low ambient cooling and adapts to outdoor conditions.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: O-24-HP-WMAH-230B

Technical Specifications

• BTU: 24,000
• SEER: 20
• Cooling Capacity: 23,000 BTU
• Heating Capacity: 25,000 BTU
• Area Coverage: 1,000 sq. ft.
• Voltage: 208-230V/1
• EER: 12.5
• Min Circuit Ampacity: 18 A
• Refrigerant Type: R410A
• Low Ambient Cooling: 5°F
• Decibel rating: 48 dB-A
• Net Dimensions (W x D x H): 44.88 in x 10.83 in x 14.57 in
• Net Weight: 43.65 lbs
• Liquid Line Size: 3/8
• Suction Line Size: 5/8
• Certification: ETL Listed, cUL/UL Listed
