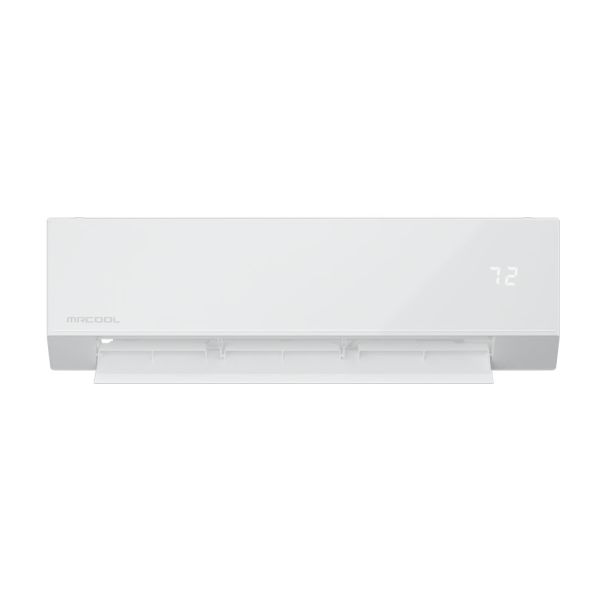

MRCOOL O-24-HP-WMAH-230A Mini-Split Air Handler 24000 BTU

Product Description

The MRCOOL Olympus O-24-HP-WMAH-230A is a wall-mounted mini-split air handler with a cooling capacity of twenty-four thousand BTU. Suitable for multi-zone setups, this unit is intended for indoor installation and requires a compatible outdoor condenser, sold separately. It includes features such as auto restart, leakage detection, and various operational modes like sleep, auto, and timer options. The unit seamlessly integrates with the SmartHVAC app, allowing for wireless control and monitoring.

• Cooling capacity of 24000 BTU
• Wall mount design for space efficiency
• Requires an outdoor unit for full functionality

Product Highlights

Ideal for residential or small commercial spaces, the MRCOOL Olympus O-24-HP-WMAH-230A grants efficient cooling and heating in one unit.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: O-24-HP-WMAH-230A

Technical Specifications

• Cooling Capacity: 24000 BTU
• Heating Capacity: 25000 BTU
• Input Voltage: 208V-230V
• Electrical Phase: 1-Phase
• Maximum Amperage: 30 Amp
• Minimum Breaker Size: 20 amps
• Refrigerant: R410A
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Mounting Type: Wall Mounted
• Width: 46.69 inches
• Height: 13.39 inches
• Depth: 10.16 inches
• Weight: 50.30 lbs
• Certifications: Energy Star
• SEER: 16
• EER: 9
