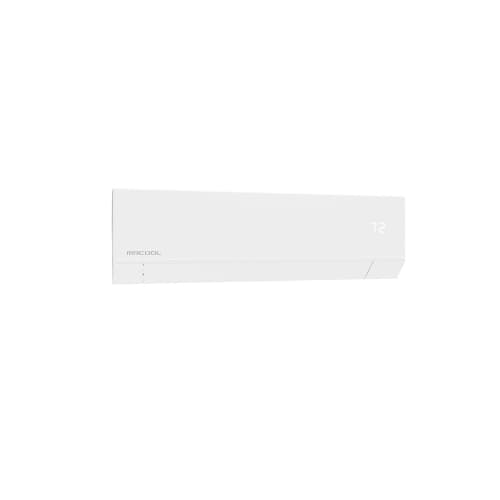

MRCOOL O-12-HP-WMAH-230B Ductless Mini-Split Wall Mounted Air Handler

Product Description

The MRCOOL O-12-HP-WMAH-230B is a ductless mini-split wall-mounted air handler. This unit provides both cooling and heating capabilities. It works with the SmartHVAC app and can be controlled using Amazon Alexa, Google Assistant, or the included remote. The air handler supports various modes such as auto, drying, and sleep. It incorporates an auto restart feature for convenience.

• Cooling and Heating Capacity: 12,000 BTU
• Refrigerant Type: R-410A
• Control Options: SmartHVAC, Amazon Alexa, Google Assistant, Remote

Product Highlights

This unit is designed for wall mounting, making it suitable for various spaces. It features variable speed settings and an efficient blower motor for effective air distribution.

Product Information

Standard Information

• Model: A-12-HP-WMAH-230B
• Country of Origin:

Technical Specifications

• Cooling Capacity: 12000 BTU
• Heating Capacity: 12000 BTU
• Voltage: 208-230 V
• Electrical Phase: 1-Phase
• Cycle: 60 Hz
• Max Overcurrent Protection: 15 amps
• Min Breaker Size: 9 amps
• Mounting Type: Wall
• Sound Level: 31/37.5/45 dBA
• Max Lineset Length: 75 ft
• Liquid Line Fitting: 3/8 in
• Suction Line Fitting: 5/8 in
• Control Type: LED
• Filter Type: Washable
• Dimensions: 31.57 x 7.44 x 11.69 inches
• Weight: 19 lbs
• Warranty: 5-year Parts/7-year Compressor/1-year Remote
