MRCOOL MVPHK05 5kW Electric Heat Kit

Product Description

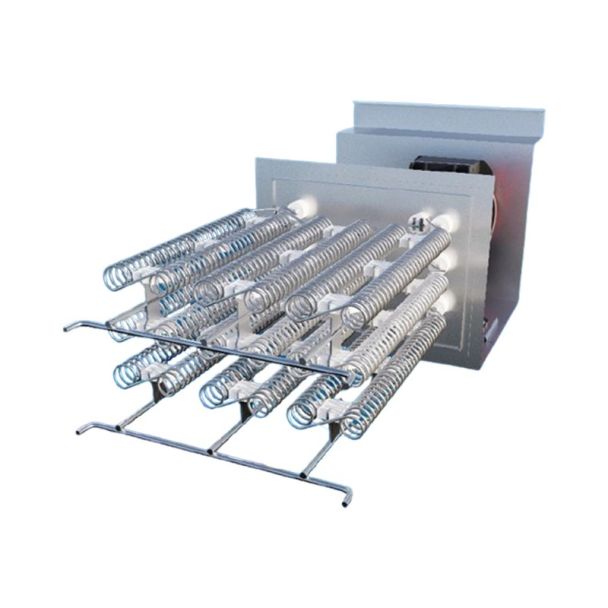

The MRCOOL MVPHK05 is a 5kW electric heat kit designed to supplement heating for MRCOOL air handlers, including VersaPro and Hyper Heat models. This kit increases heating capacity, providing between fifteen thousand and twenty thousand BTU. It is compatible with a 208/230-240V 1-Phase 60 Hz electrical supply and comes with a circuit breaker for protection.

• Supplemental heating for MRCOOL air handlers
• Delivers 5kW of electric heat
• Includes a circuit breaker for safety

Product Highlights

Product Information

Standard Information

• Brand: MRCOOL
• Model: MVPHK05

Technical Specifications

• Heat Strip Size: 5 kW
• Electrical Phase: 1-Phase
• Voltage: 208/230-240V
• Max Overcurrent Protection: 25/30 amps
• Min. Breaker Size: 23/27
• Primary Heating Capacity: 15,001 - 20,000 BTU
• Product Height: 8.03 inches
• Product Width: 21.06 inches
• Product Length: 10.16 inches
• Weight: 5 pounds
• Series: VersaPro
• System Application Type: Central Split Systems
