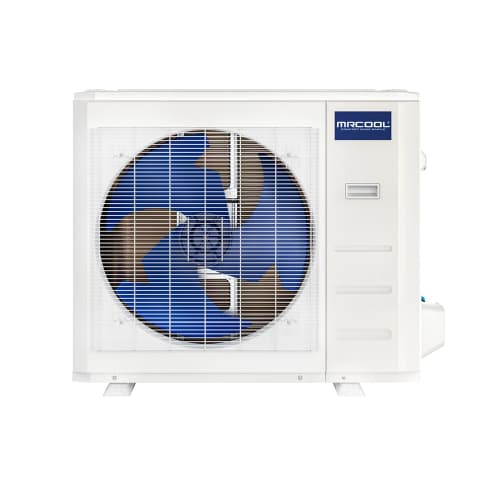

MRCOOL MVP-36-HP-C-230-00 MRCOOL VersaPro 3 Ton Central Ducted Heat Pump Condenser

Product Description

The MRCOOL VersaPro Heat Pump Condenser, MPN MVP-36-HP-C-230-00, is a three-ton system that delivers a cooling capacity of thirty-six thousand BTU. This energy-efficient unit is suitable for residential settings and features variable-speed operation for optimized performance. It is built with painted galvanized steel and has a side-discharge design for enhanced airflow management.

• Three-ton, thirty-six thousand BTU capacity.
• Compatible with MRCOOL No Vac Quick Connect line sets for quick installation.
• Integrated self-diagnostic features.

Product Highlights

This heat pump condenser is designed to work seamlessly with MRCOOL central ducted air handlers. The unit is precharged with R-410A or R-454B refrigerant, ensuring effective cooling and heating solutions.

Product Information

Standard Information

• Brand: MRCOOL
• Model: MVP-36-HP-C-230-00

Technical Specifications

• Cooling Capacity: 3 Ton
• Heating Capacity: 36000 BTU
• SEER: 18
• EER: 10.4
• HSPF: 9.1/7.1
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Max Overcurrent Protection: 30 amps
• Min Circuit Ampacity: 24
• Max Lineset Length: 213.25 ft
• Air Flow Direction: Multi-position
• Dimensions: 21.02 in (Length) x 21.02 in (Width) x 49.02 in (Height)
• Condenser Weight: 151.68 lbs
• Decibel Rating High: 46.8
