MRCOOL MVP-30-HP-MUAH-230-25 Central Ducted Air Handler 2.5 Ton Replacement MPN

Product Description

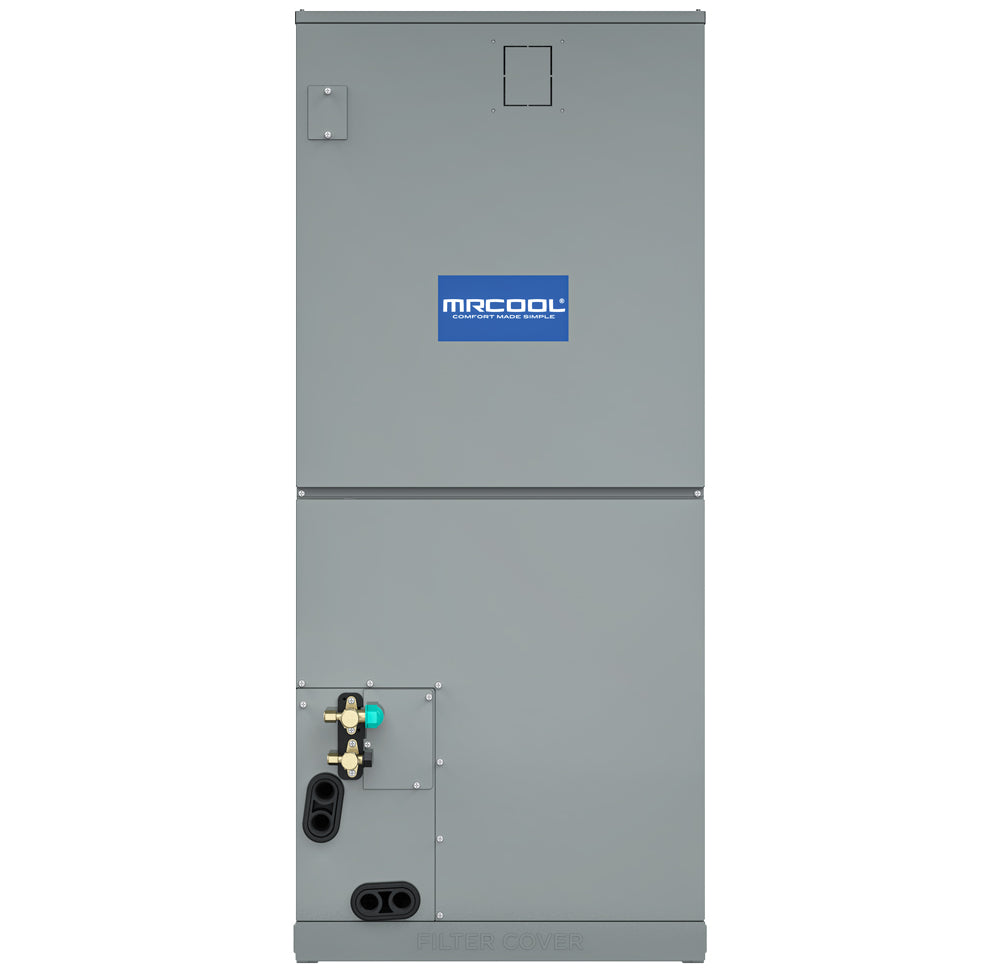

The MRCOOL VersaPro Central Ducted Air Handler is a robust solution for central split systems. This model, MVP-30-HP-MUAH-230-25, offers a cooling capacity of two point five tons and is built from painted galvanized steel. The unit's multi-position configuration allows for upflow, downflow, and horizontal installations. It comes equipped with a replaceable filter to ensure quality air flow and is compatible with smart Wi-Fi thermostats, offering modern convenience through a wireless remote. The self-diagnostic feature enhances functionality and reliability, with AHRI and ETL certifications ensuring compliance with industry standards.

• 2.5 Ton cooling capacity.
• Multi-positional unit for flexible installation.
• Compatible with smart Wi-Fi thermostat.

Product Highlights

This air handler supports efficient heating and cooling operations and includes three speed settings for optimal airflow management. It is built for durability and ease of maintenance, catering to both residential and light commercial applications.

Product Information

Standard Information

• Brand: MRCOOL
• Model: MVP-30-HP-MUAH-230-25

Technical Specifications

• Cooling Capacity: 30000 BTU
• Heating Capacity: 31000 BTU
• Voltage: 208-230 V
• Electrical Phase: 1-Phase
• Max Overcurrent Protection: 15 amps
• Min Circuit Ampacity: 8.0/6.0 amps
• Air Flow Direction: Downflow, Horizontal, Upflow
• Number of Speeds: 3
• Filter Type: Replaceable
• Filter Size: 19x20x1 inches
• Height: 49.02 inches
• Length: 21.02 inches
• Width: 21.02 inches
• Net Weight: 128.97 lbs
• Gross Weight: 153.44 lbs
