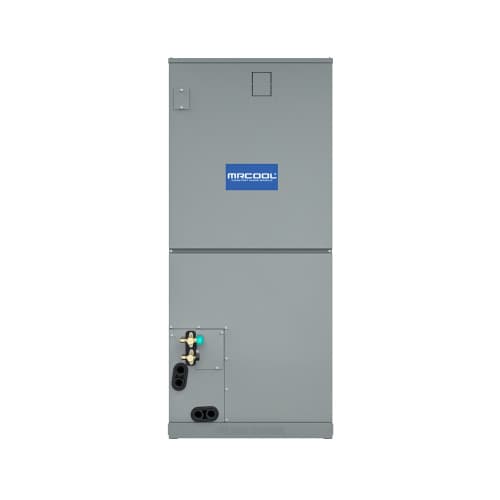

MRCOOL MVP-24-HP-MUAH-230-25 MRCOOL VersaPro Central Ducted Air Handler

Product Description

The MRCOOL VersaPro Central Ducted Air Handler MVP-24-HP-MUAH-230-25 is suitable for central split systems. This unit has a cooling capacity of 2 tons and operates using R-410A refrigerant. It accommodates various installation configurations such as upflow, downflow, and horizontal setups. It can connect with Quick Connect, flared, or sweat line set connections. Key features include a removable filter and a self-diagnostic panel. There is an option for a heat kit to enhance heating capabilities.

• Cooling capacity of 2 tons.
• Supports multiple airflow directions: upflow, downflow, and horizontal.
• Compatible with heat strips up to 10 kW.

Product Highlights

This air handler offers versatile installation options and efficient heating and cooling functions.

Product Information

Standard Information

• Model: MVP-24-HP-MUAH-230-25
• Configuration: Floor Mounted

Technical Specifications

• AHRI Number: 211644118
• Cooling Capacity: 24000 BTU/H
• Heating Capacity: 24000 BTU/H
• Electrical Phase: 1-Phase
• Max Overcurrent Protection: 15 amps
• Weight: 132.72 lbs
• Dimensions: 21.02 x 17.52 x 45 inches
• Refrigerant: R-410A
