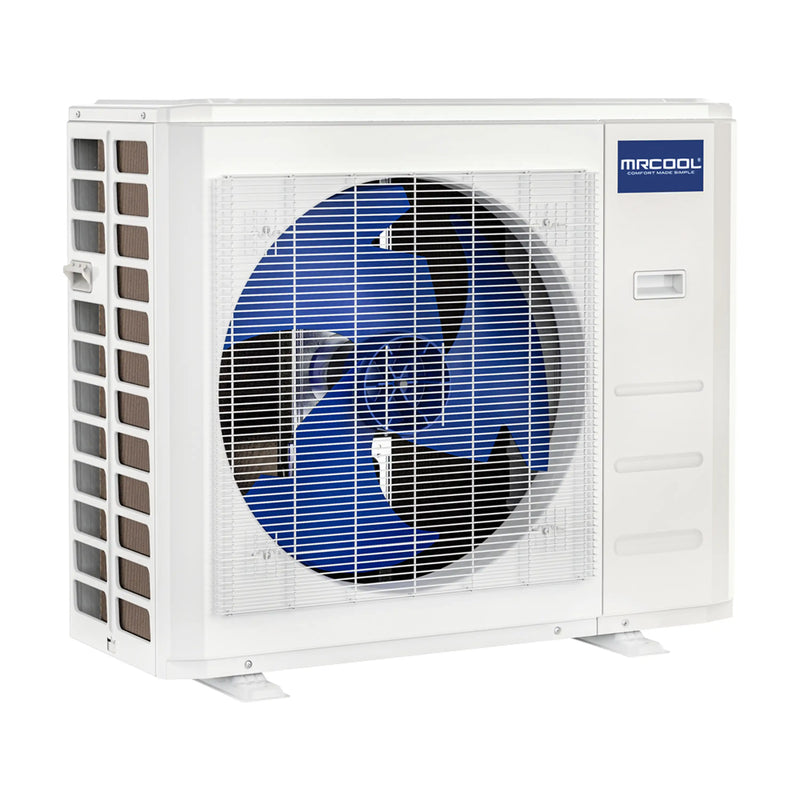

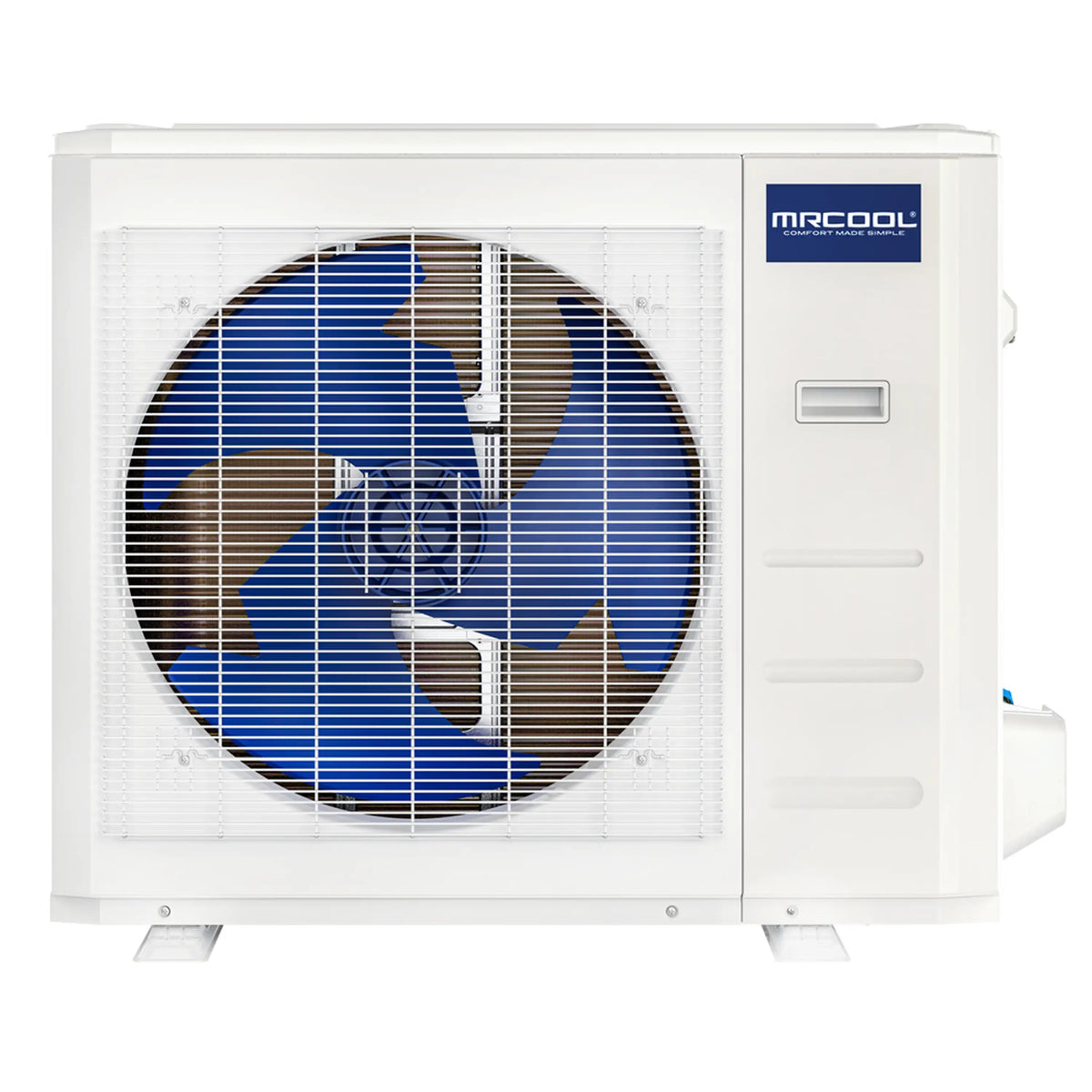

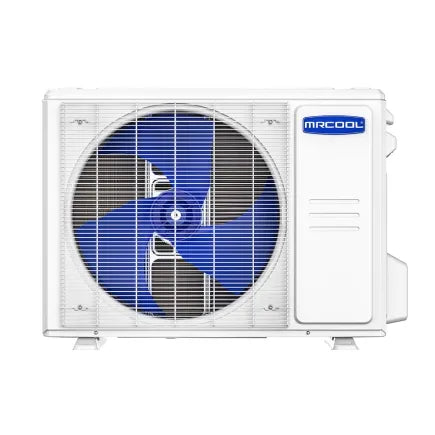

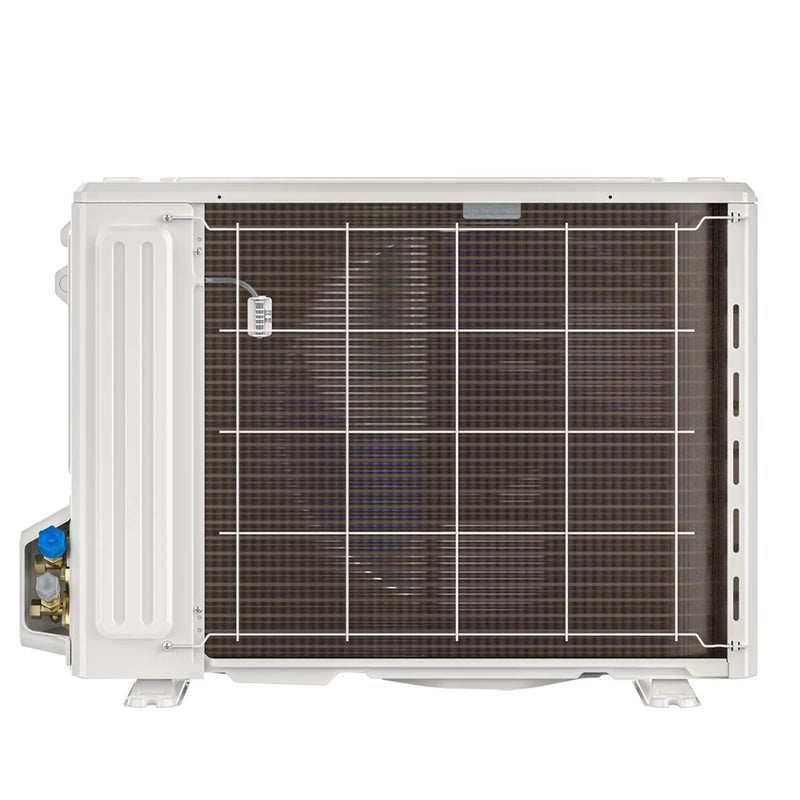

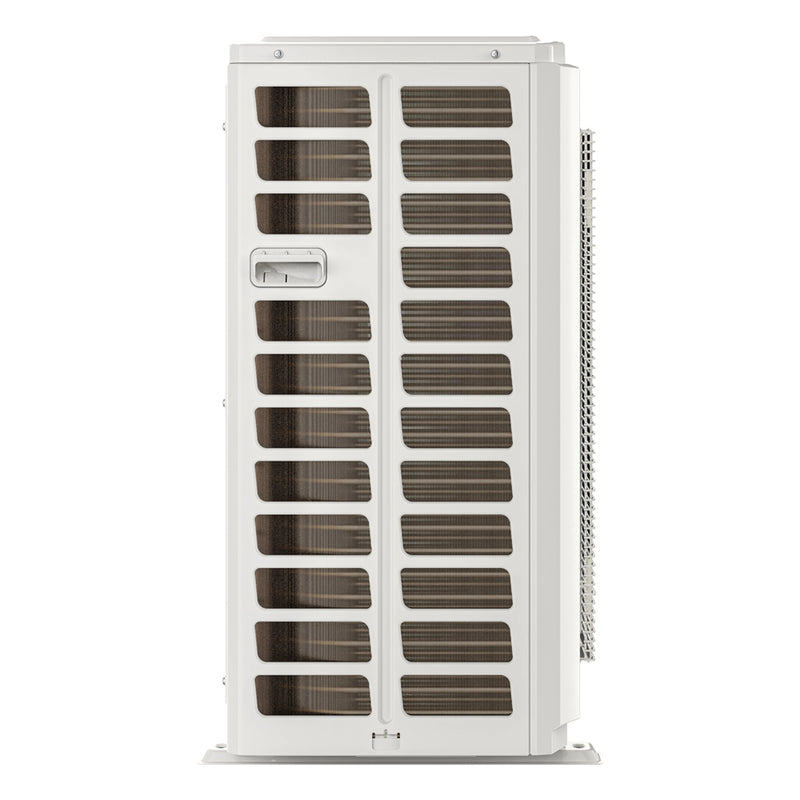

Mrcool MVP-24-HP-C-230A00-O VersaPro Central Ducted Heat Pump Condenser 2 Ton

Product Description

The MRCOOL MVP-24-HP-C-230A00-O VersaPro Central Ducted Heat Pump Condenser is a 2 ton condenser designed for efficiency and reliability. Featuring R454B refrigerant and a durable casing made from premium painted galvanized steel, this heat pump ensures long-term performance. It is compatible with any length of the MrCool No Vac Quick Connect Line Sets. The unit is also supported by ETL listing and AHRI certification.

• ETL listing and AHRI certification
• Utilizes R454B refrigerant with zero ozone depletion potential
• Durable casing made from premium painted galvanized steel

Product Highlights

This MRCOOL VersaPro condenser offers efficient and cost-effective climate control with a focus on durability and ease of installation for any licensed technician.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: MVP-24-HP-C-230A00-O

Technical Specifications

• Model: MVP-24-HP-C-230A00-O
• UPC: 840255582698
• AHRI Number: 216032536
• Product Height (in): 26.5
• Product Length (in): 35.04
• Compressor: Inverter
• Product Width (in): 13.46
• Cooling Capacity: 2 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): 9.7
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 20 amps
• Refrigerant: R-454b
• Cooling Efficiency (SEER2): 18.1
• Series: VersaPro
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Voltage: 208-230
• Warranty: 10 Year Parts, 10 Year Compressor
• Region Compatibility: Nationwide
• WiFi Compatibility: Yes
• Cooling Capacity (BTU): 24000
• Heating Capacity (BTU): 26000
• Phase: 1
• Cycle: 60
• Min Circuit Ampacity (A): 19
• Refrrigerant Volume (OZ): 74.08
• Decibel Rating (DBA): 60
• APP Compatibility: Yes
• ETL Certified: Yes
• Energy Star Certified: Yes
• AHRI Certified: Yes
• Base Parts Warranty: 10 Years
• Base Compressor Warranty: 10 Years
• Contains Electronics: Yes
• Contains Chemicals: Yes
• Contains Compressed Gas: Yes
• Gross Depth (IN): 15.67
• Gross Height (IN): 29.13
• Gross Width (IN): 39.17
• Gross Weight (LBS): 109
