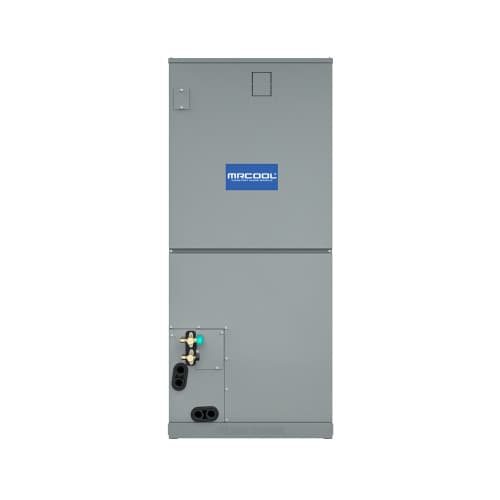

MRCOOL MVP-18-HP-MUAH-230-25 1.5 Ton VersaPro Central Ducted Air Handler

Product Description

The MRCOOL MVP-18-HP-MUAH-230-25 is a 1.5-ton central ducted air handler designed for effective home heating and cooling. This system employs DC inverter technology, which allows it to adjust compressor speed based on the specific heating and cooling requirements. The durable construction includes painted galvanized steel and features a removable filter for easy maintenance.

• Compatible with R-410A refrigerant.
• Includes a wired thermostat and a wireless remote.
• Variable speed functionality ensures efficiency.

Product Highlights

This product provides precise temperature control and can be installed in multiple positions, making it a versatile choice for various setups.

Product Information

Standard Information

• Brand: MRCOOL
• Model: CENTRAL-18-HP-MUAH-230-25

Technical Specifications

• MPN: MVP-18-HP-MUAH-230-25
• Cooling Capacity: 18000 Btu/h
• Heating Capacity: 18000 Btu/h
• SEER2: 16.6
• EER2: 11.7
• HSPF4: 10.2
• Air Flow: 1764.71 CFM
• Noise Level: 58 dB(A)
• Input Voltage: 208/230v~60Hz,1ph
• Min Circuit Ampacity: 18
• Max Fuse: 30
• Refrigerant Type: R410A
• Liquid Line Size: 1/4 inch
• Gas Line Size: 1/2 inch
• Product Height: 45 inches
• Product Width: 21.02 inches
• Product Depth: 17.52 inches
• Weight: 131.61 lbs
• Configuration: Floor Mounted
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
