MRCOOL DIY Multi-Zone 55000 BTU 5th Gen Mini Split Heat Pump System R454B 22 SEER2 (18k+18k)

Description

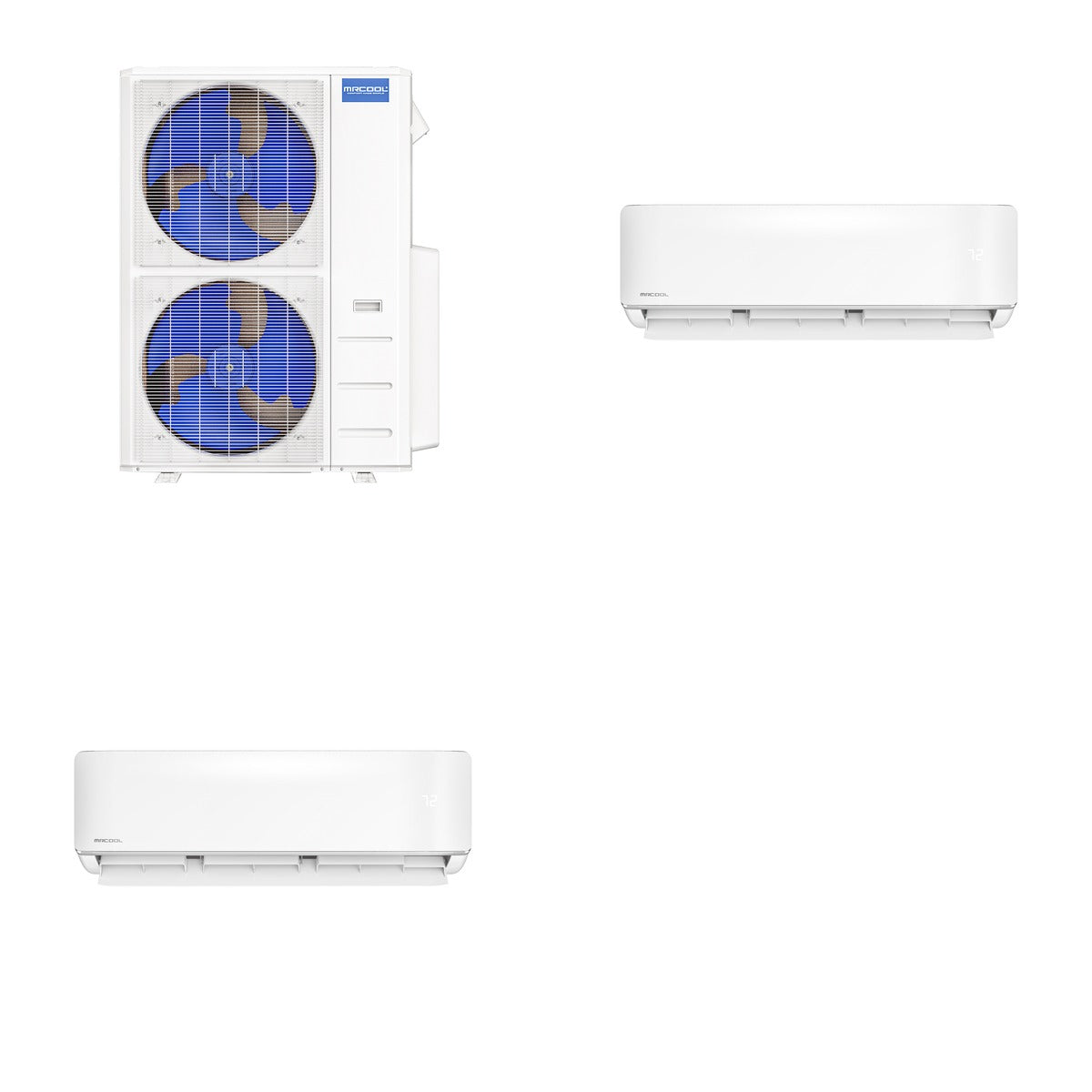

This comprehensive HVAC bundle includes the MRCOOL DIY-MULTI6-55HP230D-O 55k Mini-Split Condenser and two MRCOOL DIY-18-HP-WMAH-230D25-O 18K BTU Ductless Mini-Split Air Handlers. Designed for seamless integration, this combination allows for efficient multi-zone heating and cooling across large spaces. The condenser can manage up to six zones, while the air handlers ensure optimal temperature control in individual rooms. With DIY installation capabilities, users can easily set up the system without professional assistance, making it a cost-effective solution for year-round comfort.

What's Included

• MRCOOL DIY-MULTI6-55HP230D-O - 55k Mini-Split Condenser (Qty x1)
• MRCOOL DIY-18-HP-WMAH-230D25-O - 18K BTU Ductless Mini-Split Air Handler (Qty x2)

Key Details

• Weight of Bundle: 366.7 lb (MRCOOL 267.5 lb + MRCOOL 99.2 lb)
• Cooling Capacity: 47,000 BTU
• Heating Capacity: 55,000 BTU
• SEER: 22
• Tonnage: 4.6 (Condenser), 1.5 (Air Handlers)
• Refrigerant Type: R-454B
• Zone Capacity: 6
• Condenser Dimensions: 19.49 x 58.27 x 43.11 inches
• Air Handler Dimensions: 17.68 x 14.29 x 46.73 inches
• Condenser Weight: 267.46 lbs
• Air Handler Weight: 49.6 lbs

Use & Compatibility

This bundle is ideal for residential or light commercial applications, providing efficient heating and cooling for spaces up to 2,290 square feet. The condenser is compatible with up to six air handlers, allowing for customizable climate control in various rooms or zones. Perfect for users looking for a DIY solution that combines smart technology with reliable performance.
