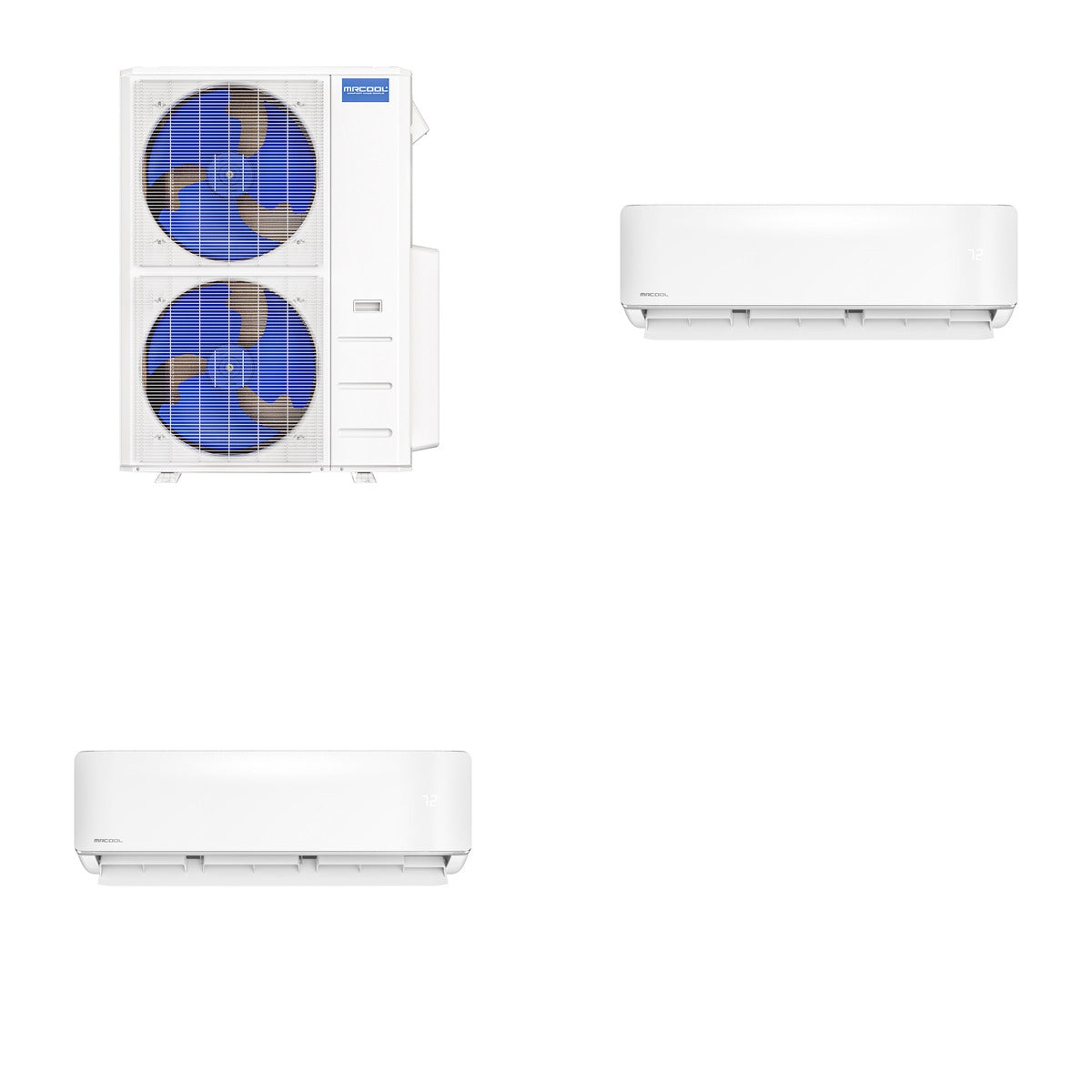

MRCOOL DIY Multi-Zone 55000 BTU 5th Gen Mini Split Heat Pump System R454B 22 SEER2 (9k+36k)

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling across multiple zones in your home or office. The MRCOOL DIY-MULTI6-55HP230D-O mini-split condenser serves as the powerhouse of the system, providing a robust 55,000 BTU capacity to manage up to six zones. Complementing this are the MRCOOL DIY-09-HP-WMAH-230D25-O and MRCOOL DIY-36-HP-WMAH-230D25-O ductless mini-split air handlers, which are designed for spaces of 400 and 1550 square feet respectively. With easy DIY installation and smart technology integration, this bundle ensures optimal comfort and energy efficiency throughout your space.

What's Included

• MRCOOL DIY-MULTI6-55HP230D-O - 55k Mini-Split Condenser (Qty x1)
• MRCOOL DIY-09-HP-WMAH-230D25-O - 9k BTU Ductless Mini-Split Air Handler (Qty x1)
• MRCOOL DIY-36-HP-WMAH-230D25-O - 36k Ductless Mini-Split Heat Pump (Qty x1)

Key Details

• Weight of Bundle: 370.4 lb (MRCOOL 267.5 lb + MRCOOL 35.0 lb + MRCOOL 67.9 lb)
• Cooling Capacity: 55,000 BTU (Condenser), 9,000 BTU (Air Handler), 36,000 BTU (Heat Pump)
• Heating Capacity: 55,000 BTU (Condenser), 9,000 BTU (Air Handler), 36,000 BTU (Heat Pump)
• SEER: 22
• Tonnage: 4.6 (Condenser), 3 (Heat Pump)
• Refrigerant Type: R-454B
• Size: 19.49 x 58.27 x 43.11 inches (Condenser), 36.02 x 14.37 x 16.34 inches (Air Handler), 18.74 x 16.57 x 53.94 inches (Heat Pump)
• Weight: 267.46 lbs (Condenser), 35.05 lbs (Air Handler), 67.9 lbs (Heat Pump)

Use & Compatibility

This bundle is ideal for residential or light commercial applications, providing efficient heating and cooling for multiple zones. The systems are compatible with MRCOOL's SmartHVAC app for easy temperature management and can be controlled via voice commands with Amazon Alexa or Google Assistant.
