MRCOOL DIY Multi-Zone 55000 BTU 5th Gen Mini Split Heat Pump System R454B 22 SEER2 (9k+9k+9k+12k+18k)

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling across multiple zones. The MRCOOL DIY-MULTI6-55HP230D-O mini-split condenser serves as the powerhouse, delivering 55,000 BTUs to manage up to six zones, making it perfect for larger spaces. Complementing this are three ductless air handlers: the 9K BTU, 12K BTU, and 18K BTU models, each designed for easy DIY installation without the need for specialized tools. Together, these components offer a complete solution for year-round climate control, featuring smart technology for remote operation and energy-efficient performance.

What's Included

• MRCOOL DIY-MULTI6-55HP230D-O - 55k Mini-Split Condenser (Qty x1)

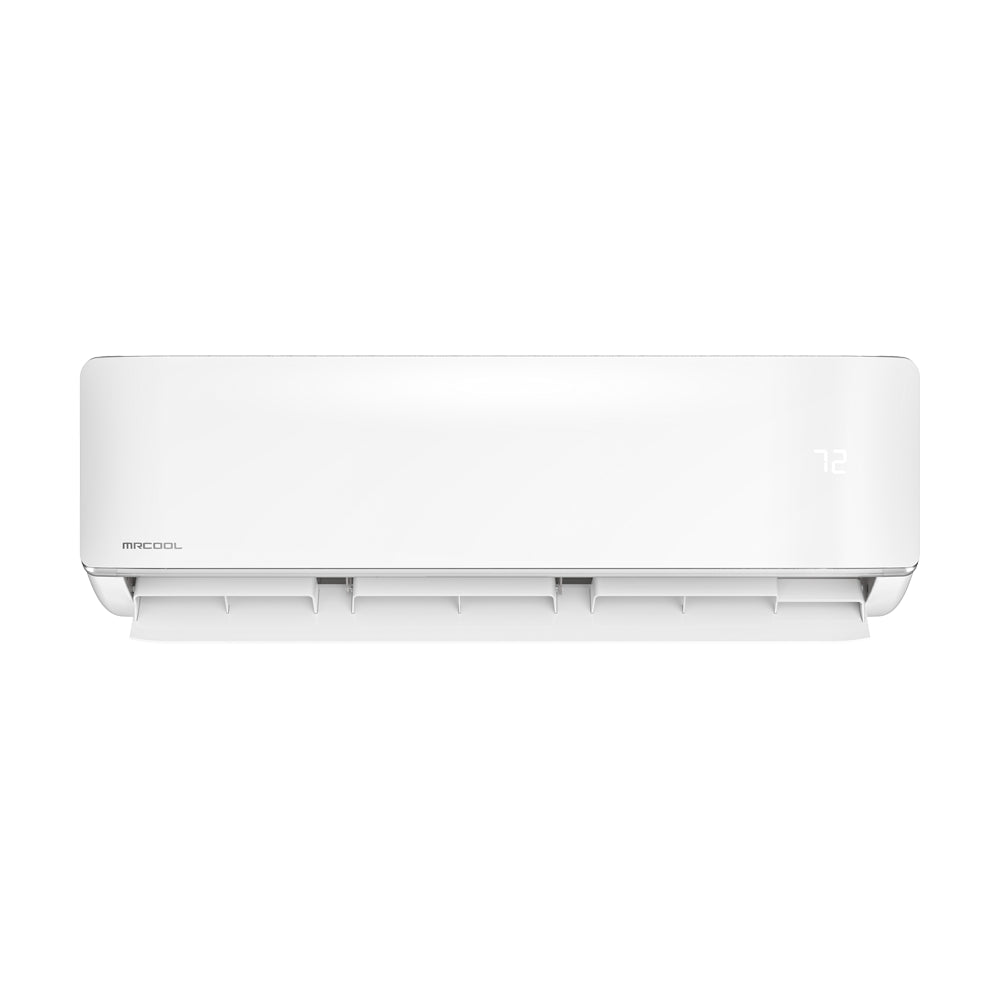

• MRCOOL DIY-09-HP-WMAH-230D25-O - 9k BTU Ductless Mini-Split Air Handler (Qty x3)
• MRCOOL DIY-12-HP-WMAH-230D25-O - 12k DIY Air Handler (Qty x1)
• MRCOOL DIY-18-HP-WMAH-230D25-O - 18K BTU Ductless Mini-Split Air Handler (Qty x1)

Key Details

• Weight of Bundle: 457.3 lb (MRCOOL 267.5 lb + MRCOOL 105.1 lb + MRCOOL 35.0 lb + MRCOOL 49.6 lb)
• Condenser SEER: 22
• Condenser Tonnage: 4.6
• Condenser Cooling Capacity: 47,000 BTU
• Condenser Heating Capacity: 55,000 BTU
• Air Handlers Cooling Capacity: 9,000 BTU (x3), 12,000 BTU (x1), 18,000 BTU (x1)
• Refrigerant Type: R-454B
• Condenser Dimensions: 19.49 x 58.27 x 43.11 inches
• Air Handlers Dimensions: 36.02 x 14.37 x 16.34 inches (9K & 12K), 46.73 x 14.29 x 17.68 inches (18K)
• Condenser Weight: 267.46 lbs
• Air Handlers Weight: 35.05 lbs (9K & 12K), 49.6 lbs (18K)

Use & Compatibility

This bundle is ideal for residential and commercial applications requiring efficient heating and cooling across multiple zones. The MRCOOL systems are compatible with various home layouts, allowing for customized climate control tailored to your specific needs.
