MRCOOL DIY Multi-Zone 27000 BTU 5th Gen Mini Split Heat Pump System R454B 23 SEER2 (9k+24k)

Description

This comprehensive HVAC bundle from MRCOOL is designed to provide efficient heating and cooling for multiple zones in your home or office. Featuring a powerful 27,000 BTU mini-split condenser and two ductless air handlers (9K BTU and 24K BTU), this system is perfect for spaces ranging from 400 to 1,200 square feet. The DIY installation process allows you to save on labor costs, while the SmartHVAC app compatibility offers modern convenience with voice control and scheduling options. Enjoy year-round comfort with this versatile and user-friendly setup.

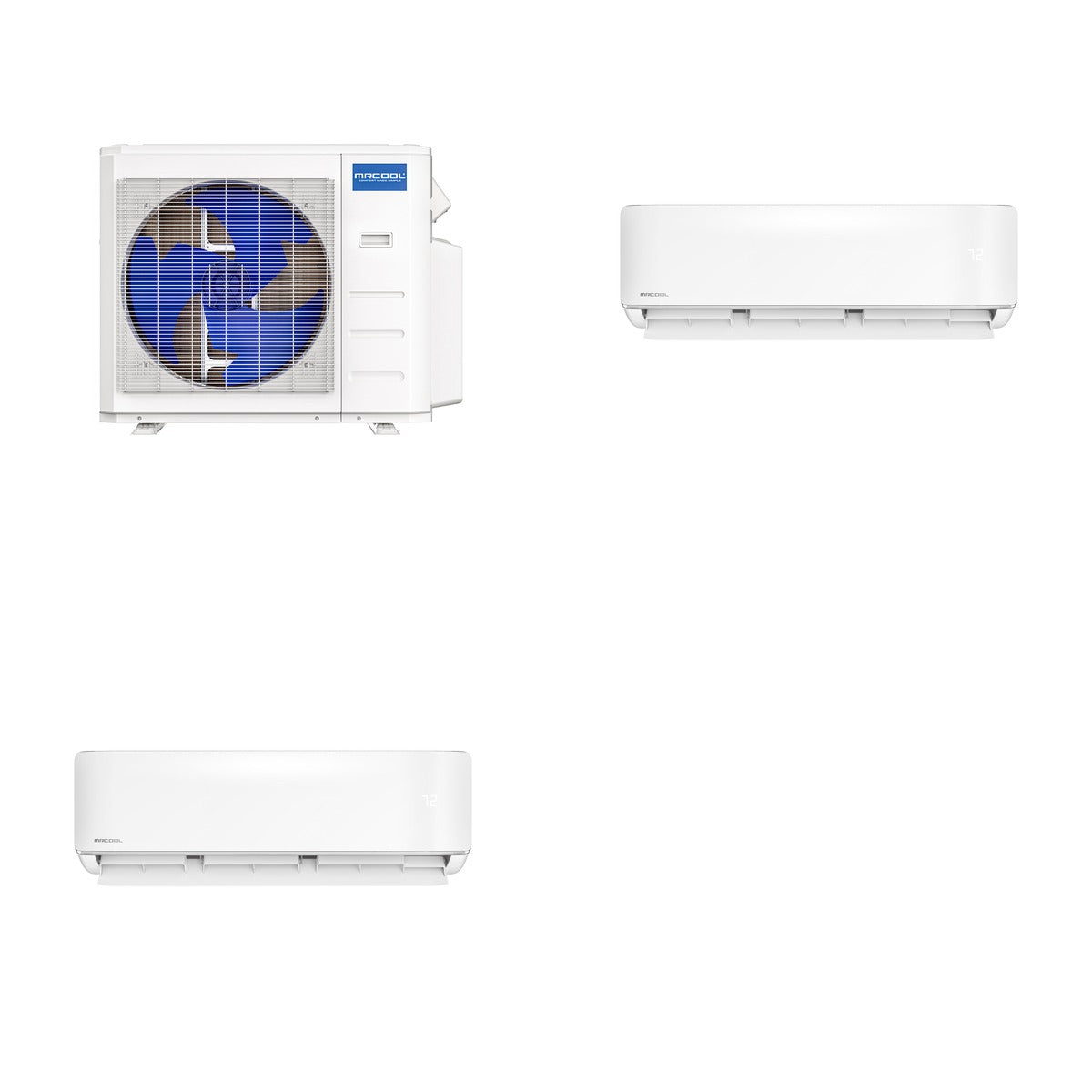

What's Included

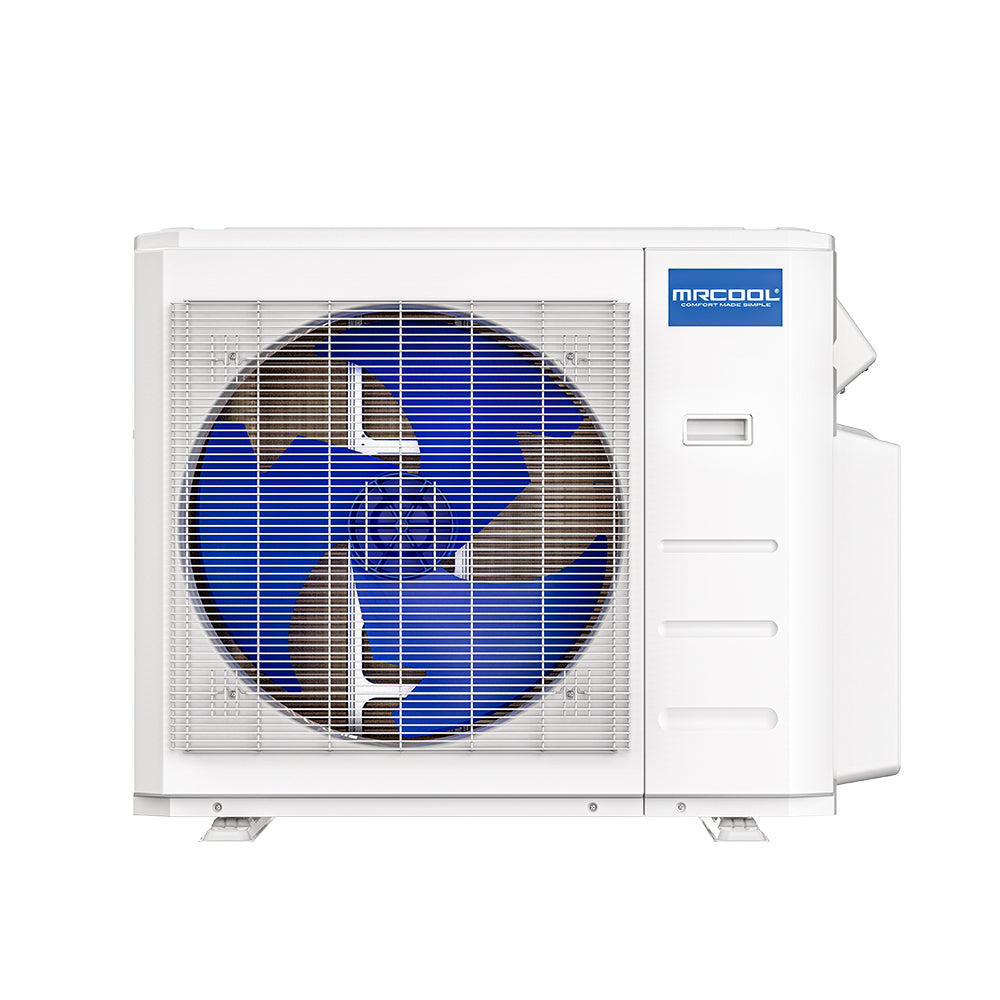

• MRCOOL DIY-MULTI4-27HP230D-O - 27k BTU 4 Zone Multi-Zone Mini-Split Condenser R-454B (Qty x1)
• MRCOOL DIY-09-HP-WMAH-230D25-O - 9k BTU Ductless Mini-Split Air Handler (Qty x1)
• MRCOOL DIY-24-HP-WMAH-230D25-O - 24k Mini-Split Air Handler 230v (Qty x1)

Key Details

• Weight of Bundle: 235.9 lb (MRCOOL 151.0 lb + MRCOOL 35.0 lb + MRCOOL 49.8 lb)
• Cooling Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 24,000 BTU (Air Handler)
• Heating Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 24,000 BTU (Air Handler)
• SEER2 Rating: 23
• HSPF2 Rating: 9.5
• Tonnage: 2.25 (Condenser), 2 (Air Handler)
• Refrigerant Type: R-454B
• Voltage: 230V
• Dimensions: Condenser - 42.91 x 34.84 x 19.69 inches; 9K Air Handler - 36.02 x 14.37 x 16.34 inches; 24K Air Handler - 46.73 x 14.29 x 17.68 inches
• Weight: Condenser - 151.02 lbs; 9K Air Handler - 35.05 lbs; 24K Air Handler - 49.82 lbs

Use & Compatibility

This bundle is ideal for residential or light commercial applications, providing efficient climate control across multiple zones. The systems are compatible with various home setups, allowing for easy integration into existing HVAC configurations.
