MRCOOL DIY Multi-Zone 27000 BTU 5th Gen Mini Split Heat Pump System R454B 23 SEER2 (9k+18k)

Description

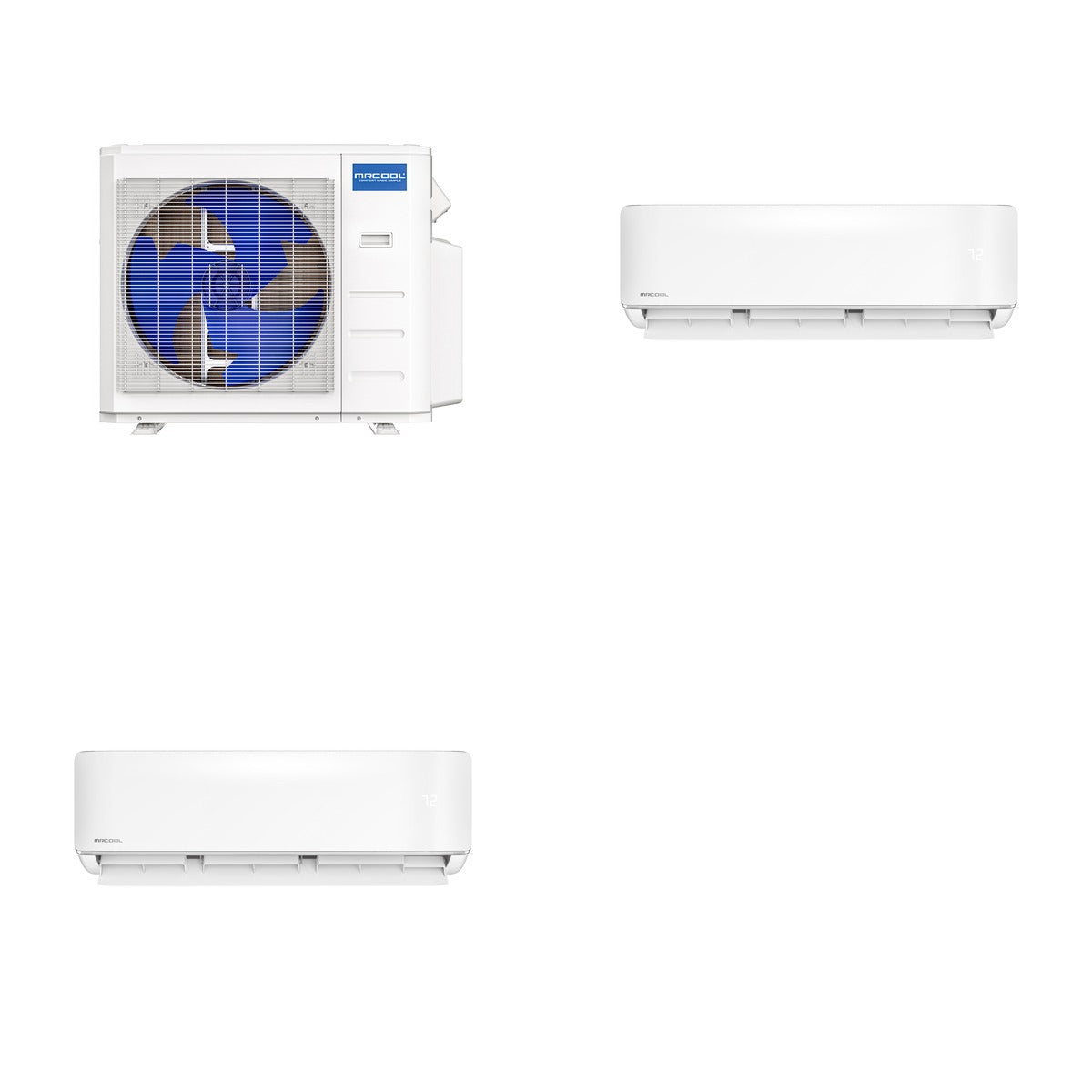

This bundle features the MRCOOL DIY multi-zone mini-split system, designed for efficient heating and cooling across multiple spaces. The 27,000 BTU condenser can support up to four zones, making it ideal for larger areas. Complementing this are two ductless air handlers: a 9K BTU unit for smaller rooms and an 18K BTU unit for medium-sized spaces. Together, these components provide a comprehensive solution for year-round climate control, allowing for easy installation and smart technology integration.

What's Included

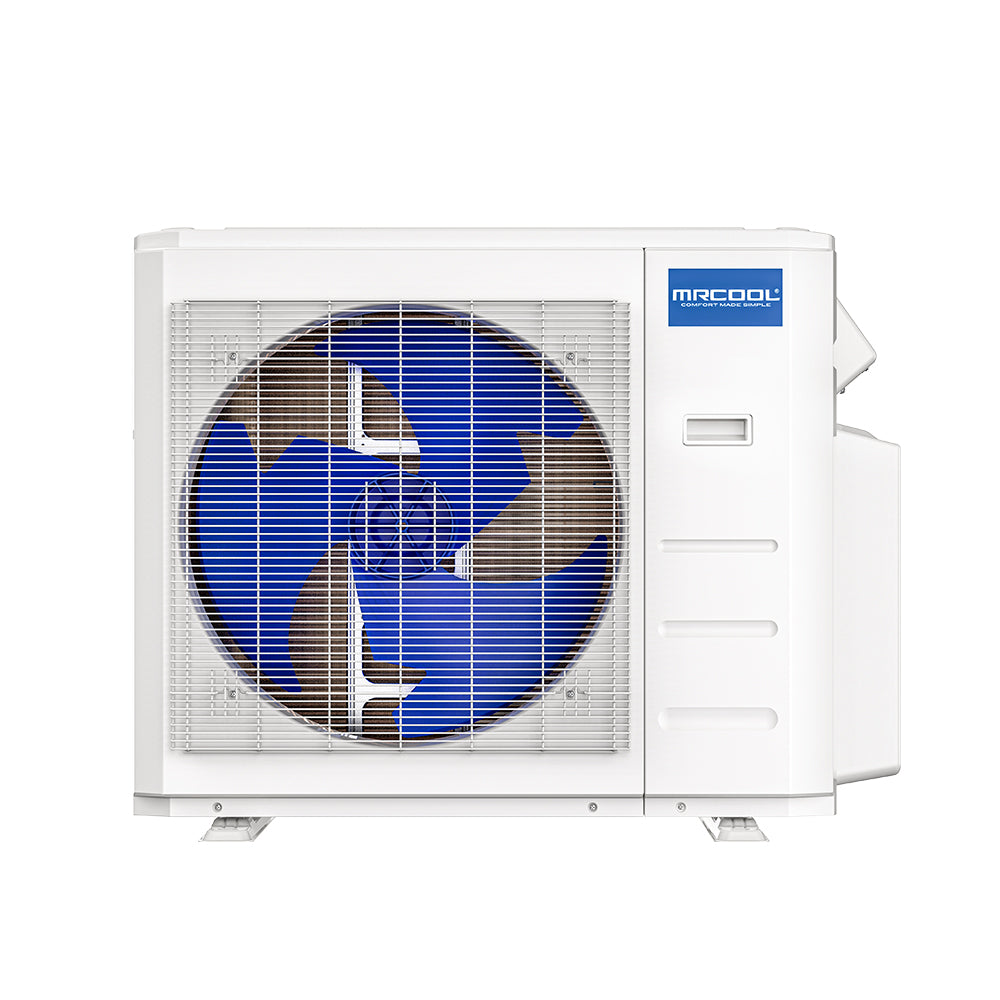

• MRCOOL DIY-MULTI4-27HP230D-O - 27k BTU 4 Zone Multi-Zone Mini-Split Condenser R-454B (Qty x1)
• MRCOOL DIY-09-HP-WMAH-230D25-O - 9k BTU Ductless Mini-Split Air Handler (Qty x1)
• MRCOOL DIY-18-HP-WMAH-230D25-O - 18k BTU Ductless Mini-Split Air Handler (Qty x1)

Key Details

• Weight of Bundle: 235.7 lb (MRCOOL 151.0 lb + MRCOOL 35.0 lb + MRCOOL 49.6 lb)
• Cooling Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 18,000 BTU (Air Handler)
• Heating Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 18,000 BTU (Air Handler)
• SEER2 Rating: 23
• HSPF2 Rating: 9.5
• Refrigerant Type: R-454B
• Zone Capacity: 4
• Tonnage: 2.25 (Condenser), 1.5 (Air Handler), 0.75 (Air Handler)
• Dimensions: 19.69 x 34.84 x 42.91 inches (Condenser), 36.02 x 14.37 x 16.34 inches (9K Air Handler), 46.73 x 14.29 x 17.68 inches (18K Air Handler)
• Weight: 151.02 lbs (Condenser), 35.05 lbs (9K Air Handler), 49.6 lbs (18K Air Handler)

Use & Compatibility

This bundle is perfect for residential or light commercial applications, providing efficient heating and cooling for various room sizes. The multi-zone system is compatible with the SmartHVAC app, allowing for easy control and scheduling, while the air handlers are designed for seamless integration with the condenser.
