MRCOOL DIY Multi-Zone 27000 BTU 5th Gen Mini Split Heat Pump System R454B 23 SEER2 (9k+12k)

Description

This comprehensive HVAC bundle is designed for those seeking efficient climate control across multiple zones in their home or office. Featuring the MRCOOL DIY-MULTI4-27HP230D-O 27k BTU condenser, this system can effectively heat and cool up to four separate areas, making it perfect for larger spaces. Paired with two ductless mini-split air handlers, the MRCOOL DIY-09-HP-WMAH-230D25-O and MRCOOL DIY-12-HP-WMAH-230D25-O, this bundle provides a total of 30,000 BTUs of heating and cooling power. The DIY installation process allows for easy setup without the need for specialized tools, making it a cost-effective solution for homeowners. With advanced features like smart device compatibility and voice control, this bundle ensures comfort and convenience year-round.

What's Included

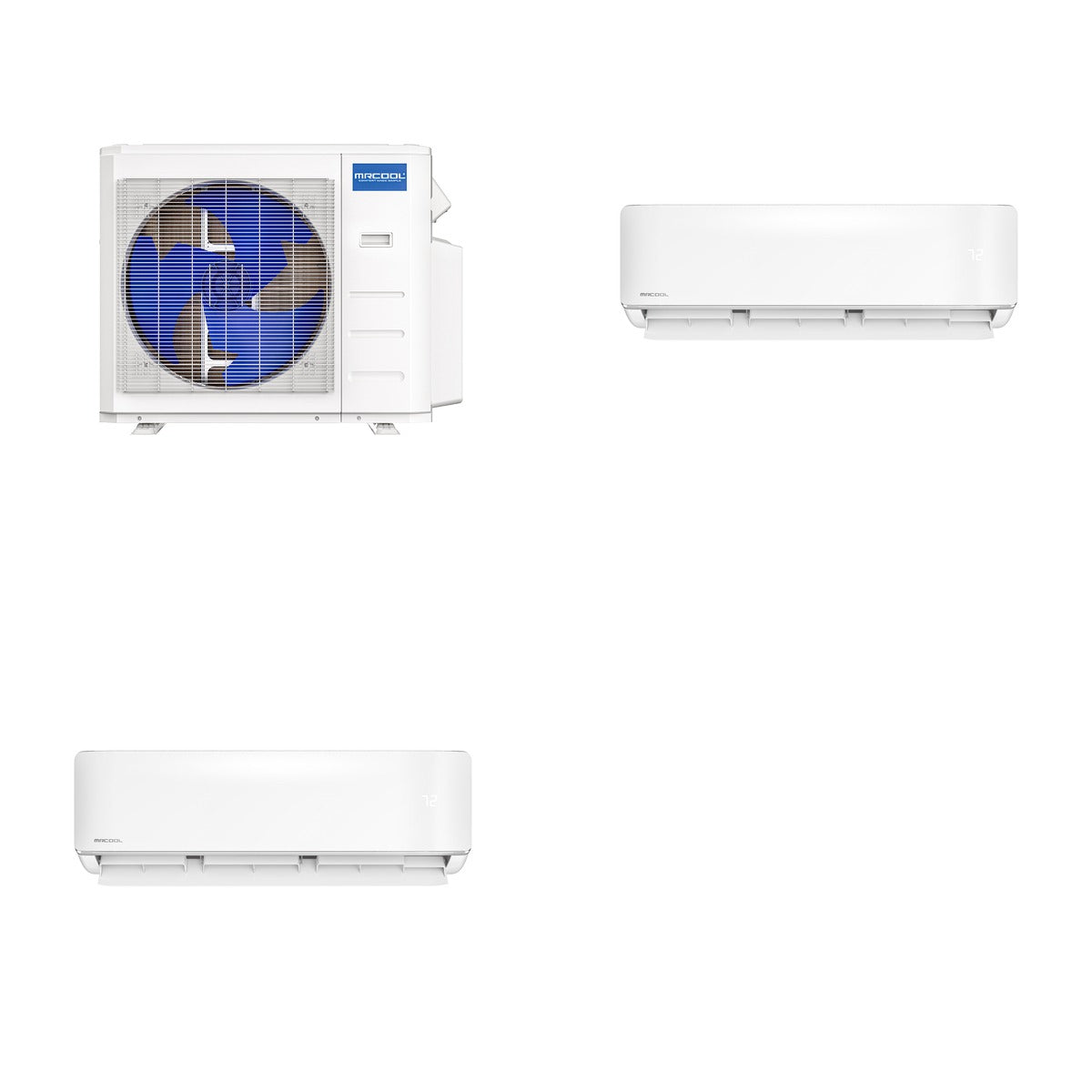

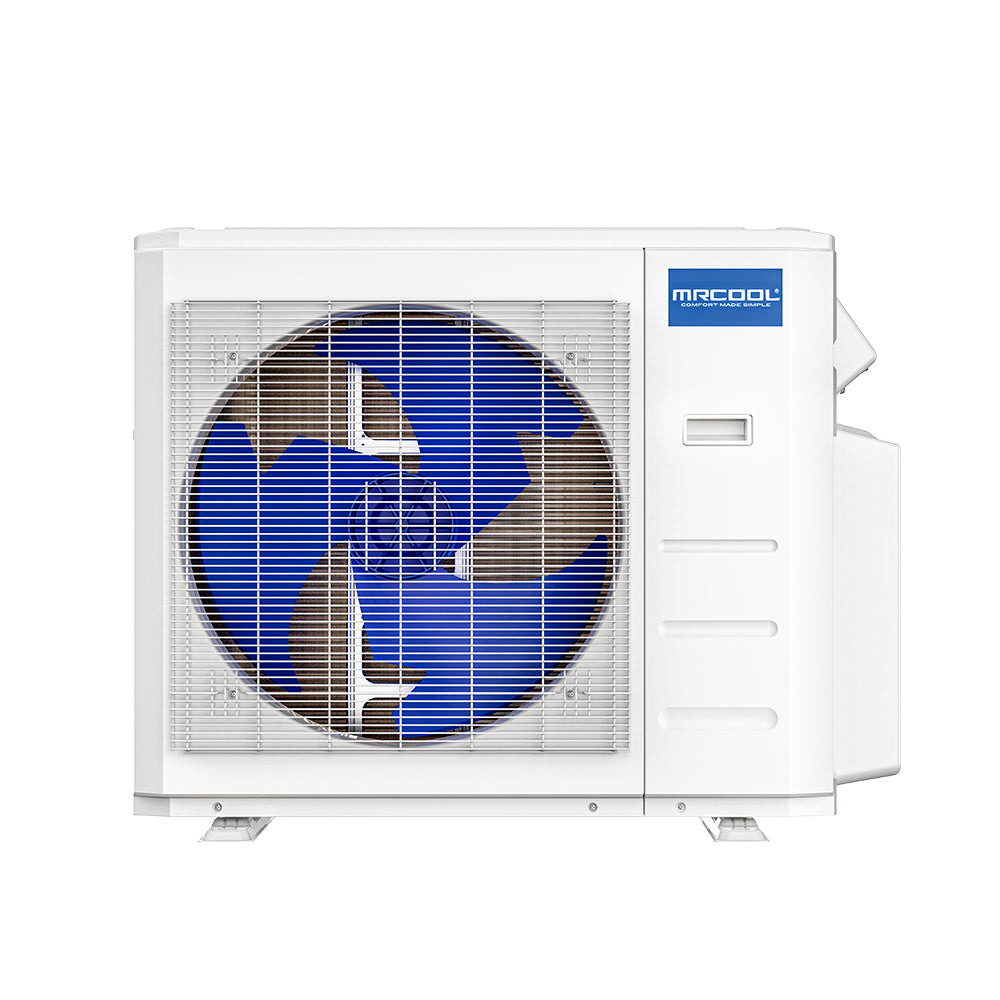

• MRCOOL DIY-MULTI4-27HP230D-O - 27k BTU 4 Zone Mini-Split Condenser R-454B (Qty x1)
• MRCOOL DIY-09-HP-WMAH-230D25-O - 9k BTU Ductless Mini-Split Air Handler (Qty x1)
• MRCOOL DIY-12-HP-WMAH-230D25-O - 12k DIY Air Handler 230v (Qty x1)

Key Details

• Weight of Bundle: 221.1 lb (MRCOOL 151.0 lb + MRCOOL 35.0 lb + MRCOOL 35.0 lb)
• Cooling Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• Heating Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• SEER2 Rating: 23
• HSPF2 Rating: 9.5
• Refrigerant Type: R-454B
• Voltage: 230V
• Zone Capacity: 4
• Dimensions (Condenser): 19.69" D x 34.84" H x 42.91" W
• Dimensions (Air Handlers): 16.34" D x 14.37" H x 36.02" W
• Weight: 151.02 lbs (Condenser), 35.05 lbs (Air Handlers)

Use & Compatibility

This bundle is ideal for residential or light commercial applications, providing efficient heating and cooling for multiple zones. The MRCOOL systems are compatible with various smart devices, allowing for easy control and scheduling through the SmartHVAC app. Perfect for spaces ranging from 400 to 1,200 square feet, this system is designed for easy DIY installation, making it accessible for homeowners looking to enhance their climate control without professional assistance.
