MRCOOL DIY Multi-Zone 18000 BTU 5th Gen Mini Split Heat Pump System R454B 23.9 SEER2 (12k+12k)

Description

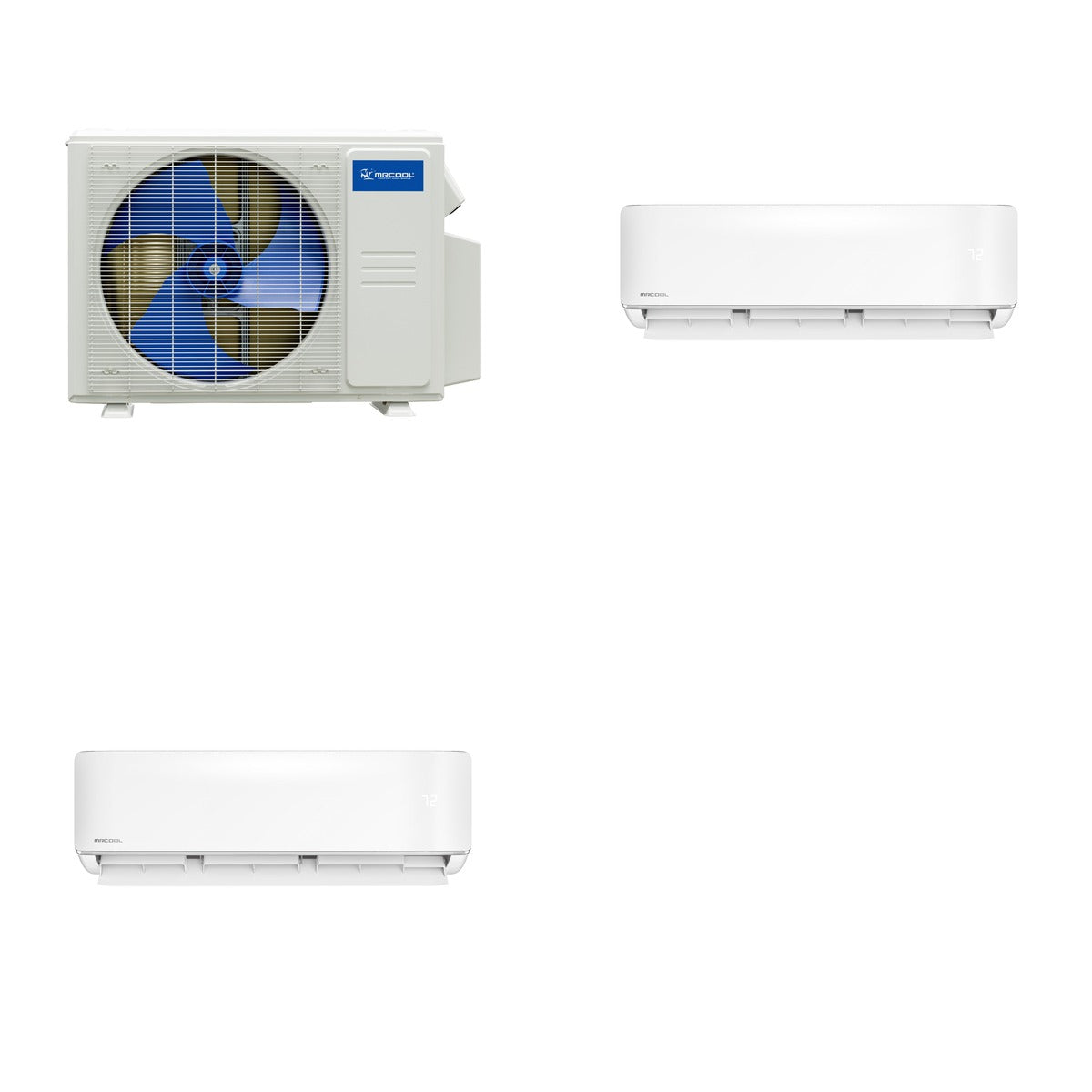

This bundle includes the MRCOOL DIY-MULTI3-18HP230D-O Mini-Split Condenser and two MRCOOL DIY-12-HP-WMAH-230D25-O Air Handlers, providing a complete solution for efficient heating and cooling in multi-zone environments. The condenser offers a powerful 18,000 BTU capacity, while the air handlers are designed for spaces up to 550 square feet each, allowing for personalized climate control. With easy DIY installation and smart home compatibility, this bundle is perfect for homeowners looking to enhance their comfort without the need for professional installation.

What's Included

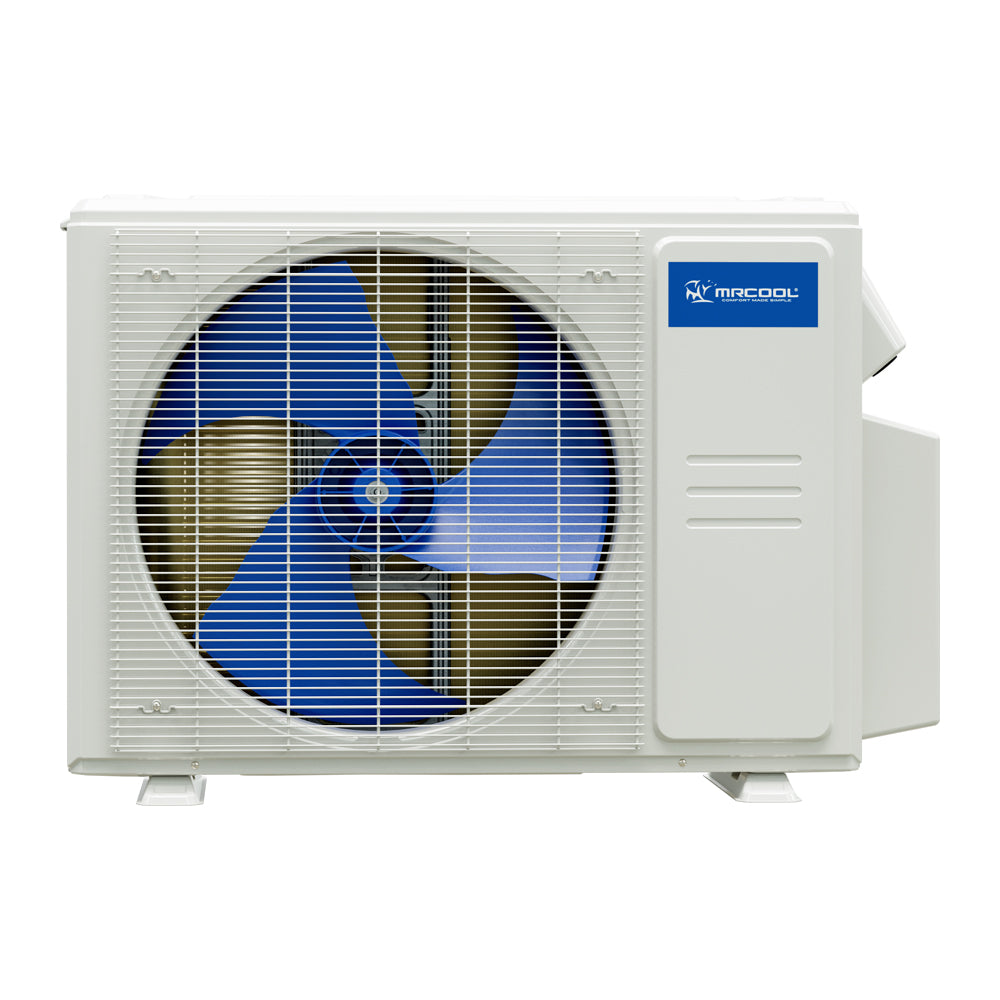

• MRCOOL DIY-MULTI3-18HP230D-O - Mini-Split Condenser 230V (Qty x1)
• MRCOOL DIY-12-HP-WMAH-230D25-O - 12k DIY Air Handler 230V (Qty x2)

Key Details

• Weight of Bundle: 179.7 lb (MRCOOL 109.6 lb + MRCOOL 70.1 lb)
• Cooling Capacity: 18000 BTU
• Heating Capacity: 18000 BTU
• SEER2: 23.9
• HSPF2-4: 10
• Zone Capacity: 3
• Refrigerant Type: R-454B
• Air Handler Coverage: Up to 550 sq ft each
• Condenser Dimensions: 17.24 x 29.53 x 40.55 inches
• Air Handler Dimensions: 16.34 x 14.37 x 36.02 inches
• Condenser Weight: 109.57 lbs
• Air Handler Weight: 35.05 lbs

Use & Compatibility

This bundle is intended for residential use, providing efficient heating and cooling for multiple zones in your home. The mini-split system is compatible with the included air handlers, allowing for flexible installation and control in different areas of your living space.
