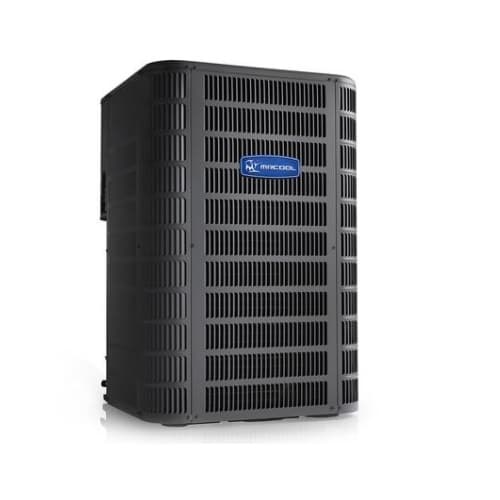

MRCOOL MHP15048A Signature 4 Ton 15 SEER Central Heat Pump Condenser

Product Description

The MRCOOL Signature Central Heat Pump Condenser MHP15048A efficiently integrates with a compatible air handler or coil for effective climate control in residential settings. This unit provides both cooling for summer and heating for winter.

• Equipped with a single-stage compressor and robust aluminum coil.
• Comes pre-charged with R-410A refrigerant for line sets up to fifteen feet.
• ETL and ETLC approved, and AHRI Certified for safety and performance.

Product Highlights

This heat pump is designed for efficient operation across different settings and climates.

Product Information

Standard Information

• Model: MHP15048A
• Manufacturer: MRCOOL

Technical Specifications

• Cooling Capacity: 4 Ton
• Cooling Efficiency: 15 SEER
• Heat Pump Efficiency (HSPF): 8.2
• Primary Heating Capacity: 45,001 - 50,000 BTU
• Voltage: 240
• Electrical Phase: 1-Phase
• Refrigerant: R-410A
• Compressor: Single Stage
• System Application Type: Central Split Systems
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Max Overcurrent Protection: 50 amps
• Dimensions (L x W x H): 32.25 inches x 32.25 inches x 37 inches
• Weight: 273 lbs
• Avg Coverage Area: 2,000 - 2,400 Sq Ft
• Warranty: 10 Year Parts, 10 Year Compressor
