Product Description

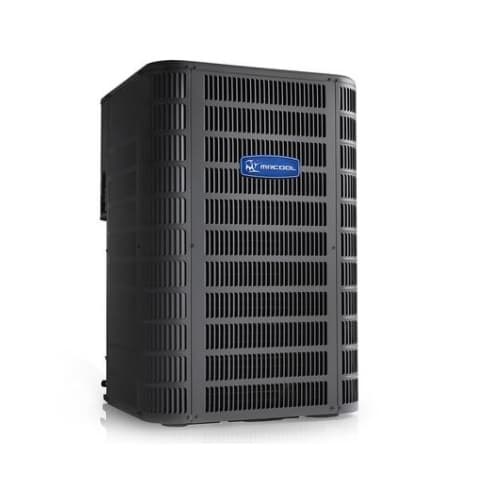

The MRCOOL Signature Series 3.5 Ton Heat Pump MHP15042A is suitable for central split systems. This heat pump condenser provides both heating and cooling capabilities efficiently and reliably.
- Features a single-stage compressor.
- Pre-charged with R-410A refrigerant for a fifteen-foot line set.
- Includes a compressor sound blanket for quiet operation.
Product Highlights
This unit offers a durable construction with a louvered design, ensuring reliable performance and protecting against the elements. It is ETL and ETLC approved and AHRI Certified.
Product Information
Standard Information
-
Brand: MRCOOL
-
MPN: MHP15042A
Technical Specifications
-
Cooling Capacity: 3.5 Ton
-
Heat Pump Efficiency (HSPF): 8.2
-
Cooling Efficiency: 15 SEER
-
Primary Heating Capacity: 40,001 - 45,000 BTU
-
Voltage: 240
-
Electrical Phase: 1-Phase
-
Refrigerant: R-410A
-
Max Overcurrent Protection: 40 amps
-
System Application Type: Central Split Systems
-
Compressor: Single Stage
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 3/8 inch
-
Suction Line Size: 7/8 inch
-
Dimensions (L x W x H): 32.25 inches x 32.25 inches x 36.25 inches
-
Weight: 272 lb
-
Avg Coverage Area: 1,750 - 2,100 Sq Ft
-
Warranty: 10 Year Parts, 10 Year Compressor
-
Region Compatibility: North
-
Certifications: ETL, ETLC, and AHRI certified
-
Weather-Resistant Construction: Louvered design with baked polyester finish over galvanized steel
-
Raised Coil Design: Prevents debris blockage for improved airflow
-
Corrosion-Resistant Coil: CoolGuard advanced protection technology
-
Easy Maintenance: 4-screw louver panels, corner-mounted controls, and 45-degree offset valves
-
High-Efficiency Coil: Enhanced tube-and-fin design for superior heat transfer
-
Quick Serviceability: Thread-on pressure switches for fast replacement
-
Pre-Charged Refrigerant: Designed for 15 feet of line set
-
Quiet Operation: Heavy-duty compressor sound blanket minimizes noise
-
Overload Protection: Internal safeguards against high-temperature conditions
-
Factory-Installed Filter Drier: Enhances system reliability
