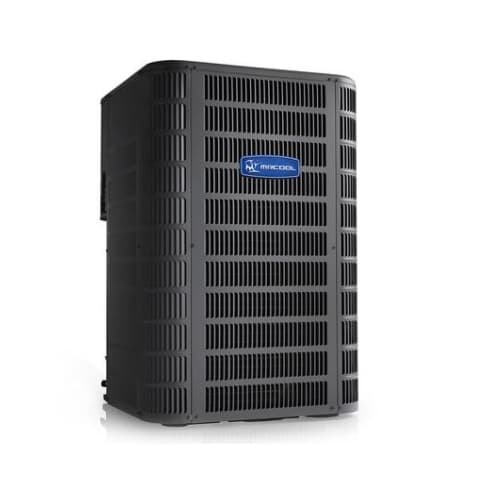

MRCOOL MHP15036A Signature Series 3 Ton Heat Pump Condenser System

Product Description

The MRCOOL Signature Series 3 Ton Heat Pump Condenser MHP15036A provides reliable home comfort and energy efficiency. Designed with a tube-and-fin coil system, it ensures effective heat transfer. The unit has a durable louvered design and a baked polyester finish over galvanized steel for weather resistance. This condenser is ETL and AHRI certified, ensuring quality and performance.

• Tube-and-fin coil design for optimal heat transfer efficiency.
• Weatherproof construction with louvered casing.
• Pre-charged for a fifteen-foot line set, includes a filter drier.

Product Highlights

This heat pump condenser features a compressor sound blanket that reduces operational noise, enhancing the comfort of your living environment.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MHP15036A

Technical Specifications

• Tonnage: 3
• Cooling Capacity: 34000 BTU
• Heating Capacity: 33800 BTU
• SEER: 15
• EER: 12
• HSPF: 8.2-8.5
• CFM: 1200-1275
• Voltage: 208-230
• Phase: 1
• Cycle: 60
• Refrigerant Type: R-410A
• Refrigerant Volume: 150
• Decibel Rating: 76
• Min Ambient Cool: 55
• Max Line Set Length: 50ft
• Liquid Line Size: 3/8 inches
• Suction Line Size: 7/8 inches
• Compressor Motor Type: Scroll
• Condenser Fan Motor Type: Direct Drive
• Condenser Fan Motor HP: 1/6
• Metering Device: TXV
• Auxiliary Heater Sizes: 7.5kw, 10kw, 15kw
• Dimensions: 28.50 inches x 28.50 inches x 42.50 inches
• Weight: 202 lbs
• Max Fuse Breaker: 30
• Min Circuit Ampacity: 18.7
• Compressor: Single Stage
• System Application Type: Central Split Systems
