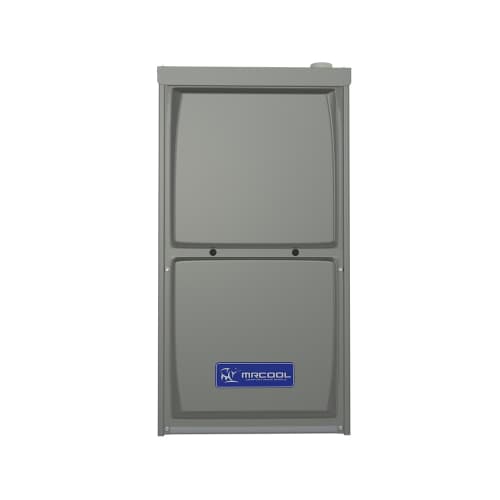

MRCOOL MGM96SE045B3XA MRCOOL Signature Series 96% AFUE 45k BTU Gas Furnace

Product Description

The MRCOOL Signature Series 96% AFUE 45k BTU gas furnace, model MGM96SE045B3XA, provides efficient heating. This furnace achieves a high AFUE rating of 96 percent, ensuring effective energy use. It features a multi-speed blower motor and an aluminized steel primary heat exchanger. The unit includes aluminized steel in-shot burners complemented by a silicon nitride ignitor, offering reliable performance. The compact design allows flexible installation options with left or right utility connections and zero-step horizontal conversion. Compatible with PVC pipe venting, this furnace is suitable for direct and non-direct applications. An optional LP kit is available for conversion to liquid propane.

• Multi-speed high-efficiency blower motor
• Aluminized steel primary heat exchanger
• Left or right utility connection options

Product Highlights

The MRCOOL MGM96SE045B3XA is designed for those seeking efficient heating solutions in residential settings.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MGM96SE045B3XA

Technical Specifications

• Model: MGM96SE045B3XA
• Efficiency: 96% AFUE
• Heating Capacity: 44,000 BTU Input / 42,800 BTU Output
• Tonnage: 3 Ton
• Airflow: 1200 CFM
• Fuel Type: Natural Gas (LP Kit Available)
• Blower Motor: Multi-Speed
• Ignition: Silicon Nitride
• Heat Exchanger: Aluminized Steel
• Venting: PVC Pipe Compatible
• Voltage: 120V
• Max Overcurrent Protection: 15 amps
• Dimensions (WxHxD): 17.5 x 33 x 29
• Weight: 124 lbs
• Certifications: AHRI Certified
• Warranty: 10-Year Parts Warranty / Lifetime Heat Exchanger Warranty
• UPC: 840255553308
• AHRI Number: 209832540
• Product Height: 33 inches
• Product Length: 29 inches
• Configuration: Floor Mounted
• Product Width: 17.5 inches
• Air Flow Direction: Horizontal, Upflow
• Avg Coverage Area: 750 - 900 Sq Ft
• Electrical Phase: 1-Phase
• Exhaust Pipe: PVC
• Gas Valve: Single Stage
• Primary Heating Capacity: 40,001 - 45,000 BTU
• Series: Signature
• System Application Type: Central Split Systems
• Vent Connection: 2 inches, 3 inches
