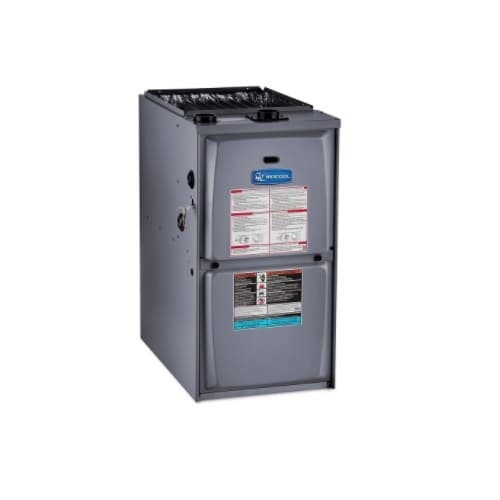

MRCOOL MGM95SE070B3XA 95% AFUE Multi-Position Gas Furnace

Product Description

The MRCOOL MGM95SE070B3XA is a multi-position gas furnace with a 95% AFUE rating. This unit can be installed for upflow or horizontal applications, offering flexibility to suit various setup requirements. It features a multi-speed ECM motor for optimal efficiency. The furnace includes an aluminized steel primary heat exchanger and a stainless steel secondary heat exchanger ensuring durability and long service life.

• Multi-speed high efficiency blower motor.
• Self-diagnostics saving last 10 fault codes during power interruptions.
• Designed with standardized widths for easy coil installation.

Product Highlights

This gas furnace is ideal for residential heating needs, ensuring consistent warmth and energy efficiency.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MGM95SE070B3XA

Technical Specifications

• BTU: 70,000 BTU
• AFUE: 95%
• Air Flow Direction: Horizontal, Upflow
• Heating Capacity: 66,000 BTU Input / 64,000 BTU Output
• Cooling Compatibility: 3 Ton
• Fuel Source: Natural Gas
• Gas Connection Size: 1/2 Inches
• Voltage: 120 Volts
• Electrical Phase: 1-Phase
• Max Overcurrent Protection: 15 amps
• Horsepower: 1/2 hp
• Blower Motor: Multi-Speed ECM
• Speeds: 5 Speed
• System Application Type: Central Split Systems
• Vent Connection: 2 inches, 3 inches
• Weight: 128 lbs
• Dimensions (L x W x H): 28.50 inches x 17.50 inches x 33.00 inches
• Efficiency: 95% AFUE
• Airflow: 1215 CFM
• Ignition: Silicon Nitride
• Heat Exchanger: Aluminized Steel / AL 29-4C Stainless Steel
• Venting: 2-inch PVC Pipe Compatible
• Certifications: AHRI Certified, CSA Certified
• Hertz: 60 Hz
• Phase: 1 Phase
