Product Description

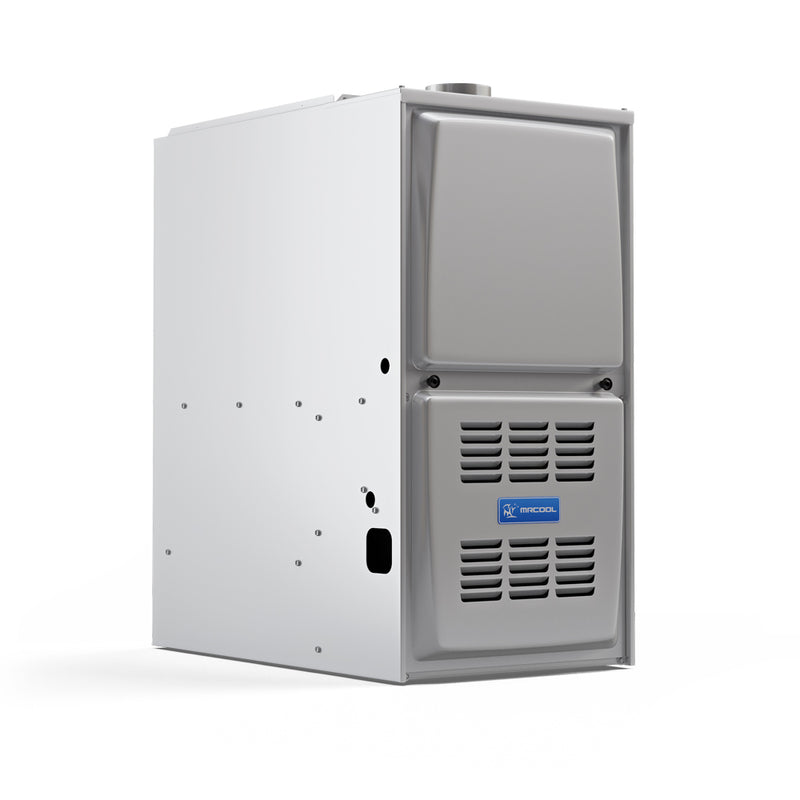

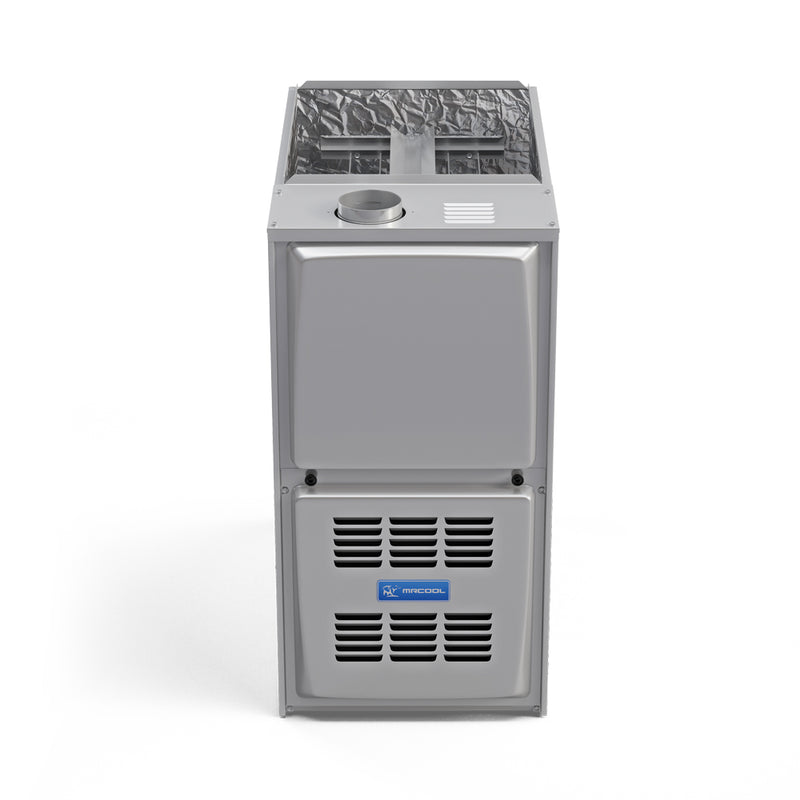

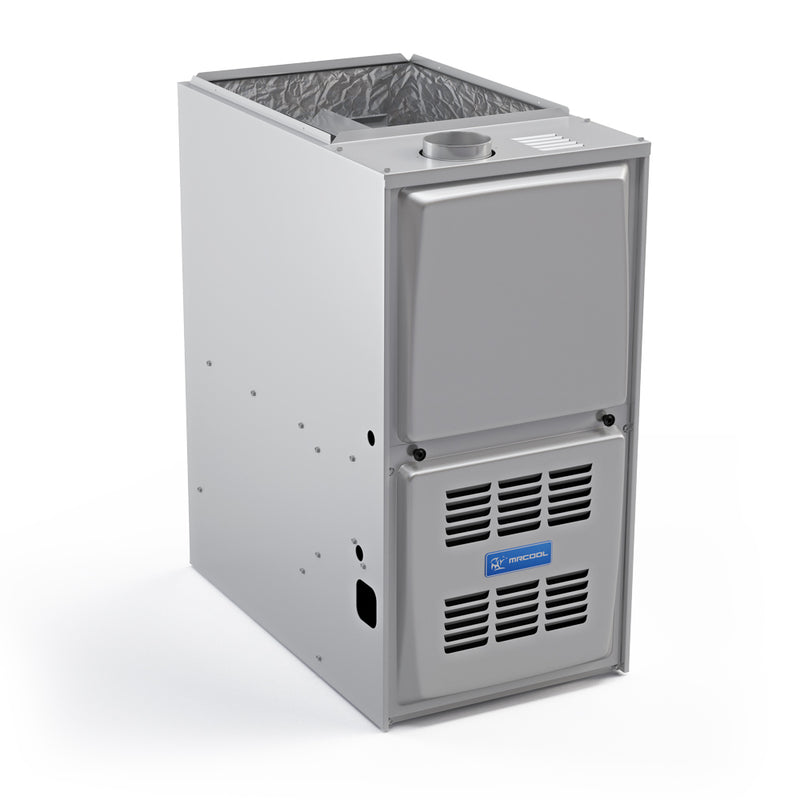

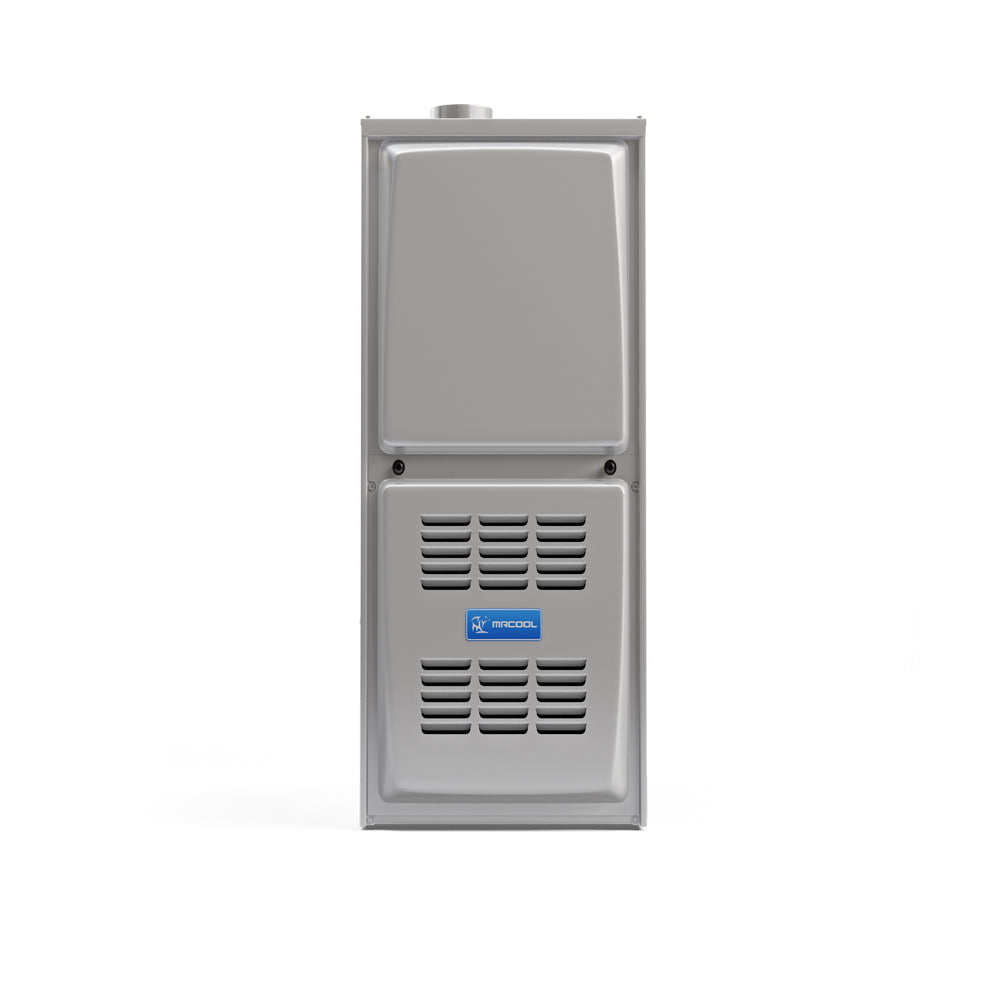

The MrCool MGM80SE070B3A is an 80% AFUE gas furnace with a 70K BTU capacity and 1200 C. Designed for upflow or horizontal installation, this single-stage furnace features a multi-speed ECM motor. It provides efficient heating, converting 80% of fuel into effective heat. The system is designed for long-term operation and affordability.
- Features a removable floor base for bottom return air.

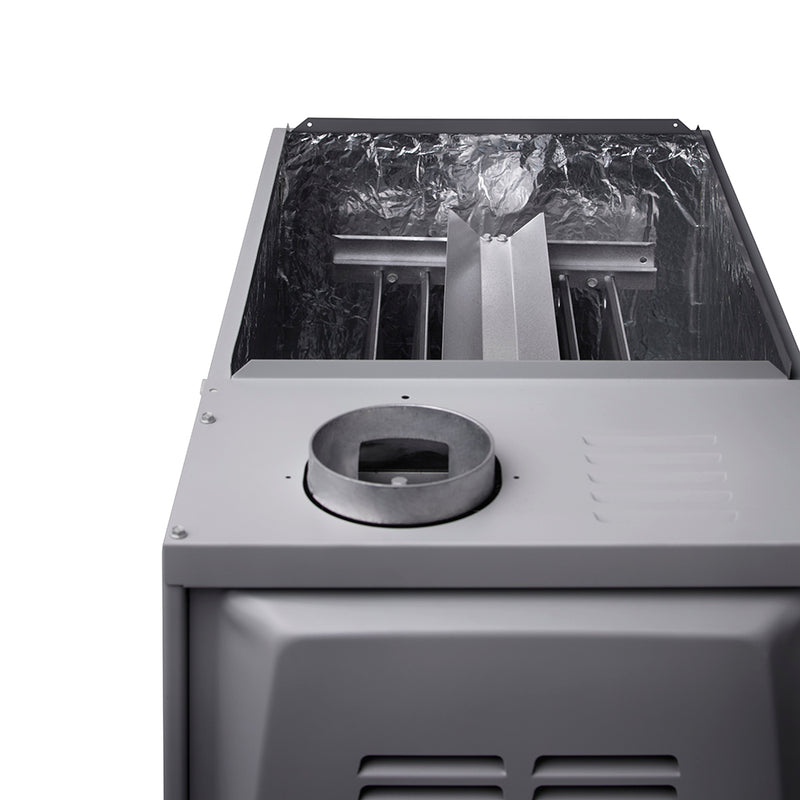

- Includes an easily removable slide-out blower design.
- Offers left or right utility connections.
Product Highlights
This MrCool gas furnace provides reliable heating with an 80% AFUE rating, ensuring efficient energy use and consistent performance.
Product Information
Standard Information
-
Brand: MRCOOL
-
Manufacturer Part Number: MGM80SE070B3A
Technical Specifications
-
MPN: MGM80SE070B3A
-
Encompass SKU: MRCMGM80SE070B3A
-
Brand: MRCOOL
-
UPC: 811000000000
-
Category 1: Gas Furnace
-
AFUE: 80%
-
CFM: 1245
-
Tonnage: 3
-
Heating Capacity: 66,000 BTU
-
Fuel Type: Natural Gas
-
BTU Input: 66000
-
BTU Output: 52800
-
Voltage: 120
-
Phase: 1
-
Cycle: 60
-
Stage: Single
-
Max Fuse Breaker: 15
-
Min Circuit Ampacity: 6.8
-
Full Load: 6.8
-
Number Of Speeds: 5 Speed
-
Number Of Burners: 6
-
GAS Connection Size: 0.5
-
Blower Motor Type: ECM
-
Blower Motor HP: 1/2
-
Blower Motor Speeds: 5
-
Blower Motor RPM: 695-1245
-
Heat Exchanger Type: Aluminized steel
-
Ignition Type: Silicon Nitride Ignitor
-
Vent Connector: 4 inch
-
LP KIT Included: No
-
LP KIT Available: Yes
-
CSA Certified: Yes
-
ISO Certified: No
-
Energy Star Compliant: No
-
Energy Star Certified: No
-
AHRI Certified: Yes
-
Has Batteries: No
-
Contains Electronics: Yes
-
Contains Chemicals: No
-
Contains Aerosol: No
-
Contains Compressed GAS: No
-
Proposition 65 Warning: Yes
-
Restricted States: Yes (California)
-
Net Weight: 127 lbs
