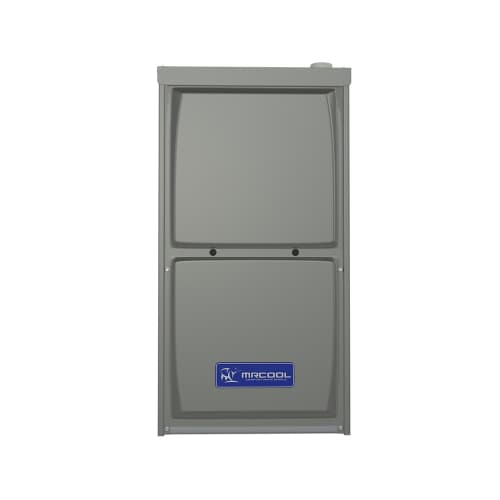

MRCOOL MGD96SE045B3XA MRCOOL Signature Series 96% AFUE 45k BTU Downflow Furnace

Product Description

The MRCOOL Signature Series MGD96SE045B3XA is a downflow furnace with a 96% AFUE rating and heating capacity of 45,000 BTU. This furnace is suitable for both direct and non-direct vent applications. It includes a multi-speed high-efficiency blower motor and features an aluminized steel primary heat exchanger with crimped, non-welded construction which enhances durability.

• 96% AFUE rating ensures high efficiency
• Compact design for easy installation
• Includes a silicon nitride ignitor

Product Highlights

The downflow configuration works well for spaces with limited units. It is designed for quick installation with left or right utility connection options, making it flexible for various settings.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MGD96SE045B3XA

Technical Specifications

• Heating Capacity: 45,000 BTU Input / 42,000 BTU Output
• AFUE: 96%
• Airflow (CFM): 1245
• Tonnage: 3 Ton
• Fuel Type: Gas (Optional LP Conversion Kit Available)
• Blower Motor: Multi-Speed High-Efficiency
• Speeds: 5 Speed
• Horsepower: 1/2 hp
• Ignition System: Durable Silicon Nitride Ignitor
• Heat Exchanger: Aluminized Steel, Crimped Non-Welded Construction
• Gas Valve: Single-Stage
• Venting: Direct and Non-Direct Vent (PVC Compatible)
• Input Voltage: 120V
• Electrical Phase: 1 Ph
• Hertz: 60 Hz
• Max Fuse Breaker: 15A
• Full Load Amps: 6.8A
• Gas Connection Size: 1/2 in
• Installation: Compact 33 Design, Left or Right Utility Connection
• Dimensions (WxHxD): 17.5 x 33 x 29
• Weight: 126 lbs
• Certifications: AHRI Certified
• Refrigerant: R-410A
• Power Type: Natural Gas
