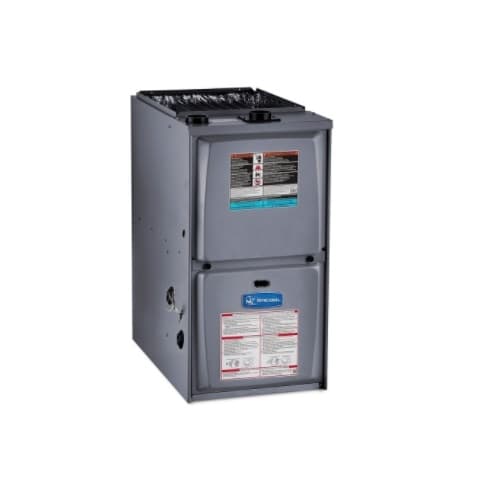

MRCOOL MGD95SE070B4XA Multi-Positional Gas Furnace 95% AFUE

Product Description

The MRCOOL MGD95SE070B4XA is a multi-positional gas furnace with 95% AFUE efficiency. This furnace offers reliable and consistent heating for various spaces. It is designed to conserve energy while running on natural gas. With an aluminized steel heat exchanger and a multi-speed ECM blower motor, this unit efficiently meets heating demands.

• Multi-speed ECM blower motor for effective air circulation.
• Aluminized steel heat exchanger enhances durability.
• Self-diagnostics feature saves the last ten fault codes.

Product Highlights

This gas furnace is suitable for floor-mounted installation and is compatible with an optional LP conversion kit.

Product Information

Standard Information

• Model: MGD95SE070B4XA
• Efficiency: 95% AFUE

Technical Specifications

• Heating Capacity: 66,000 BTU Input / 64,000 BTU Output
• Tonnage: 4 Ton
• Airflow: 1585 CFM
• Fuel Type: Natural Gas
• Blower Motor: Multi-Speed ECM (3/4 HP)
• Ignition: Silicon Nitride
• Heat Exchanger: Aluminized Steel & Stainless Steel
• Vent Connection: 2 inches / 3 inches
• Voltage: 120V
• Max Overcurrent Protection: 15 amps
• Dimensions (WxHxD): 17.5 x 33 x 28.5 inches
• Weight: 144 lbs
• Certifications: AHRI, CSA
• Warranty: 10 Year Parts, Lifetime Heat Exchanger
• AHRI Number: 204085893
• Avg Coverage Area: 1,250 - 1,500 Sq Ft
• Exhaust Pipe: PVC
• Gas Valve: Single Stage
• Configuration: Floor Mounted
• Series: Signature
