Product Description

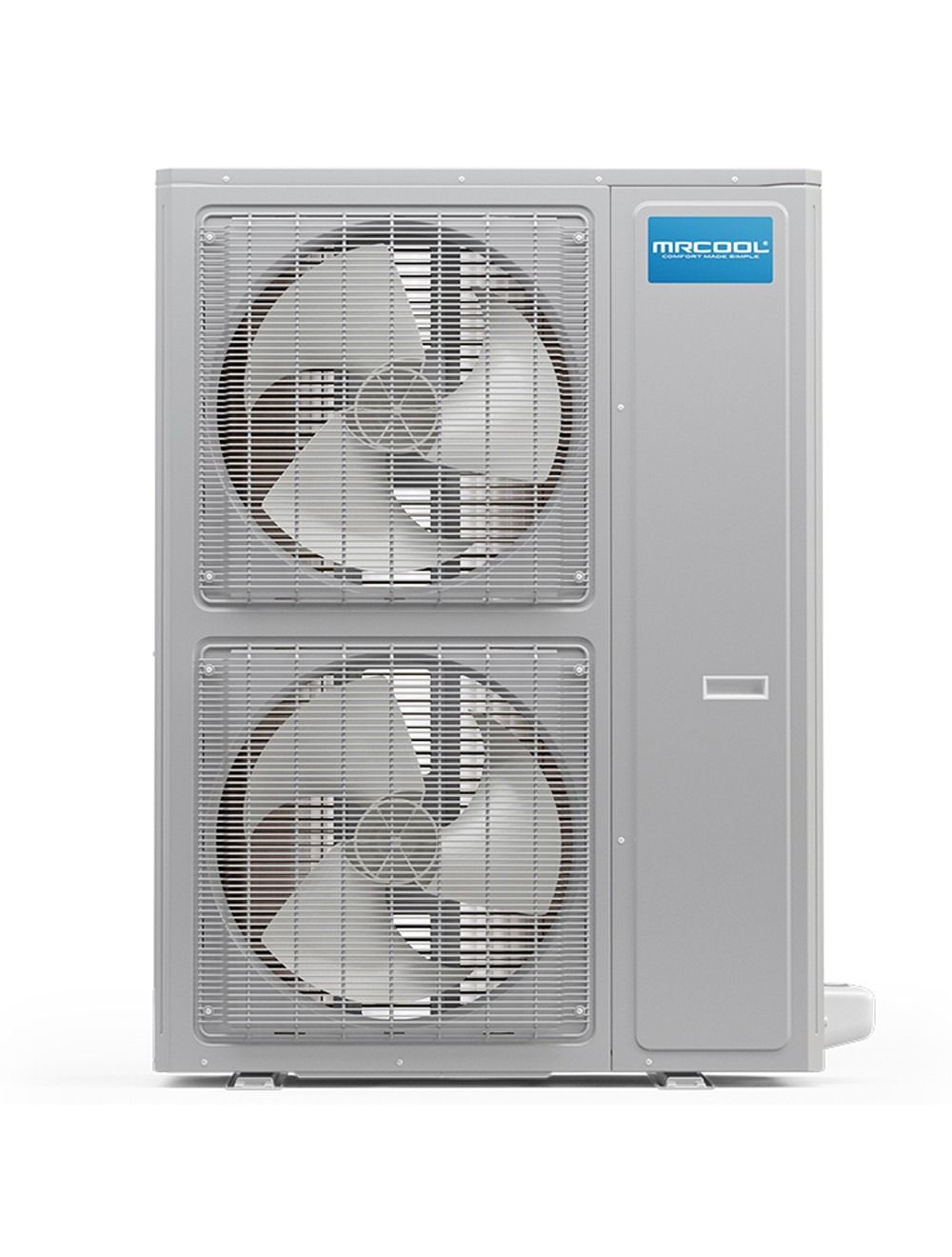

The MRCOOL Universal 4-5 Ton Central Heat Pump System, identified by MPN MDU18048060, offers heating and cooling solutions suitable for both residential and light commercial applications. This system can be easily configured to operate at a four-ton or five-ton capacity using a simple dip switch. Along with its quick installation design, this heat pump is compatible with a variety of third-party air handlers and thermostats.
- Configurable for four-ton or five-ton operation using built-in dip switch settings.
- Compatible with upflow and horizontal configurations.
- Maintains heating capacity even in low-temperature conditions.
Product Highlights
This heat pump features R-410A refrigerant, ensuring efficient operation while providing robust protection with gold fin corrosion resistance.
Product Information
Standard Information
-
Brand: MRCOOL
-
Model Number: MDU18048060
Technical Specifications
-
Tonnage: 4-5 Ton
-
Cooling Capacity (BTU): 48000-60000
-
Heating Capacity (BTU): 54000
-
SEER: 18
-
EER: 11.7
-
HSPF: 10
-
Refrigerant: R410A
-
Input Voltage: 208-230V
-
Max Fuse Breaker (A): 45
-
Min Circuit Ampacity (A): 35
-
Maximum CFM: 1911
-
Coverage Area: Up to 2500 sq. ft.
-
Net Dimensions: 39.37 W x 14.5 D x 53.75 H
-
Net Weight: 203 lbs
-
Decibel Rating: 58 DBA
-
Filter Type: Washable
-
Auxiliary Heater Available: Yes
-
Registered Warranty: 10 Year Limited Warranty
