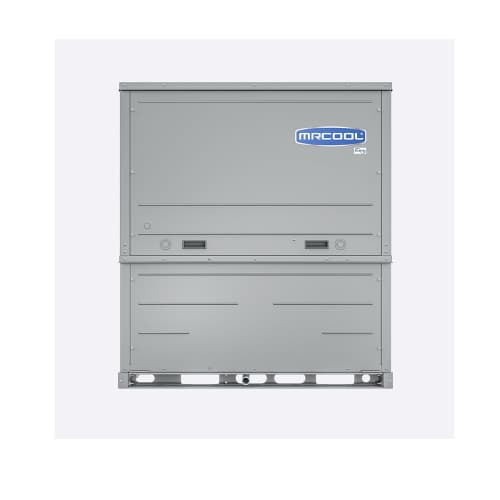

MRCOOL MDPH180604 Universal Series 5 Ton DC Inverter Packaged Heat Pump

Product Description

The MRCOOL Universal Series 5 Ton DC Inverter Packaged Heat Pump, model MDPH180604, is designed for efficient heating and cooling as a ducted unit. This packaged system houses all components in a single outdoor unit for seamless installation. Utilizing a variable-speed DC inverter compressor, it effectively manages temperature while reducing energy consumption. It is suitable for traditional setups and rooftop placements, offering flexible air return options.

• Features a DC Inverter compressor.
• Provides downflow and horizontal airflow configurations.
• Uses environmentally friendly R-410A refrigerant.

Product Highlights

This heat pump stands out for its energy efficiency, reliability, and dual functionality, catering to various installation needs.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MDPH180604

Technical Specifications

• Tonnage: 5 Tons
• Cooling Capacity: 56000 Btu/h
• Heating Capacity: 57000 Btu/h
• SEER2: 17
• EER2: 10.6
• HSPF2: 8.3
• Input Voltage: 208-230 V
• Electrical Phase: 1-Phase
• Cycle: 60 Hz
• Max Overcurrent Protection: 45 amps
• Min Circuit Ampacity: 39.1 A
• Refrigerant Type: R-410A
• Refrigerant Volume: 236.4 oz
• Sound Pressure Level: 68 dB(A)
• Compressor Type: Inverter
• Condenser Fan Motor Type: DC
• Condenser Fan Motor HP: 1
• Air Flow Direction: Downflow, Horizontal
• Airflow Volume: 2700 m3/h
• Filter Type: Washable Aluminum
• Filter Size: 29 5/16 x 13 1/4 x 3/5 in
• Operating Temperature (Cooling): 23 ~ 125 F
• Operating Temperature (Heating): -22 ~ 75.2 F
• Average Coverage Area: 2500 - 3000 sq ft
• Product Height: 50.81 in
• Product Width: 44.62 in
• Product Depth: 44.62 in
• Weight: 650 lbs
• Energy Star Certified: Yes
• Base Warranty: 10 years
