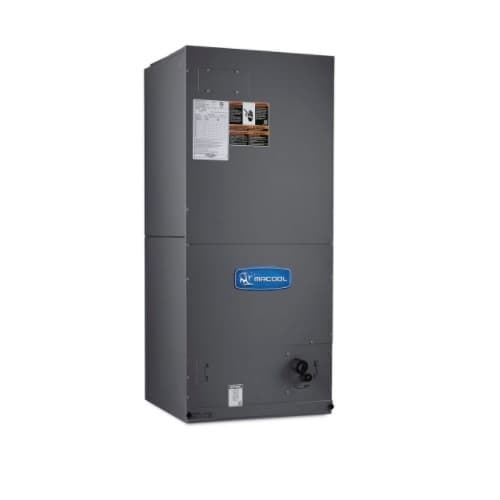

MRCOOL MAHM060ETA Signature 5 Ton Multi-Position Air Handler

Product Description

The MRCOOL MAHM060ETA Signature Series air handler is built for central split systems. This unit features a multi-speed blower motor and is suitable for heat strips up to twenty kilowatts. Corrosion protection technology is applied to the coil for improved durability. The multi-position design allows for various installation options including upflow, horizontal left/right, and counter flow with an additional kit.

• AHRI certified and ETL listed.
• Antimicrobial-treated drain pan resists mold and mildew.
• Foil-faced insulation enhances indoor air quality.

Product Highlights

The air handler is designed for efficiency and longevity, making it ideal for residential and commercial applications.

Product Information

Standard Information

• Model: MAHM060ETA
• Manufacturer: Mr. Cool

Technical Specifications

• Cooling Capacity: 5 Ton
• Air Flow Direction: Downflow
• Blower Motor: Multi Speed
• Electrical Phase: 1-Phase
• Input Voltage: 240
• Max Overcurrent Protection: 15 amps
• Heat Strip Compatibility: Up to 20 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• System Application Type: Central Split Systems
• Mounting Type: Floor Mounted
• Product Length: 19.5 inches
• Product Width: 21.5 inches
• Product Height: 59.75 inches
• Weight: 186 lbs
• Warranty: 10 Year Parts
