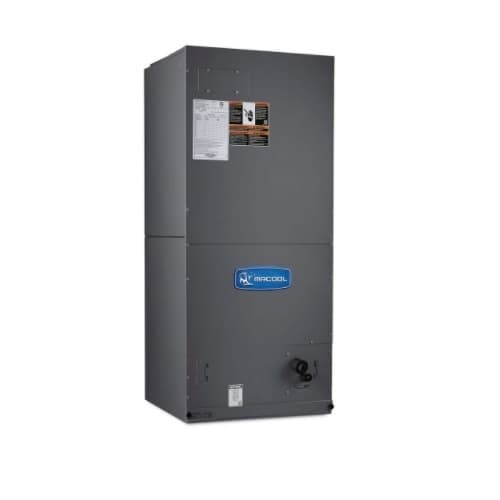

MRCOOL MAHM048ETA Signature Series Air Handler 4 Ton

Product Description

The MRCOOL Signature Series Air Handler MAHM048ETA is a reliable multi-position unit designed for efficient heating and cooling. It features an electronically commutated motor (ECM) that ensures consistent airflow throughout the space. The construction includes durable galvanized steel with a baked polyester finish for longevity and performance.

• Multi-position design for flexible installation options
• ECM motor for efficient and consistent airflow
• Includes factory-installed TXV and foil-faced insulation

Product Highlights

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MAHM048ETA

Technical Specifications

• Cooling Capacity: 4 Ton
• Total BTU: 4,800 BTU
• Heating Capacity: 48,000 BTU/H
• Voltage: 208/230 Volts
• Electrical Phase: 1 Phase
• Hertz: 60 Hz
• Refrigerant Type: R-410A
• Air Flow (CFM): 1,600
• Horsepower: 1 hp
• Product Dimensions: 19.5 inches x 21.5 inches x 55 inches
• Weight: 186 lbs
• Fan Speeds: Variable Speed
• Heat Strip Compatibility: Up to 20 kW
• Air Flow Direction: Downflow
• Certificate: ETL Listed
• SEER: 16
