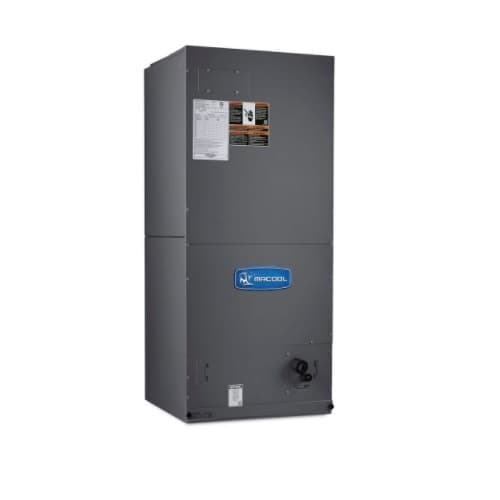

MRCOOL MAHM042CTA Signature 42K BTU 3.5 Ton 14 SEER Split System Air Handler - Multiposition MAHM042CTA

Product Description

The MRCOOL Signature MAHM042CTA is a multi-position air handler designed for split systems. This unit supports various installation configurations, including upflow, horizontal left, or horizontal right. It includes a permanent split capacitor motor for reliable airflow. The unit features a durable galvanized steel cabinet and has foil-faced insulation to enhance indoor air quality.

• Cooling capacity of 42000 BTU
• Utilizes a PSC blower motor with multiple speed options
• Compatible with auxiliary heat kits

Product Highlights

The MRCOOL MAHM042CTA provides efficient cooling for residential applications with its diverse installation options and robust construction.

Product Information

Standard Information

• Brand: MRCOOL
• Model: MAHM042CTA

Technical Specifications

• Tonnage: 3 1/2
• Cooling Capacity: 3.5 Ton
• SEER: Up to 14.5
• Air Flow Direction: Downflow, Horizontal, Upflow
• Voltage: 208/230
• Electrical Phase: 1-Phase
• Max Fuse Breaker: 15 amps
• Min Circuit Ampacity: 5 amps
• Refrigerant Type: R-410A
• Blower Motor Type: PSC
• Filter Size: 18x20
• Auxiliary Heater Compatibility: Up to 15 kW
• Dimensions: 19.5 inches D x 53.63 inches H x 21.5 inches W
• Weight: 168 lbs
• Configuration: Floor Mounted
• ETL Listed: Yes
• AHRI Certified: Yes
