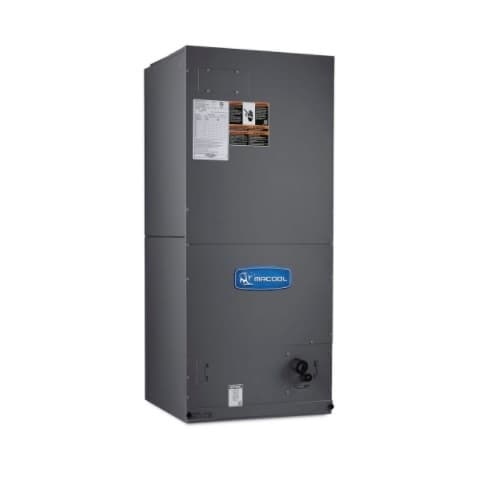

MRCOOL MAHM036ETA MRCOOL Signature Series 3 Ton Multi-Position Air Handler MAHM036ETA

Product Description

The MRCOOL Signature Series Multi-Position Air Handler MAHM036ETA is suitable for central split systems.

• Cooling capacity of 3 tons.
• Compatible with heat strips up to 15 kW.
• Multi-speed blower motor for efficient airflow.

Product Highlights

This air handler features an aluminum coil and rust-resistant qualities. Its design incorporates foil-faced insulation and an antimicrobial-treated drain pan. The unit supports multi-position installation, including upflow, horizontal left/right, and counter flow with a kit.

Product Information

Standard Information

• Model: MAHM036ETA
• Manufacturer: MRCOOL

Technical Specifications

• Cooling Capacity: 3 Ton
• Electrical Phase: 1-Phase
• Voltage: 240
• Max Overcurrent Protection: 15 amps
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Dimensions: 19.5 inches x 21.5 inches x 53.63 inches
• Weight: 163 lbs
• Warranty: 10 Year Parts
• System Application Type: Central Split Systems
