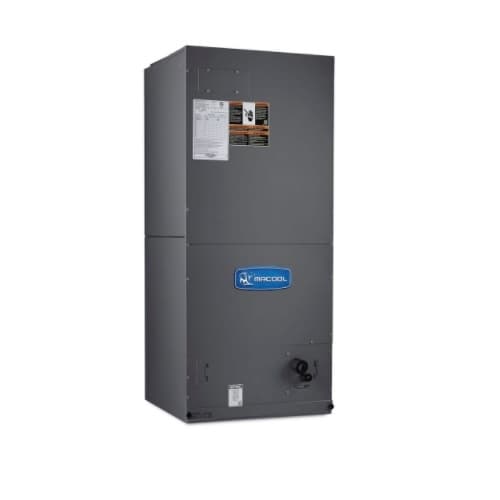

MRCOOL MAHM024CTA Signature MAHM024CTA 2 Ton Multi-Position Air Handler

Product Description

The MRCOOL Signature MAHM024CTA is a two-ton multi-speed air handler designed for use in central split systems. This versatile unit features a strong galvanized steel cabinet finished with a baked polyester coating for enhanced durability. The coil is constructed from aluminum alloy, ensuring effective heat transfer. It supports auxiliary heat kits from five to twenty kilowatts. This air handler is approved for mobile homes and manufactured housing and can be installed in upflow, horizontal left, or horizontal right orientations.

• Multi-position installation options for diverse configurations.
• Antimicrobial-treated SMC polymer drain pan included.
• Foil-faced insulation for temperature retention.

Product Highlights

This air handler is suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: MAHM024CTA

Technical Specifications

• Model: MAHM024CTA
• UPC: 810512031085
• Product Height: 45.5 inches
• Product Length: 22 inches
• Product Width: 18.5 inches
• Configuration: Floor Mounted
• Air Flow Direction: Downflow
• Blower Motor: Multi-Speed
• Cooling Capacity: 2 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 10 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Max Overcurrent Protection: 15 amps
• Weight: 127 lbs
• Series: Signature
• System Application Type: Central Split Systems
• Voltage: 240
• Warranty: 10 Year Parts
• Dimensions: 16.50 inches x 18.50 inches x 45.50 inches
• Color: Gray
• Cooling Capacity (BTU): 18000
• HSPF: 8.1
• Motor Type: PSC
• Seasonal Energy Efficiency Ratio: 16
• Voltage (volts): 0.9
