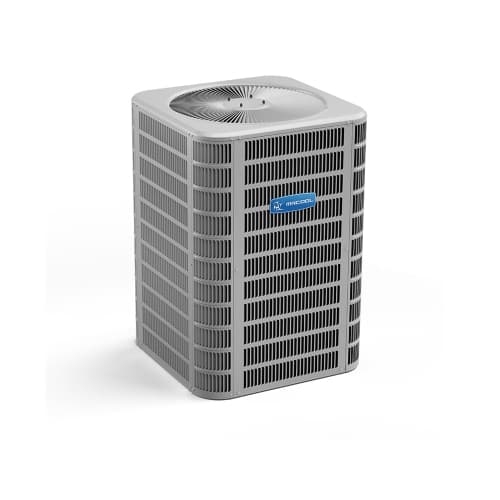

MRCOOL MAC17024A Signature Central Air Conditioner Condenser

Product Description

The MRCOOL Signature Central Air Conditioner Condenser MAC17024A is a reliable cooling solution designed for central split systems. This model operates on 208-230 voltage and uses R-410A refrigerant for optimal efficiency. With a Seasonal Energy Efficiency Ratio (SEER) rating of up to 17 and a SEER2 rating of 14.3, it provides effective cooling when paired with compatible units.

• Cools efficiently using R-410A refrigerant.
• Single-stage compressor for reliable operation.
• ETL and AHRI certified for performance assurance.

Product Highlights

Designed for residential and commercial use, this air conditioner condenser offers the necessary power for effective cooling in various environments.

Product Information

Standard Information

• Model: MAC17024A
• UPC: 840255553155

Technical Specifications

• Cooling Capacity: 2 Ton
• Cooling Efficiency (SEER2): 14.3
• SEER: 17
• Voltage: 208-230V
• Electrical Phase: 1-Phase
• Cycle: 60Hz
• Refrigerant Type: R-410A
• Refrigerant Volume: 82 oz
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Max Overcurrent Protection: 25 amps
• Max Fuse Breaker: 20
• Min Circuit Ampacity: 15.4
• Decibel Rating: 75 dBA
• Product Height: 37.25 inches
• Product Length: 28.25 inches
• Product Width: 28.25 inches
• Weight: 170 lbs
• Energy Star Certified: yes
• AHRI Certified: yes
• System Application Type: Central Split Systems
• Compressor: Single Stage
• Series: Signature
• Region Compatibility: Nationwide
