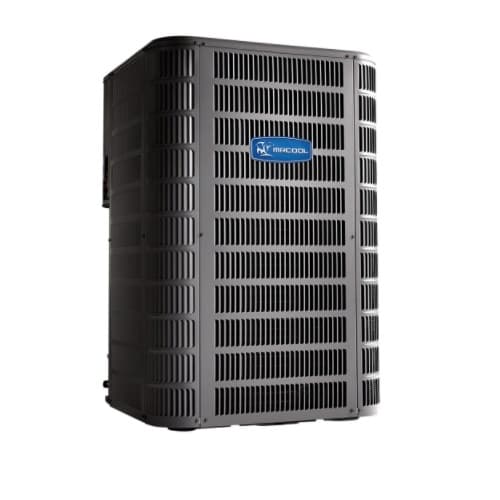

MRCOOL MAC16060A 5 Ton 16 SEER AC Condenser

Product Description

The MRCOOL MAC16060A is a five-ton air conditioner condenser made for central split systems. It is pre-charged with R-410A refrigerant for installations up to fifteen feet. This unit is designed with an all-aluminum coil and lanced fins for improved heat transfer efficiency.

• Factory-installed high-pressure switch.
• Full metal louvered construction for coil protection.
• Corner-mounted controls facilitate quick servicing.

Product Highlights

This product provides reliable cooling and excellent efficiency in various climates.

Product Information

Standard Information

• Brand: MRCOOL
• Model: MAC16060A

Technical Specifications

• Cooling Capacity: 5 Ton
• Cooling Efficiency: 16 SEER
• Voltage: 240
• Electrical Phase: 1-Phase
• Refrigerant: R-410A
• Compressor: Single Stage
• Application Type: Central Split Systems
• Dimensions: 32.25 inches L x 43 inches H x 32.25 inches W
• Weight: 284 lbs
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Line Set Connection Type: Sweat
• Max Overcurrent Protection: 50 amps
• Average Coverage Area: 2500 - 3000 Sq Ft
• Series: Signature
• Region Compatibility: North, Southeast
