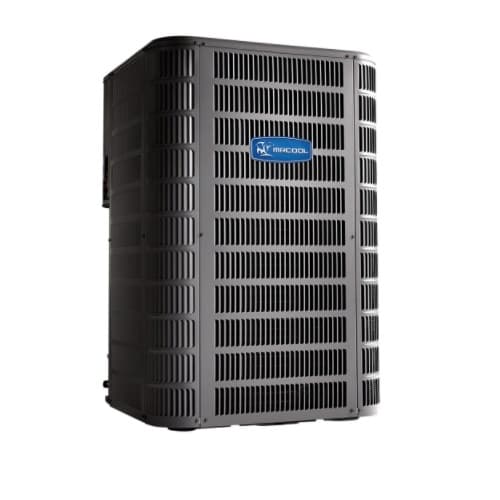

MRCOOL MAC16036A 3 Ton 16 SEER AC Condenser

Product Description

The MRCOOL MAC16036A is an air conditioner condenser tailored for central split systems. This unit effectively cools your space and uses R-410A refrigerant. The MAC16036A achieves a seasonal energy efficiency rating of up to 16 SEER when connected with compatible MRCOOL products.

• Utilizes CoolGuard total corrosion protection technology
• Features a factory-installed high-pressure switch
• AHRI certified and ETL/ETLC approved

Product Highlights

This condenser includes a robust all-aluminum coil for enhanced durability. It is designed for easy installation with electrical panels that are easily accessible. The unit is pre-wired and comes charged for up to fifteen feet of line set.

Product Information

Standard Information

• Manufacturer: MRCOOL
• Model: MAC16036A

Technical Specifications

• Cooling Capacity: 3 Ton
• Cooling Efficiency: 16 SEER
• Voltage: 240
• Compressor: Single Stage
• Refrigerant: R-410A
• Dimensions (L x W x H): 28.25 inches x 28.25 inches x 37 inches
• Weight: 181 lbs
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Max Overcurrent Protection: 30 amps
