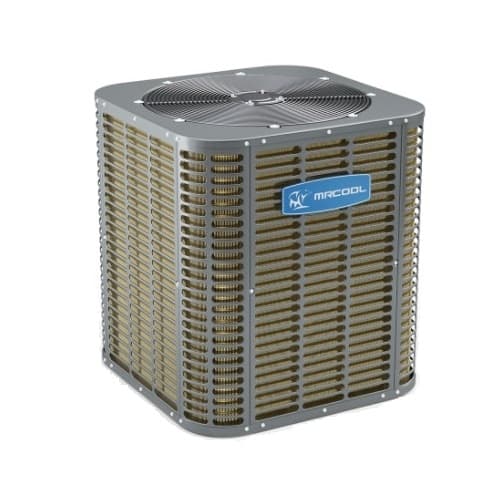

MRCOOL HHP14060 MRCOOL ProDirect 5 Ton 14 SEER Heat Pump Condenser System

Product Description

The MRCOOL ProDirect 5 Ton 14 SEER Heat Pump Condenser, model HHP14060, is built for efficient heating and cooling systems. This condenser works with R-410A refrigerant and includes a scroll compressor for effective refrigerant management.

• Utilizes a scroll compressor for refrigerant pressurization.
• Constructed with a galvanized steel cabinet for protection against the elements.
• Gold Fin coating on coils to prevent corrosion.

Product Highlights

The condenser is designed for central split system applications and is suitable for various environments.

Product Information

Standard Information

• Model: HHP14060
• UPC: 810063861889

Technical Specifications

• Product Height: 33 inches
• Product Length: 29 inches
• Product Width: 29 inches
• Weight: 233 lbs
• Cooling Capacity: 5 Ton
• Cooling Efficiency: 14 SEER
• Primary Heating Capacity: 55,001 - 60,000 BTU
• Heat Pump Efficiency: 8.3 HSPF
• Voltage: 240
• Electrical Phase: 1-Phase
• Refrigerant: R-410A
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Max Overcurrent Protection: 50 amps
• System Application Type: Central Split Systems
• Compressor: Single Stage
• Region Compatibility: Nationwide
• Certifications: AHRI Certified & ETL listed
