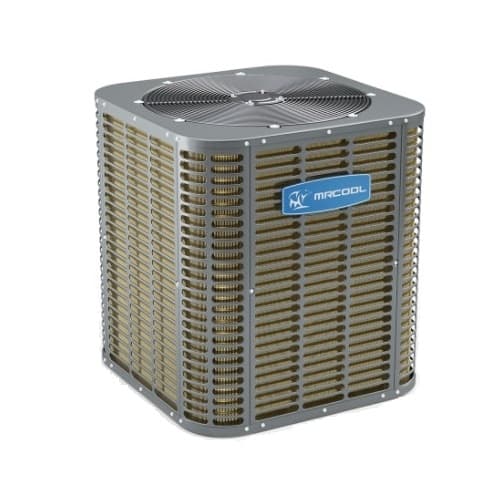

MRCOOL HHP14042 MRCOOL ProDirect 3.5 Ton 14 SEER Heat Pump Condenser HHP14042 System

Product Description

The MRCOOL ProDirect 3.5 Ton 14 SEER Heat Pump Condenser, MPN HHP14042, is suitable for use in central split systems. This heat pump condenser operates efficiently with a cooling capacity of forty thousand five hundred BTU and is equipped with a scroll compressor and piston flow control device to effectively manage refrigerant flow. The unit is built with a galvanized steel cabinet that incorporates a Gold Fin coating, providing corrosion resistance to ensure durability.

• 3.5 Ton cooling capacity
• 14 SEER efficiency
• Designed for R-410A refrigerant

Product Highlights

This model is ETL listed and AHRI certified, reflecting its compliance with industry standards. When registered online, it comes with a ten-year warranty, covering parts and compressor.

Product Information

Standard Information

• Product Type: Heat Pump Condenser
• Warranty: 10 Years

Technical Specifications

• Model: HHP14042
• Cooling Capacity: 40,500 BTU
• Heating Capacity: 40,000 BTU
• SEER: 14
• EER: 11.7
• HSPF: 8.3
• Refrigerant Type: R-410A
• Voltage: 230 V
• Electrical Phase: 1-Phase
• Max Overcurrent Protection: 35 amps
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Min Ambient Heat: 20 Degrees F
• Compressor Motor Type: Scroll
• Refrigerant Volume: 148.15 oz
• Net Weight: 207 lbs
• Gross Weight: 216 lbs
• Product Height: 33 inches
• Product Length: 29 inches
• Product Width: 29 inches
• Certification: AHRI Certified & ETL listed
