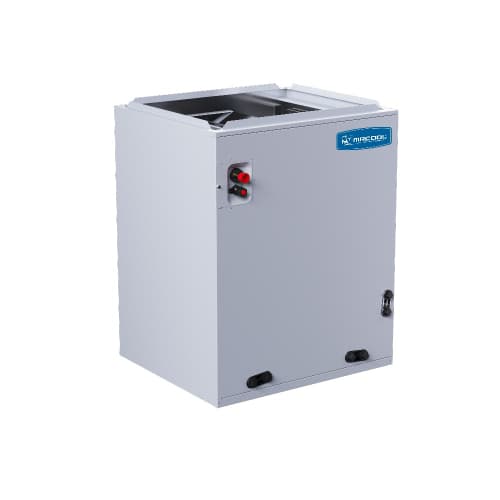

MRCOOL HCMP3642CFOA MRCOOL ProDirect Series A Coil 36k-42k BTU HCMP3642CFOA

Product Description

The MRCOOL ProDirect Series A Coil, model HCMP3642CFOA, improves HVAC system efficiency. It works with R410A and R22 refrigerants. The coil has aluminum fins and internally grooved copper tubing that aids in effective heat transfer. This model comes with a thermally insulated cabinet featuring foil-faced insulation, which helps maintain temperature consistency. The unit allows multi-positional installation, making it adaptable for various setups. Two drain pans are included to streamline maintenance activities. It is fitted with a 3/8-inch liquid line and a 7/8-inch suction line.

• Compatible with R410A and R22 refrigerants.
• Features aluminum fins and internally grooved copper tubing.
• Equipped with two drain pans for easy maintenance.

Product Highlights

This coil is UL-certified and designed to support efficient cooling across different applications.

Product Information

Standard Information

• Country of Origin: Not specified
• UPC: 8.40256E+11

Technical Specifications

• Installation: Multiposition for flexible setup
• Evaporator Coil Tube Material: Aluminum
• Evaporator Coil Tube Size: 9/32 inches
• Supply Duct Size: 19 1/2 inches
• Tonnage: 3 - 3.5 Ton
• Cooling Capacity: 36,000/42,000 BTU
• Upflow CFM: 1575
• Dimensions: 26 inches high by 21 inches wide
